Sturdy Structure and Stable Operation
The press - roller supports of the front - hanging plate and rear - large box are made by precision casting. This manufacturing method ensures that the thickness - setting roller rotates more stably and reliably, which is crucial for maintaining a consistent sanding thickness.
The machine's body is constructed by welding profiles and then undergoes artificial aging treatment. This process significantly improves the stability of the machine, making it less prone to deformation. As a result, the sander operates more securely, smoothly, and with greater reliability during the sanding process.
High - Precision Lifting Mechanism
A servo motor is used for the lifting mechanism, enabling an outstanding lifting precision of 0.01 millimeters. This level of precision is comparable to that of metal - processing machine tools, allowing for extremely accurate control over the sanding depth. Additionally, the height of the sanding roller is displayed by a dial indicator, and the lifting accuracy can be precisely adjusted to 0.01 millimeters, further enhancing the precision of the sanding operation.
Versatile Speed Adjustment for Different Materials
The thickness - setting roller features variable - frequency speed regulation. This allows the sander to be adaptable to sanding the surfaces of veneered panels and various painted surfaces. Whether it's a smooth veneer or a painted surface with different textures, the sander can adjust its speed to achieve the best sanding effect.
Superior Sanding for Painted Surfaces

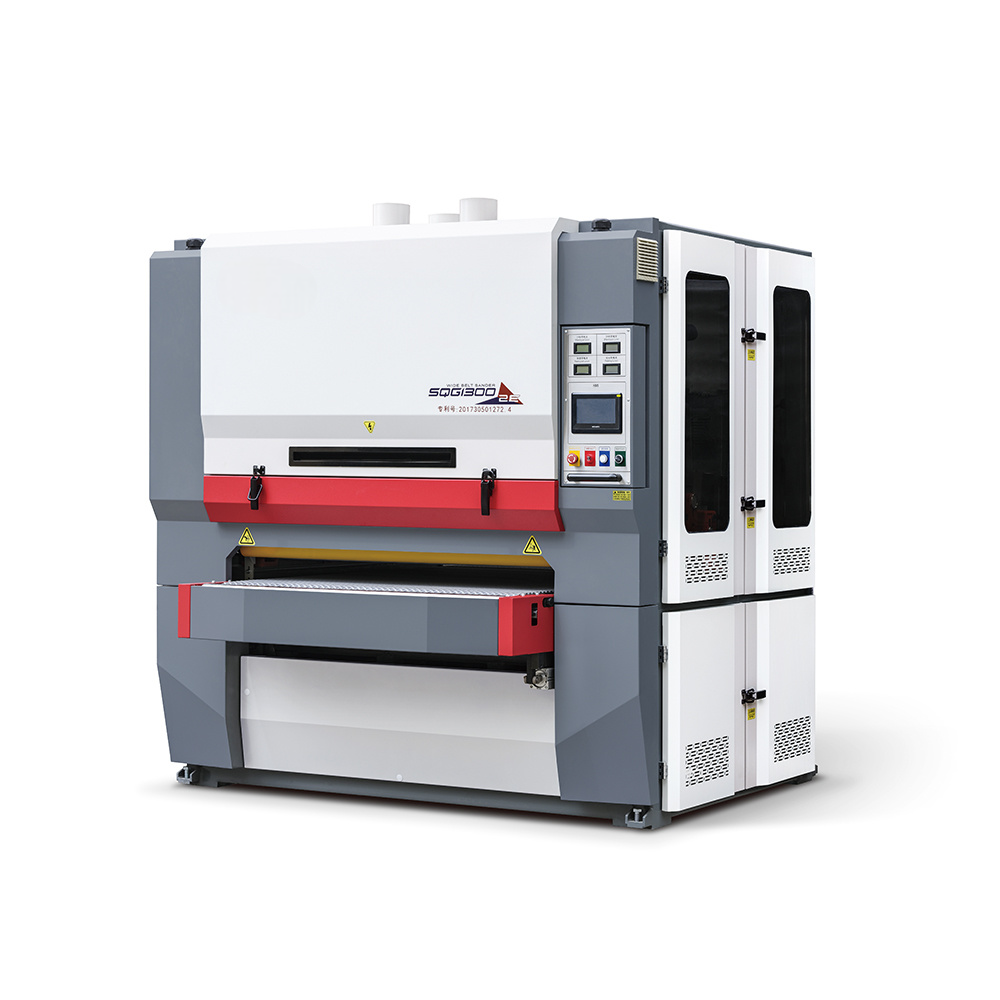

Thanks to its special parameter design, the SQG1300 - 2E2 can achieve a more exquisite sanding effect on the surfaces of primed panels. It is suitable for sanding boards with different - hardness paints. This versatility makes it an ideal choice for woodworking projects that require high - quality surface finishing on painted materials.
Reliable Electrical Components
All electrical components of the sander are selected from internationally renowned brands. This ensures the stable operation of the equipment, reducing the risk of electrical failures and downtime during the sanding process.
| Parameter | Details |
|---|---|
| Workpiece Thickness | 3 - 110mm |
| Workpiece Length | >270mm |
| Workpiece Width | 60 - 1300mm |
| Sanding Belt Linear Speed | 3 - 12m/s |
| Sanding Belt Size (Width x Circumference) | 1330x2200mm |
| Conveyor Belt Size (Width x Circumference) | 1300x4470mm |
| Feeding Variable - Frequency Speed | 6 - 30m/min |
| Front Sanding Frame Motor Power | 15kW |
| Rear Sanding Frame Motor Power | 15kW |
| Conveyor Device Motor Power | 4kW |
| Lifting Drive Motor Power | 0.75kW |
| Brush - light Roller Motor Power | 0.37kW |
| Compressed Air Working Pressure | 0.55MPa |
| Compressed Air Consumption | 1.5m³/min |
| Optional Dust - Collection Device Air Volume | 11000m³/h |
| Optional Dust - Collection Device Static Pressure | 1600Pa |
| Optional Dust - Collection Device Pipeline Average Wind Speed | 25m/s |
