Manual hot press operation steps:
1. Place the sample into the mold and tighten the screw;
2. Open the thermostat, press the SET button to select the set temperature value, then press the+- button to change the size of the control temperature value, and press the CAL button to exit after confirmation;
3. The mold starts to heat up until it reaches the temperature we set, generally not exceeding 300 ℃;
4. Tighten the oil drain valve, shake the pressure lever to start pressurizing, and pressurize to the required pressure;
5. Maintain pressure for a period of time;
6. Set the heating temperature of the thermostat to 0 and stop heating;
7. Turn on the water cooler and quickly cool down the heating plate to room temperature, or naturally cool down to room temperature;
8. Release the pressure from the tablet press and remove the sample from the press

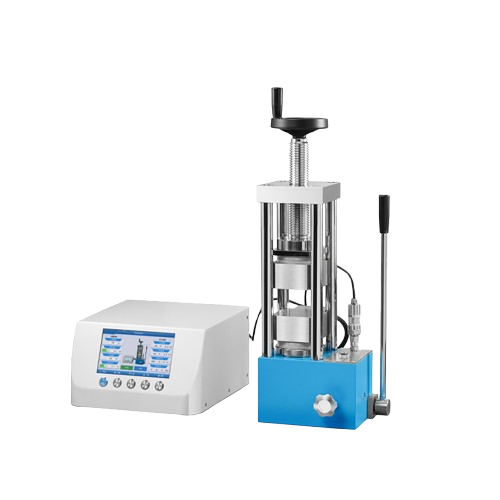

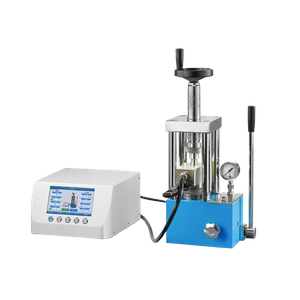

| Parameter | Details |
|---|
| Instrument Model | JCH - 600CG |
| Pressure Range | 0 - 24T (0 - 34MPa)
(Smaller pressure, longer lifespan) |
| Piston Diameter | Chrome - plated Cylinder Φ95mm (d)
(Larger cylinder, greater pressure) |
| Temperature Controller Range | Room temperature - 600.0°C |
| Mold Heating Temperature | Room temperature - 500.0°C |
| Temperature Control Accuracy | 0.1°C |
| Heat Insulation Method | Imported heat insulation plate + water - cooled heat insulation plate [Water - cooled chiller standard] |
| Cooling Method | Water - cooled rapid cooling [Water - cooled chiller optional] |
| Mold Dimensions | Double - plate heating 100×100mm (M×N) |
| Main Unit Dimensions | 245×175×500mm (K×P×H) |
| Overall Dimensions | 500×175×500mm (L×W×H) |
| Power Supply | 600 W (220V/110V customizable) |
| Main Unit Weight | 60 Kg |
