Machine Features:

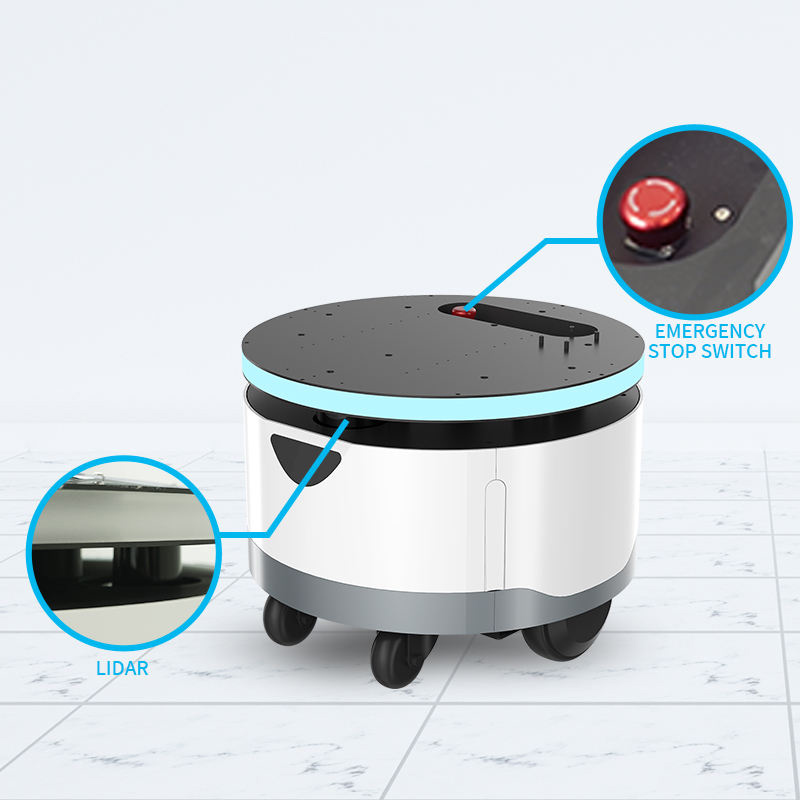

1: Precise LiDAR + V-SLAM Navigation
Achieves centimeter-level mapping accuracy (± 5 cm) using LiDAR scanning and visual fusion. Supports real-time map creation, virtual wall editing, and autonomous indoor navigation.
2: Intelligent Autonomous Operation
Performs fully automatic navigation, path planning, and obstacle avoidance. When power drops below a threshold, it autonomously returns to the charging station—no manual intervention required.
3: Cloud Deployment & Remote Debugging
Supports cloud-based map construction and virtual boundary configuration, enabling remote deployment, monitoring, and updates across multiple devices.

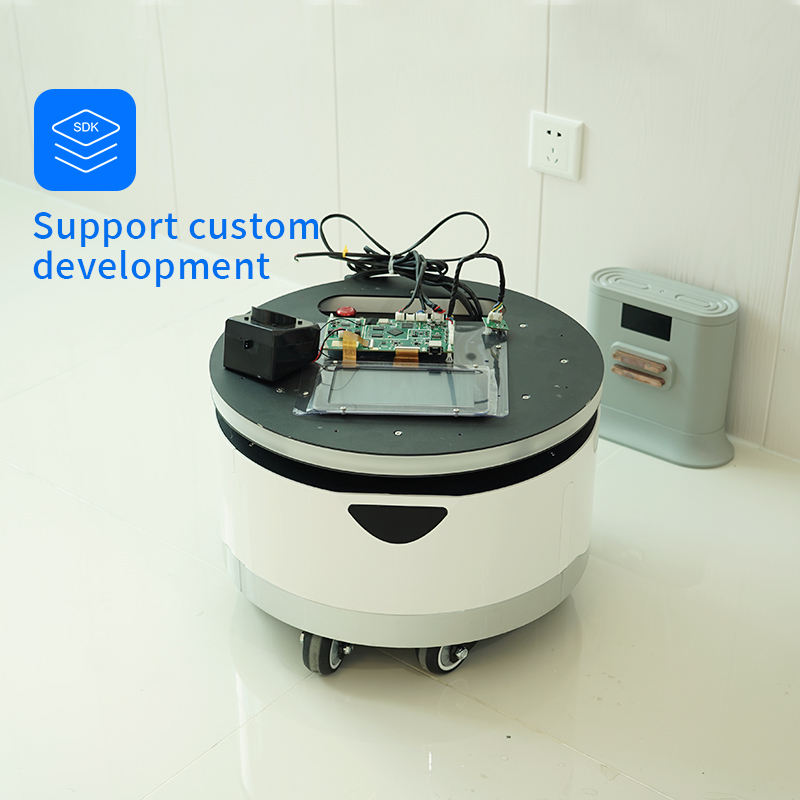

4: Open SDK & Secondary Development
Provides a standard development interface (SDK) for users to customize control logic, navigation behavior, or data integration with third-party applications.
5: Powerful Dual-Band Connectivity
Features 2.4 G / 5 G Wi-Fi and Bluetooth 4.1 for fast and stable wireless communication, enabling real-time data synchronization with cloud servers or robot networks.

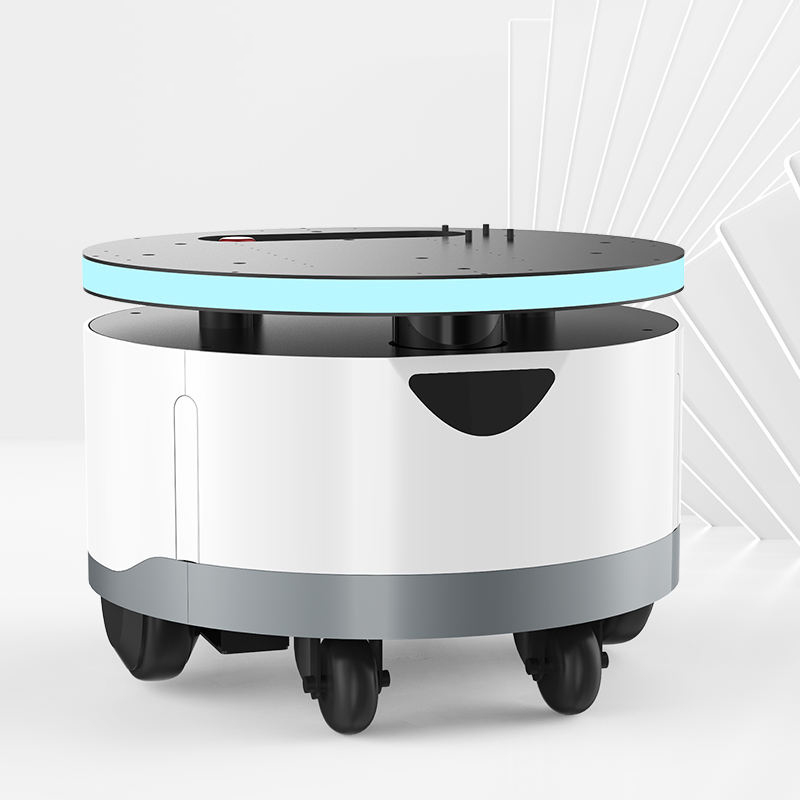

6: Modular & Scalable Design
Compact 450 mm chassis with universal mounting surface for various upper modules — perfect for delivery robots, inspection bots, and humanoid mobile bases.
Products Specification:
| Item | Details |
| Product Type | Autonomous Mobile AGV / Robot Chassis |
| Application | Logistics, hotel delivery, R&D, manufacturing, education, and humanoid robot platforms |
| Material | Sheet-metal structure |
| Operating System | Linux-based system (supports ROS SDK) |
| Processor | Quad-core Cortex-A7 RK3128 chip, 1.2 GHz |
| Memory & Storage | 1 GB LPDDR3 RAM + 8 GB NAND Flash |
| Connectivity | Dual-band 2.4 G / 5 G Wi-Fi + BT 4.1 |
| Navigation Method | LiDAR + V-SLAM hybrid navigation |
| Positioning Accuracy | ± 5 cm |
| Autonomous Functions | Navigation / Obstacle Avoidance / Auto Charging / Cloud Mapping |
| Power Supply | Battery powered |
| Rated Power Consumption | 45 W |
| Current Consumption | 1.3 A |
| Battery Life | ≈ 6 h continuous operation |
| Dimensions (L × W × H) | 450 × 450 × 317 mm |
| Table Size | 450 × 450 mm |
| Net Weight | 35 kg |
| Cloud Support | Remote deployment + virtual wall editing + real-time debugging |
| SDK / Development | Open SDK / Secondary Development Supported |
| Warranty | 1 Year |
Products Pictures:
Machine Features:
1: Precise LiDAR + V-SLAM Navigation
Achieves centimeter-level mapping accuracy (± 5 cm) using LiDAR scanning and visual fusion. Supports real-time map creation, virtual wall editing, and autonomous indoor navigation.
2: Intelligent Autonomous Operation
Performs fully automatic navigation, path planning, and obstacle avoidance. When power drops below a threshold, it autonomously returns to the charging station—no manual intervention required.
3: Cloud Deployment & Remote Debugging
Supports cloud-based map construction and virtual boundary configuration, enabling remote deployment, monitoring, and updates across multiple devices.
4: Open SDK & Secondary Development
Provides a standard development interface (SDK) for users to customize control logic, navigation behavior, or data integration with third-party applications.
5: Powerful Dual-Band Connectivity
Features 2.4 G / 5 G Wi-Fi and Bluetooth 4.1 for fast and stable wireless communication, enabling real-time data synchronization with cloud servers or robot networks.
6: Modular & Scalable Design
Compact 450 mm chassis with universal mounting surface for various upper modules — perfect for delivery robots, inspection bots, and humanoid mobile bases.
Products Specification:
| Item | Details |
| Product Type | Autonomous Mobile AGV / Robot Chassis |
| Application | Logistics, hotel delivery, R&D, manufacturing, education, and humanoid robot platforms |
| Material | Sheet-metal structure |
| Operating System | Linux-based system (supports ROS SDK) |
| Processor | Quad-core Cortex-A7 RK3128 chip, 1.2 GHz |
| Memory & Storage | 1 GB LPDDR3 RAM + 8 GB NAND Flash |
| Connectivity | Dual-band 2.4 G / 5 G Wi-Fi + BT 4.1 |
| Navigation Method | LiDAR + V-SLAM hybrid navigation |
| Positioning Accuracy | ± 5 cm |
| Autonomous Functions | Navigation / Obstacle Avoidance / Auto Charging / Cloud Mapping |
| Power Supply | Battery powered |
| Rated Power Consumption | 45 W |
| Current Consumption | 1.3 A |
| Battery Life | ≈ 6 h continuous operation |
| Dimensions (L × W × H) | 450 × 450 × 317 mm |
| Table Size | 450 × 450 mm |
| Net Weight | 35 kg |
| Cloud Support | Remote deployment + virtual wall editing + real-time debugging |
| SDK / Development | Open SDK / Secondary Development Supported |
| Warranty | 1 Year |
Products Pictures:
