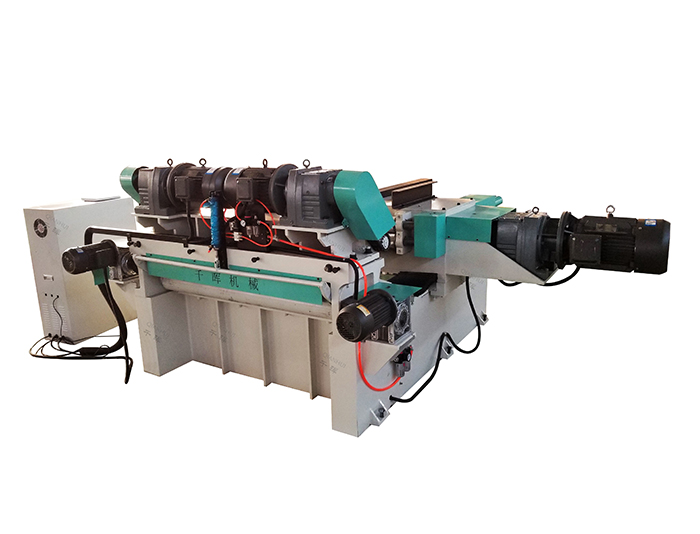

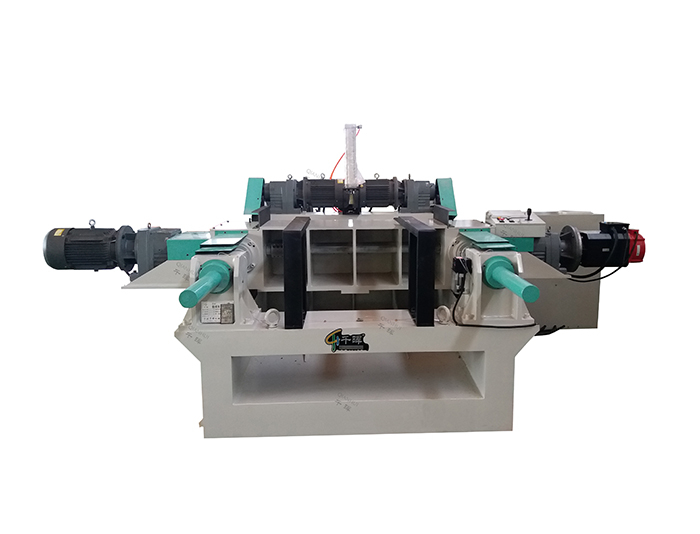

BX1500A-8 Heavy-duty Cardless Rotary Cutting Machine

Technical Specifications

Machine Features

1. Stable Structure for Superior Veneer Quality

• The innovative design with dual - box forward and backward movement for feeding while keeping the single box and cutter head stationary ensures smooth operation. This stability significantly improves the quality of the veneer by minimizing vibrations and maintaining the precision of the cutting process.

2. High - Quality Cutter Head

• The cutter head is made of cast iron, which offers excellent resistance to deformation. This results in higher precision during cutting and a longer service life, reducing the need for frequent replacements and ensuring consistent product quality.

3. Robust Body Construction

• The main body of the machine is welded with thickened steel plates, contributing to its substantial weight of 7500kg. This robust construction makes the machine extremely sturdy, stable, and durable, capable of withstanding the rigors of continuous use in a production environment.

4. Powerful Drive System

• Equipped with a large - capacity motor and an advanced control system, including an 11kw servo feeding motor, a 15kw servo driver, and roller motors with a total power of 30kw, the machine provides strong power output. This ensures reliable and efficient operation even when processing hard woods.

5. Adjustable Cutting Speed

• The rollers are controlled by enlarged frequency converters, allowing the cutting speed to be adjusted within the range of 30 - 90m/min. This flexibility in speed settings enables operators to optimize the cutting process according to the specific requirements of different wood types and veneer thicknesses, thereby increasing production efficiency.

6. Versatile Application

• Thanks to its structural features and powerful performance, this machine is highly suitable for rotary cutting hard woods such as eucalyptus and rubber wood, as well as for producing thick veneers. It can meet the diverse needs of the veneer industry, whether for small - scale workshops or large - scale production lines.
