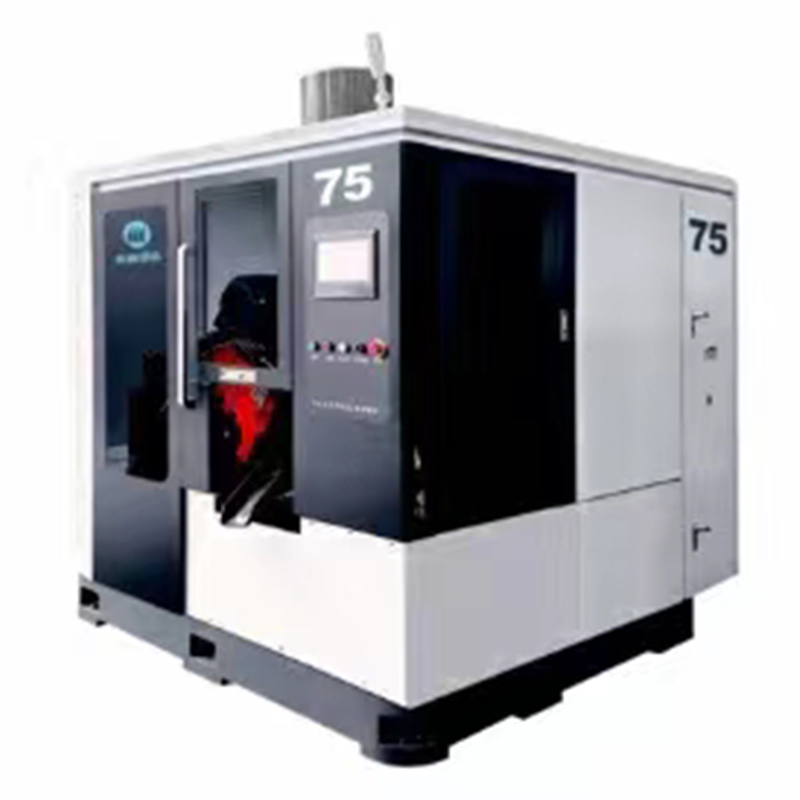

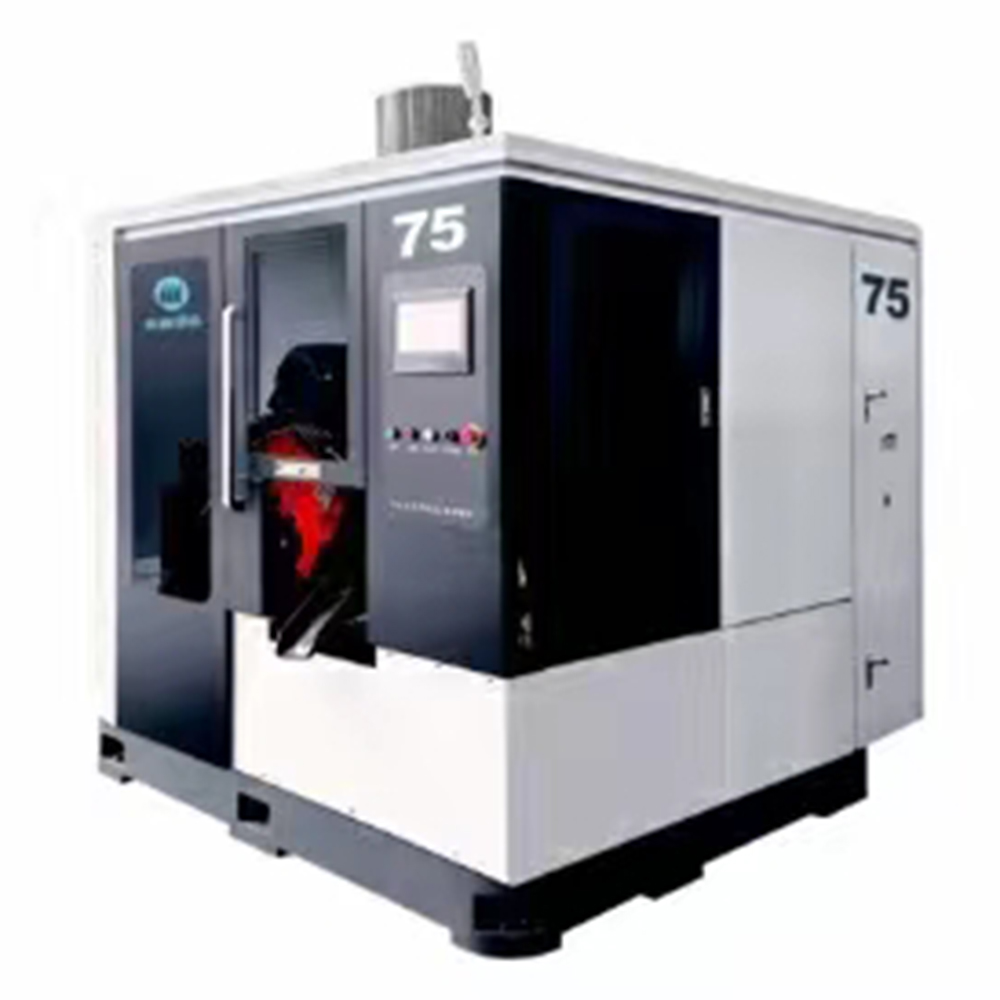

C75 CNC Carbide Circular Sawing Machine

The C75 CNC Carbide Circular Sawing Machine features a large human-machine interface that offers both manual and automatic operation modes. It uses a color touchscreen for easy control. Equipped with a high-quality gearbox for long lifespan. The two-point saw blade clamping eliminates blade vibration, extending its service life. Both material feed and blade feed are under servo control, ensuring stable and precise operation. It includes functions for automatic feeding, scrap sorting, chip clearing, and chip removal.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Specification

Type	C75
Power source	380V 50Hz or on request
Capacity (mm)	Round bar/tube
Capacity (mm)	Square bar/tube
Residual bar/tube length (mm)	55～55+πcutting length
Bar/tube feed length per time (mm)	5～800
Bar/tube feed tolerance(mm)	+/-0.1
TCT saw bladesize (Pinhole)(mm)	285232(63114)
Total motor power output (KW)	9.7
Spindle speed(rpm)	22～170
Bar/tube feed	Servo
Blade feed	Servo
Material feed fixture	Hydraulic
Main fixture	Hydraulic
Floor space(LWH)(mm)	210022502300

Products Configuration

Optional Configurations:

Oil mist collector

Oil mist cooling device

Cluster type conveyor for material feeding

Conveyor for material tilting after cutting

Plate-chain type chip conveyor

Products Features

1: Adopts large size of human machine interface, provides two operation mode, manual modeand automatic mode, touch the color screen for operation, easy to control

2: Quality gear box with high quality, long lifespan

3: Two points for saw blade clamping, vibration of saw blade eliminated, its service life extended

4: Both material feed and blade feed under servo control, stable working , precise feeding

5: Adopts functions of automatic feeding, scrap sorting, chip clearing , chip removal

Products Pictures
