| Model | Inner diameter | Outer diameter | Length |
| LM3 | 3mm | 7mm | 10mm |
| LM4 | 4mm | 8mm | 12mm |
| LM5UU | 5mm | 10mm | 15mm |
| LM6UU | 6mm | 12mm | 19mm |
| LM8UU | 8mm | 15mm | 24mm |
| LM10UU | 10mm | 19mm | 29mm |
| LM12UU | 12mm | 21mm | 30mm |
| LM13UU | 13mm | 23mm | 32mm |
| LM16UU | 16mm | 28mm | 37mm |
| LM20UU | 20mm | 32mm | 42mm |
| LM25UU | 25mm | 40mm | 59mm |
| LM30UU | 30mm | 45mm | 64mm |
| LM35UU | 35mm | 52mm | 70mm |
| LM40UU | 40mm | 60mm | 80mm |
| LM50UU | 50mm | 80mm | 100mm |
| LM60UU | 60mm | 90mm | 110mm |
| LM80UU | 80mm | 120mm | 140mm |
| LM100UU | 100mm | 150mm | 175mm |
| LM120UU | 120mm | 180mm | 200mm |
| LM150UU | 150mm | 210mm | 240mm |
Products Features
1: Integrated Steel Balls: The design includes integrated steel balls, offering outstanding performance in terms of high speed, precision, and long lifespan.
2: Premium Materials: The outer ring is made of standard-grade high-quality steel, treated with quenching heat treatment to significantly enhance wear resistance and core toughness for long-lasting durability.
3: High-Hardness Outer Ring: The outer ring undergoes quenching treatment to achieve sufficient hardness, ensuring the bearing’s longevity and high load-bearing capacity.
4: Low Noise Design: The bearings provide high operational precision with low vibration and noise, suitable for high-precision environments.
Application
The LM series linear motion bearings are widely used in automation production lines, CNC machines, laser cutting equipment, 3D printers, and other high-precision machinery. Their exceptional durability and stability ensure that equipment maintains accurate linear motion under high load and high-speed conditions, making them indispensable components in the field of industrial automation.

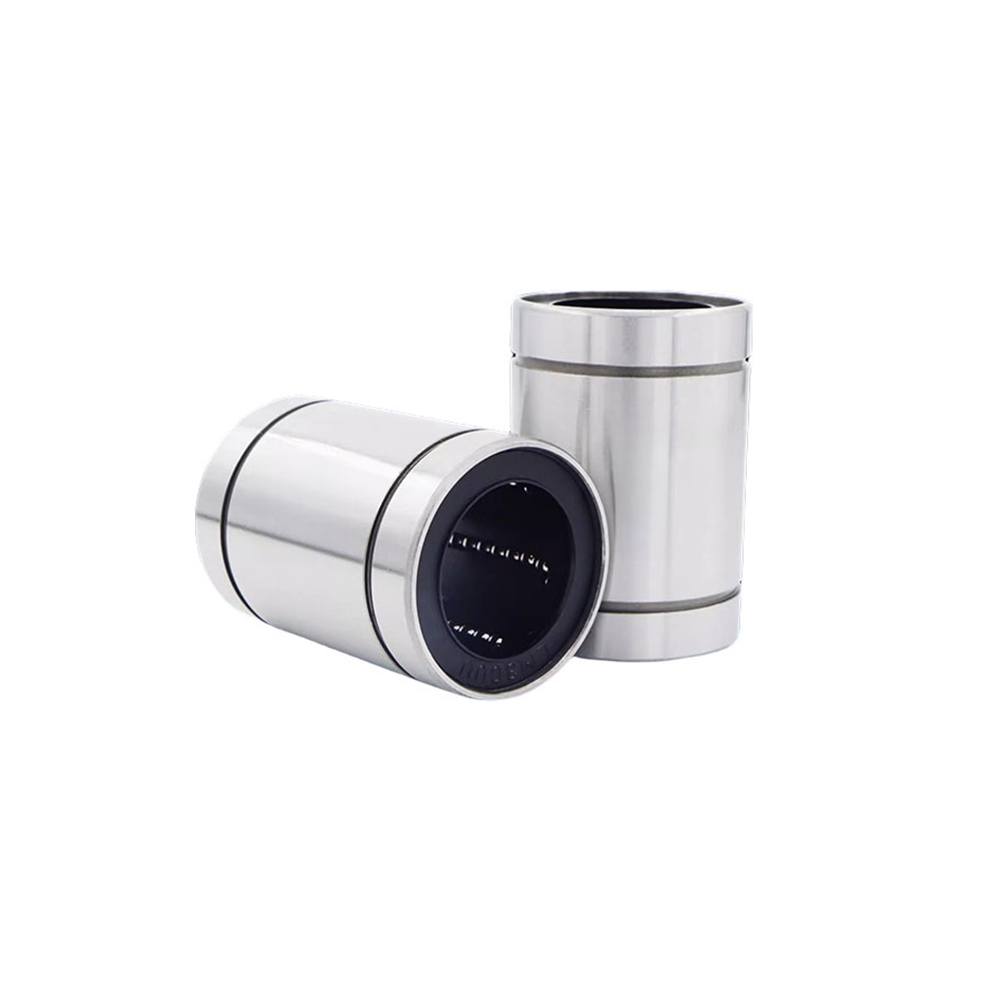

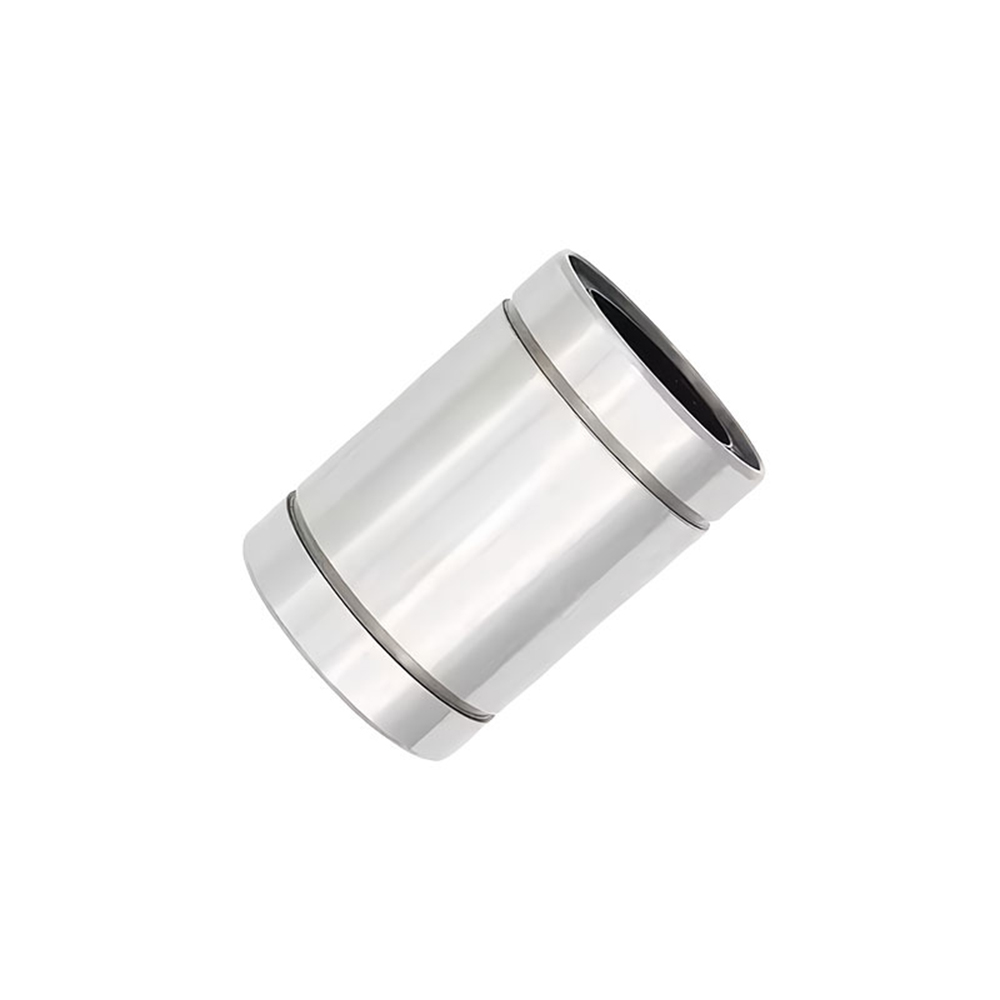

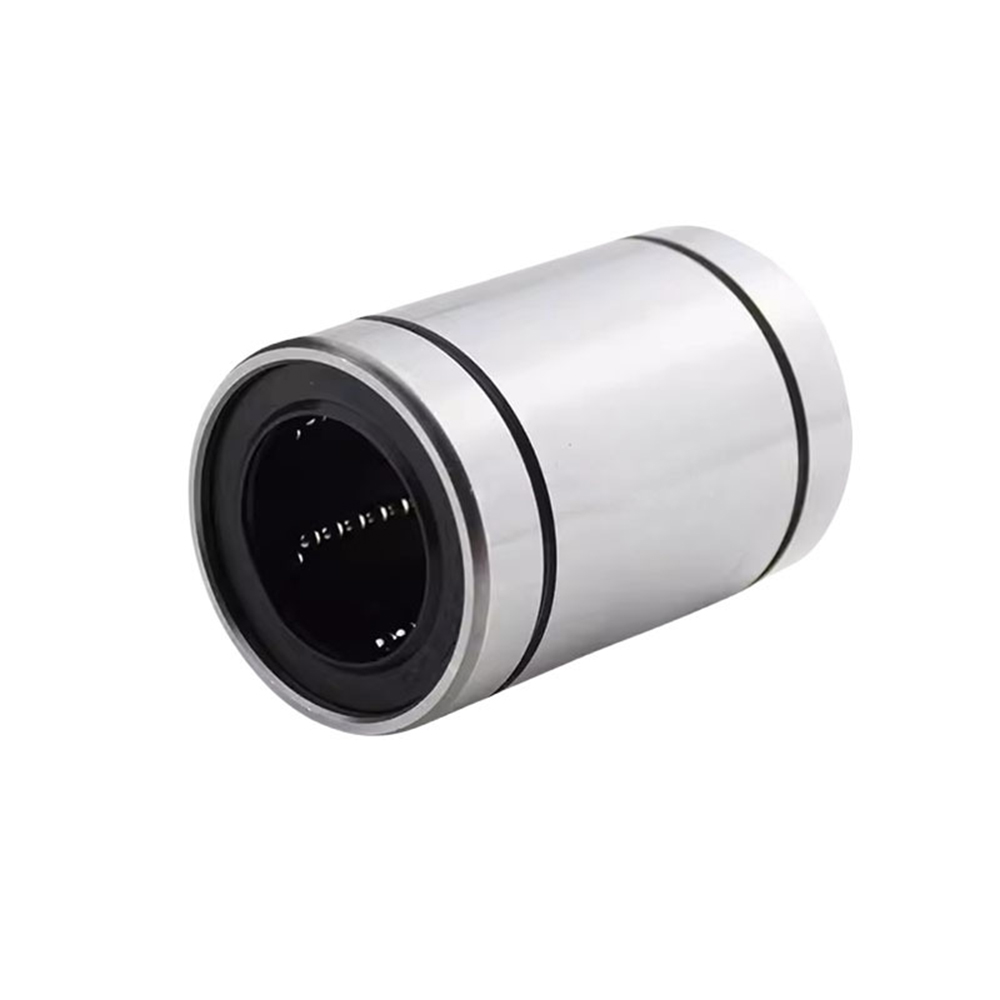

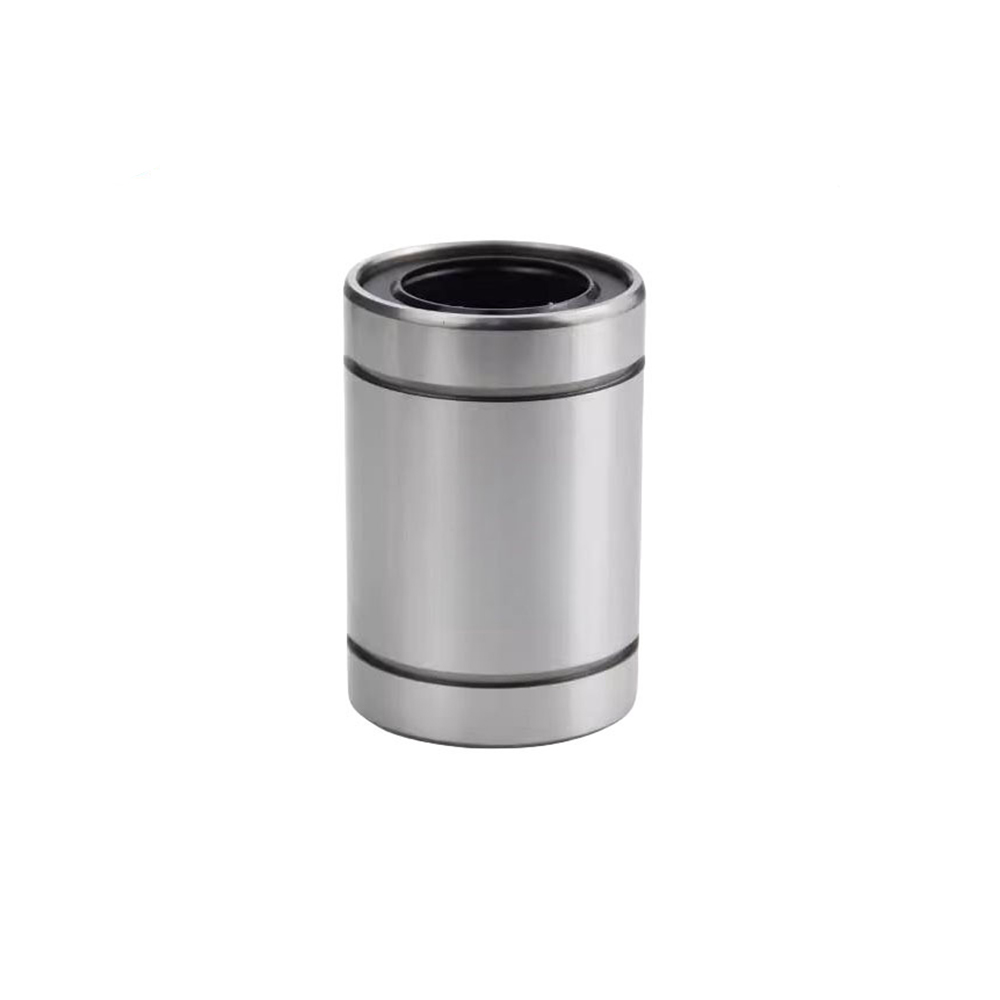

Products Pictures
