Pet Flakes Dehumidifying Hopper Dryer for Hygroscopic Plastic Materials

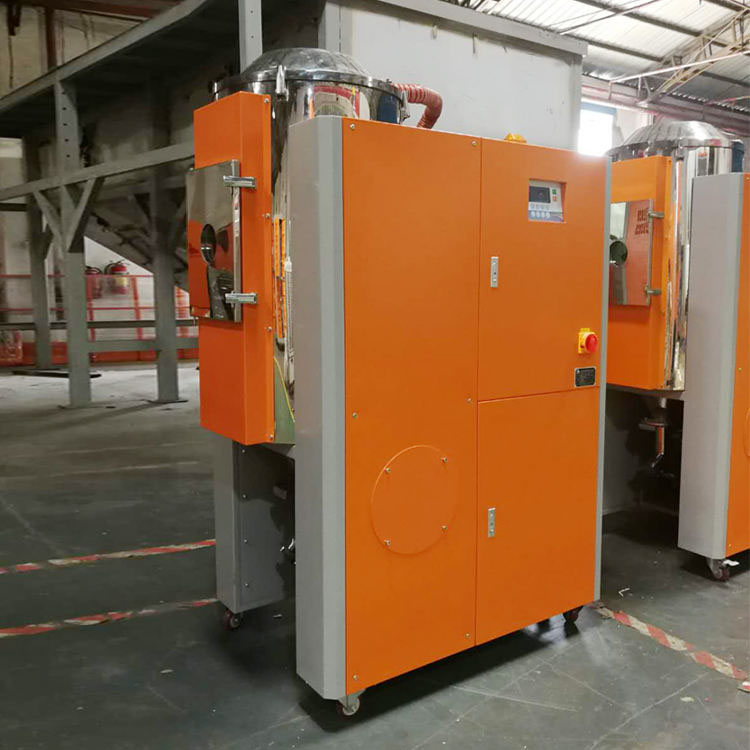

Energy Saving Dehumidifying Hopper Dryer for PET and TPU Processing

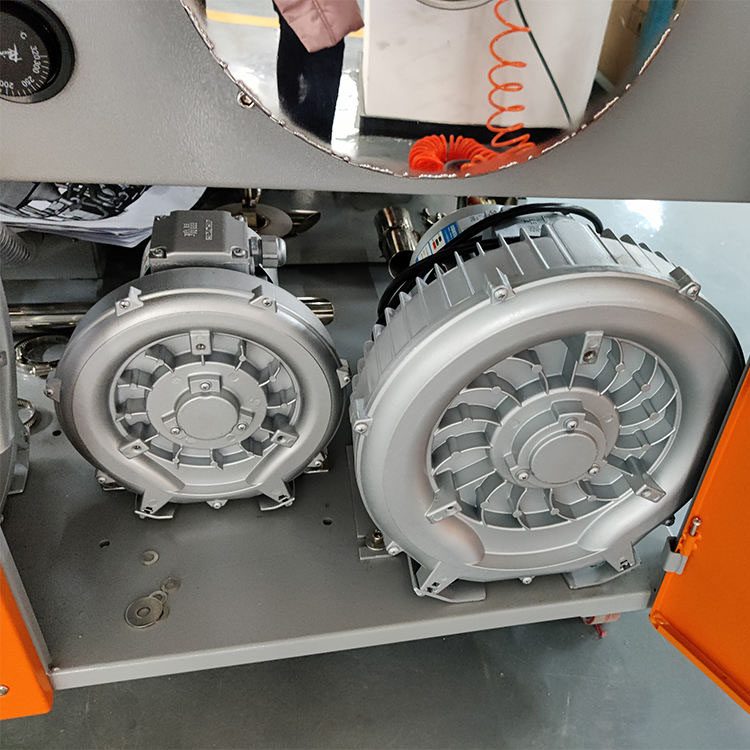

All in One Dehumidifying Dryer for PET Flakes and TPU Materials

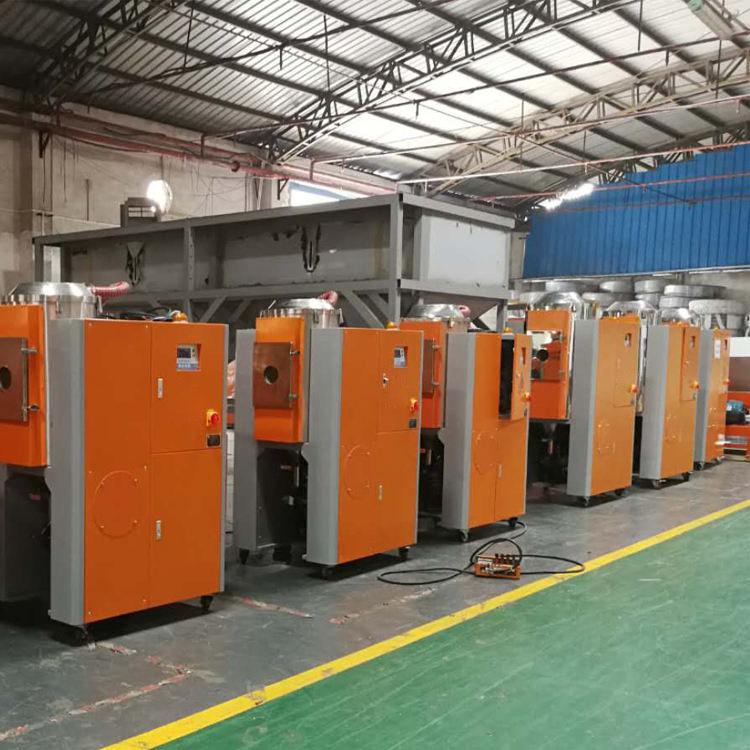

Industrial Dehumidifying Hopper Dryer for Plastic Recycling and Processing

Pet Flakes Dehumidifying Hopper Dryer Energy Saving TPU Material Dryer

This dehumidifying hopper dryer is an all-in-one solution integrating dehumidification, drying and material conveying in a compact unit. It is designed for moisture-sensitive plastic materials such as PET flakes, TPU and other hygroscopic resins, helping to effectively remove moisture before processing. With stable drying performance and low energy consumption, the system ensures consistent material quality, reduces defects caused by moisture, and supports continuous and efficient plastic processing. Its compact structure makes it suitable for production lines where space efficiency and energy saving are required.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

All-in-One Design:

Integrates dehumidification, drying and conveying in one compact unit, simplifying material handling.

Designed for Hygroscopic Plastics:

Suitable for PET flakes, TPU and other moisture-sensitive plastic materials.

Energy-Saving Operation:

Optimized heating and airflow design reduces overall energy consumption during drying.

Stable Drying Performance:

Ensures uniform moisture removal to improve material consistency and processing quality.

Compact & Space-Saving Structure:

Ideal for production lines with limited installation space.

Easy Integration:

Can be connected directly to downstream plastic processing equipment.

Products Specification:

Model		HCF-8075	HCF-120100	HCF-200200	HCF-300300	HCF-400400
Dryer Hopper	Capacity(L)	120L	160L	300L	450L	600L
Dryer Hopper	Heat Protection	Fiberglass+Staninless Steel
Dry-Air Dew point		-35℃ to -40℃
Temperature(℃)		80-160
Blower Power(KW)		0.75	1.1	2.2	3.8	5.5
Regeneration Blower(KW)		0.25	0.375	0.375	0.75	0.75
Drying Heater(KW)		4.2	6.2	11	18	20
Regeneration Heater(KW)		3.8	3.8	7.2	7.2	7.2
Pipe Sizes	Drying(mn)	51	51	63	63	76
	Cooling(lnch)	3/4"
	Regeneration	38	38	51	51	51
Conveying Blower(KW)		0.75	1.1	2	2	2
Conveying Distance(m)	Stage 1	6-10m
Conveying Distance(m)	Stage 2	6-10m
Hose Size(Inch)		1.5				2
Sensor Hopper Capacity(L)		3	3	7.5	7.5	10
Vacuum HOPPER Capacity(L)		6	6	7.5	12	10
Dimension LxWxH(cm)		100×87×180	100×87×180	12395239	165130225	150130280
Approx.Net Weight(KG)		310	360	420	550	600
