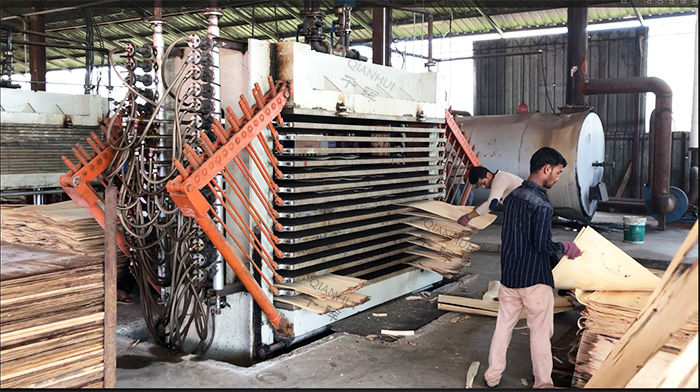

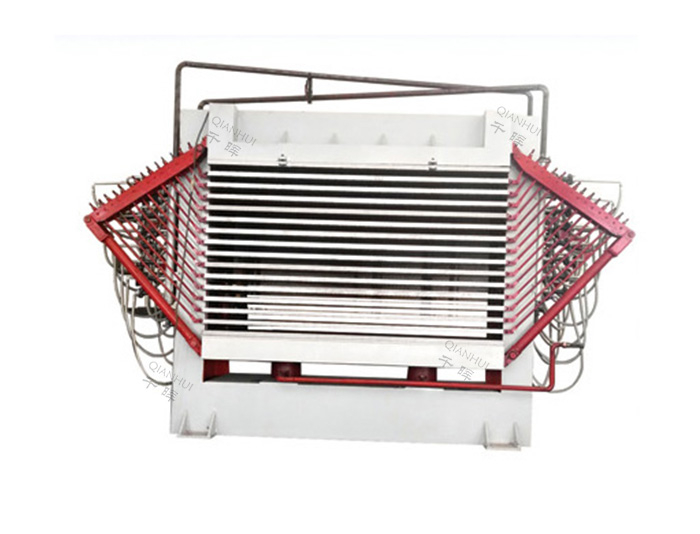

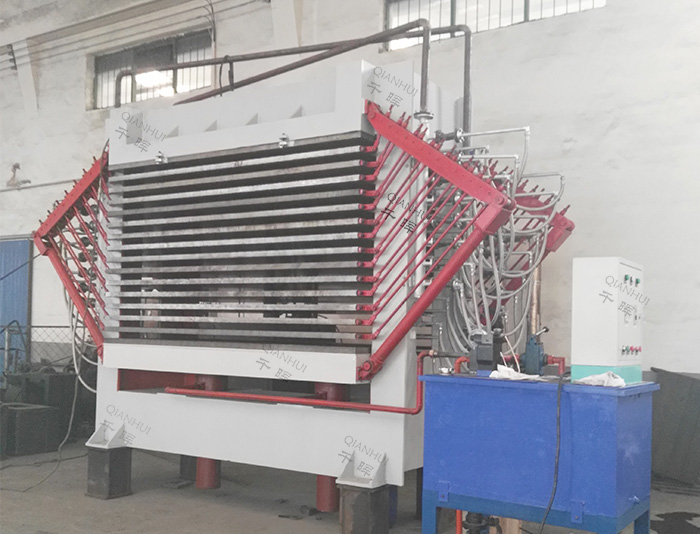

The 15 - layer hot - press breathing - type veneer dryer is a specialized and high - performance equipment designed for drying veneers in plywood production.
0.5T heat - transfer oil boiler or 300,000 kcal heat - transfer oil furnace
Operating Temperature
160℃
Drying Efficiency
35 m³/24 (for Melaleuca veneer, 1300x1300x3.0mm)
Final Moisture Content
6% - 10%
Motor Power
13kw
Frame Type
Assembled
Number of Operators
Four operators for two machines
Dimensions
3290x1370x2875 mm
Total Machine Weight
25000 kg
Key Features
Efficient Moisture Evacuation
The hot - press breathing - type design, combined with solid hot press plates that are surface - milled with grooves, allows for easier moisture discharge when pressure is applied. This significantly enhances the drying efficiency, ensuring that veneers can be dried more quickly.
Energy - Saving Operation
With a total motor power of 13kw and an average power consumption of 5kw/hour, this dryer is energy - efficient. Compared to drum - type dryers, it can achieve the same drying effect while consuming less energy, reducing production costs.
Versatile Heating Options
It can be heated by either a steam boiler or a heat - transfer oil furnace. This flexibility in heating sources enables users to choose the option that best suits their production environment and energy availability.
Stable and Quick Closing Mechanism
Equipped with a synchronous closing system and a gear - rack balance system, the dryer can close and open more quickly and stably. This not only improves the overall operating efficiency but also ensures the safety and reliability of the equipment during operation.
High - Quality Drying Results
The dryer offers high drying efficiency and produces veneers with good flatness and a low damage rate. The evenly distributed heat and pressure during the drying process contribute to consistent drying quality, meeting the high - standard requirements of plywood production.
Technical Specifications
Parameter
Details
Model
BG137x270x15L
Number of Layers
15 layers
Number of Hot Press Plates
16 pieces
Hot Press Plate Size
1370x2700x42 mm (solid plate)
Layer Spacing
60mm
Oil Cylinder Size
φ180x900mm
Number of Oil Cylinders
2 Units
Nominal Pressure
40 KN
Rated Pressure
8 Mpa
Closing System
Synchronous closing
Closing Time
15 s
Heating Medium
Heat - transfer oil or steam
Boiler Size
0.5T heat - transfer oil boiler or 300,000 kcal heat - transfer oil furnace
Operating Temperature
160℃
Drying Efficiency
35 m³/24 (for Melaleuca veneer, 1300x1300x3.0mm)
Final Moisture Content
6% - 10%
Motor Power
13kw
Frame Type
Assembled
Number of Operators
Four operators for two machines
Dimensions
3290x1370x2875 mm
Total Machine Weight
25000 kg
Key Features
Efficient Moisture Evacuation
The hot - press breathing - type design, combined with solid hot press plates that are surface - milled with grooves, allows for easier moisture discharge when pressure is applied. This significantly enhances the drying efficiency, ensuring that veneers can be dried more quickly.
Energy - Saving Operation
With a total motor power of 13kw and an average power consumption of 5kw/hour, this dryer is energy - efficient. Compared to drum - type dryers, it can achieve the same drying effect while consuming less energy, reducing production costs.
Versatile Heating Options
It can be heated by either a steam boiler or a heat - transfer oil furnace. This flexibility in heating sources enables users to choose the option that best suits their production environment and energy availability.
Stable and Quick Closing Mechanism
Equipped with a synchronous closing system and a gear - rack balance system, the dryer can close and open more quickly and stably. This not only improves the overall operating efficiency but also ensures the safety and reliability of the equipment during operation.
High - Quality Drying Results
The dryer offers high drying efficiency and produces veneers with good flatness and a low damage rate. The evenly distributed heat and pressure during the drying process contribute to consistent drying quality, meeting the high - standard requirements of plywood production.
