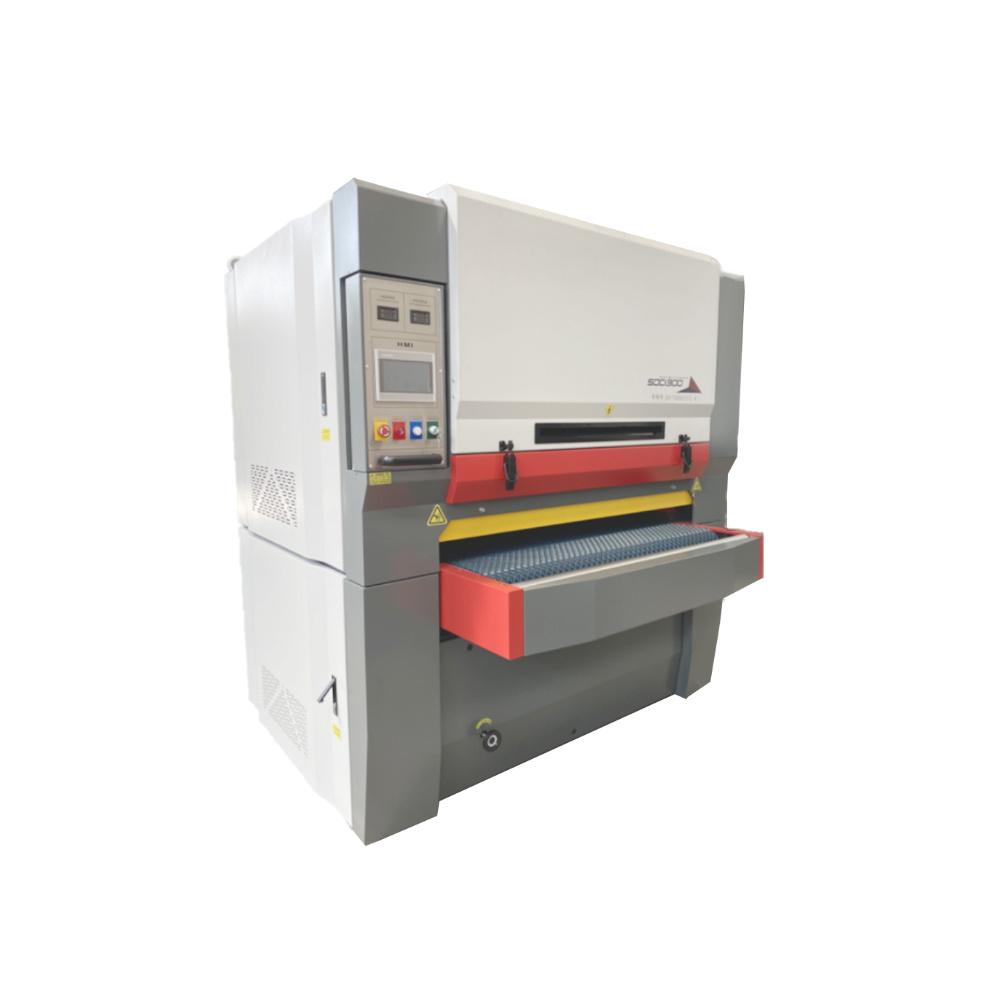

Robust Structure: The load - bearing columns of the SDC1300 are crafted from thickened rectangular tubes, which are welded and undergo artificial aging treatment. This not only enhances the overall rigidity of the machine but also keeps the internal wiring organized, contributing to the machine's stability and durability.
User - Friendly Control System: The machine utilizes a PLC (Programmable Logic Controller) in conjunction with a touch - screen as its main control components. This setup offers a visual operation interface, enabling operators to easily monitor and manage the sanding process. It also has a self - diagnostic function for faults, with clear item displays and simple, easy - to - understand text, making operation reliable, flexible, and user - friendly.
Versatile Processing Capability: It can handle a wide variety of wood veneer workpieces. The workpiece thickness can range from 3 - 100mm, the length should be greater than 630mm, and the width can vary from 40 - 1300mm. This versatility makes it suitable for different wood - processing needs, whether it's for small - scale workshops or large - scale manufacturing plants.
Efficient Sanding Performance:
The SDC1300 is equipped with two sanding belts with different speeds. The 1# sanding belt runs at a speed of 18m/s, while the 2# sanding belt has a speed of 12m/s. These different speeds allow for a more comprehensive sanding process, from rough sanding to finer finishing, ensuring a smooth and high - quality surface finish on the wood veneer.
The sanding belts have a size of 1330x2200mm, providing a large sanding area to cover the workpieces effectively.
Adjustable Conveyor System: The conveyor belt of the machine has an adjustable speed, ranging from 12 - 50m/min. With a size of 1300x4000mm, it can transport workpieces steadily through the sanding process. The conveyor system also includes a 4 - kW motor for the conveyor device and a 0.55 - kW motor for the conveyor bed lifting drive, ensuring smooth and precise movement of the workpieces.
Optional Dust - Collection System: An optional dust - collection device is available. With a high - volume air flow of 8000m³/h, a static pressure of 1500Pa, and a pipeline average wind speed of 22 - 25m/s, it can effectively collect dust generated during the sanding process. This not only helps maintain a clean working environment but also improves the quality of the sanding operation by reducing dust interference.
Complete Set of Power - Driven Components: In addition to the motors for the sanding belts, conveyor system, and conveyor bed lifting, the machine is also equipped with a 0.37 - kW motor for the brush - light roller. This component helps to further clean and smooth the surface of the sanded wood veneer, enhancing the overall quality of the finished product.
| Parameter | Details |
|---|---|
| Workpiece Thickness | 3 - 100mm |
| Workpiece Length | >630mm |
| Workpiece Width | 40 - 1300mm |
| 1# Sanding Belt Speed | 18m/s |
| 2# Sanding Belt Speed | 12m/s |
| Sanding Belt Size (Width x Circumference) | 1330x2200mm |
| Conveyor Belt Speed | 12 - 50m/min |
| Conveyor Belt Size (Width x Circumference) | 1300x4000mm |
| 1# Sanding Frame Motor Power | 22kW |
| 2# Sanding Frame Motor Power | 11kW |
| Conveyor Device Motor Power | 4kW |
| Conveyor Bed Lifting Drive Motor Power | 0.55kW |
| Brush - light Roller Motor Power | 0.37kW |
| Compressed Air Working Pressure | 0.55Mpa |
| Compressed Air Consumption | 0.1m³/min |
| Optional Dust - Collection Device Air Volume | 8000m³/h |
| Optional Dust - Collection Device Static Pressure | 1500Pa |
| Optional Dust - Collection Device Pipeline Average Wind Speed | 22 - 25m/s |
| Machine Dimensions (Length x Width x Height) | 2290x2060x2240mm |
