Full - Process Traceability for Welding Quality Assurance
It enables end - to - end tracking of solder paste warm - up duration and stirring records. All data is synchronized in real - time with systems like MES, ERP, or WMS. This feature helps avoid subsequent welding quality problems caused by manual operations and realizes digital quality management.

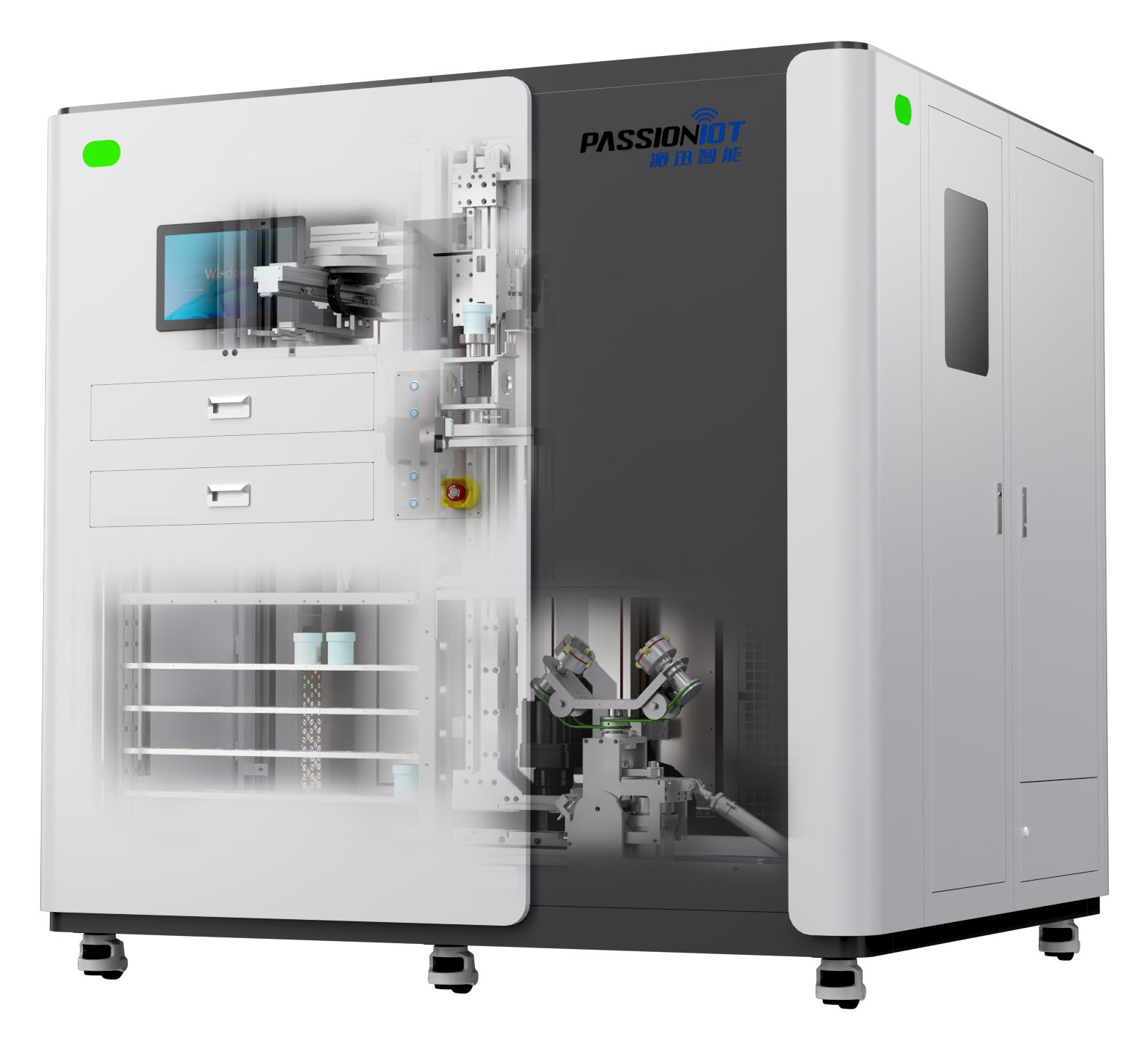

Innovative Structural Design for Smart Manufacturing

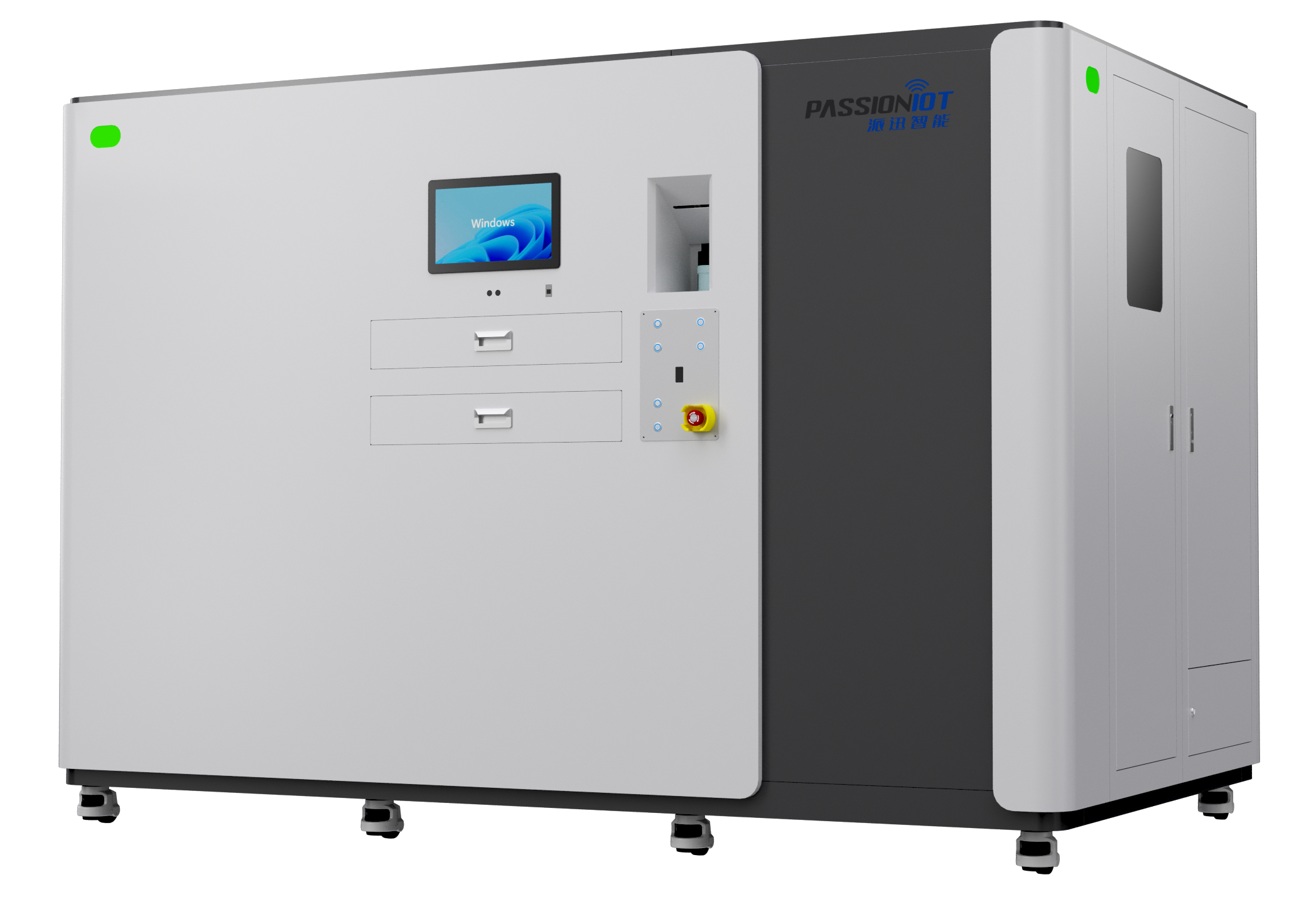

The drawer - type design for batch loading and unloading prevents materials from tipping over or falling, ensuring operator safety.
The optimized access design in the refrigerated area reduces cold air loss, maintaining a stable storage temperature.
With a modular structure, it can adapt to various solder paste specifications, and its capacity can be expanded as needed.
User - Friendly Design with Stable Quality
The operation structure is optimized based on factory practical experience, following ergonomic principles for easy use.
High - quality electrical components are used throughout the machine. Meeting CE certification requirements, it ensures long - term stable operation and is suitable for export.
Solder Paste In - warehousing: Scan the code upon incoming, then store it in the refrigerated box.
Out - warehousing and Warm - up: Scan the code for out - warehousing, transfer the solder paste to the warm - up area for warming.
Stirring and Use: After warming, the solder paste is automatically stirred. Check and scan the code after stirring, then issue it to the production line.
Post - use Procedures: Confirm usage and scan to cancel the code. If there is remaining solder paste, return it.
| Item | Parameter |
|---|---|
| Equipment Dimensions | L2,000×W1,650xH2,000mm |
| Equipment Weight | 1,500 Kg |
| Equipment Power | 5 KW |
| Equipment Power Supply | 220V |
| Applicable Solder Paste Containers | 500g standard bottles, supports tube - type solder paste |
| Bottle Dimensions | Diameter: 60 mm, Cap Diameter: 68 mm, Height: 75 mm(±2 mm) |
| Storage Method | Rotating and stacked storage, refrigerated by compressor, with access - point code - scanning for traceability |
| Refrigerated Quantity | 330 bottles |
| Refrigerated Zone Temperature | 0 - 10°C (recommended setting: 3 - 8°C) |
| Warm - up Quantity | 45 bottles |
| Warm - up Control | Room temperature |
| Single - time Stocking Quantity | 16 bottles |
| Single - time Picking Quantity | 1 bottle |
| Stirring Speed | 500 RPM |
| Unlocking Method | Access control all - in - one machine (binocular vision/fingerprint/password/card - swiping) |
| Item | Parameter |
|---|---|
| Equipment Dimensions | L2,700xW1,650xH2,000mm |
| Equipment Weight | 2,100 Kg |
| Equipment Power | 6.5 KW |
| Equipment Power Supply | 220V |
| Applicable Solder Paste Containers | 500g standard bottles, supports tube - type solder paste |
| Bottle Dimensions | Diameter: 60 mm, Cap Diameter: 68 mm, Height: 75 mm(±2 mm) |
| Storage Method | Rotating and stacked storage, refrigerated by compressor, with access - point code - scanning for traceability |
| Refrigerated Quantity | 660 bottles |
| Refrigerated Zone Temperature | 0 - 10°C (recommended setting: 3 - 8°C) |
| Warm - up Quantity | 90 bottles |
| Warm - up Control | Room temperature |
| Single - time Stocking Quantity | 32 bottles |
| Single - time Picking Quantity | 1 bottle |
| Stirring Speed | 500 RPM |
| Unlocking Method | Access control all - in - one machine (binocular vision/fingerprint/password/card - swiping) |
