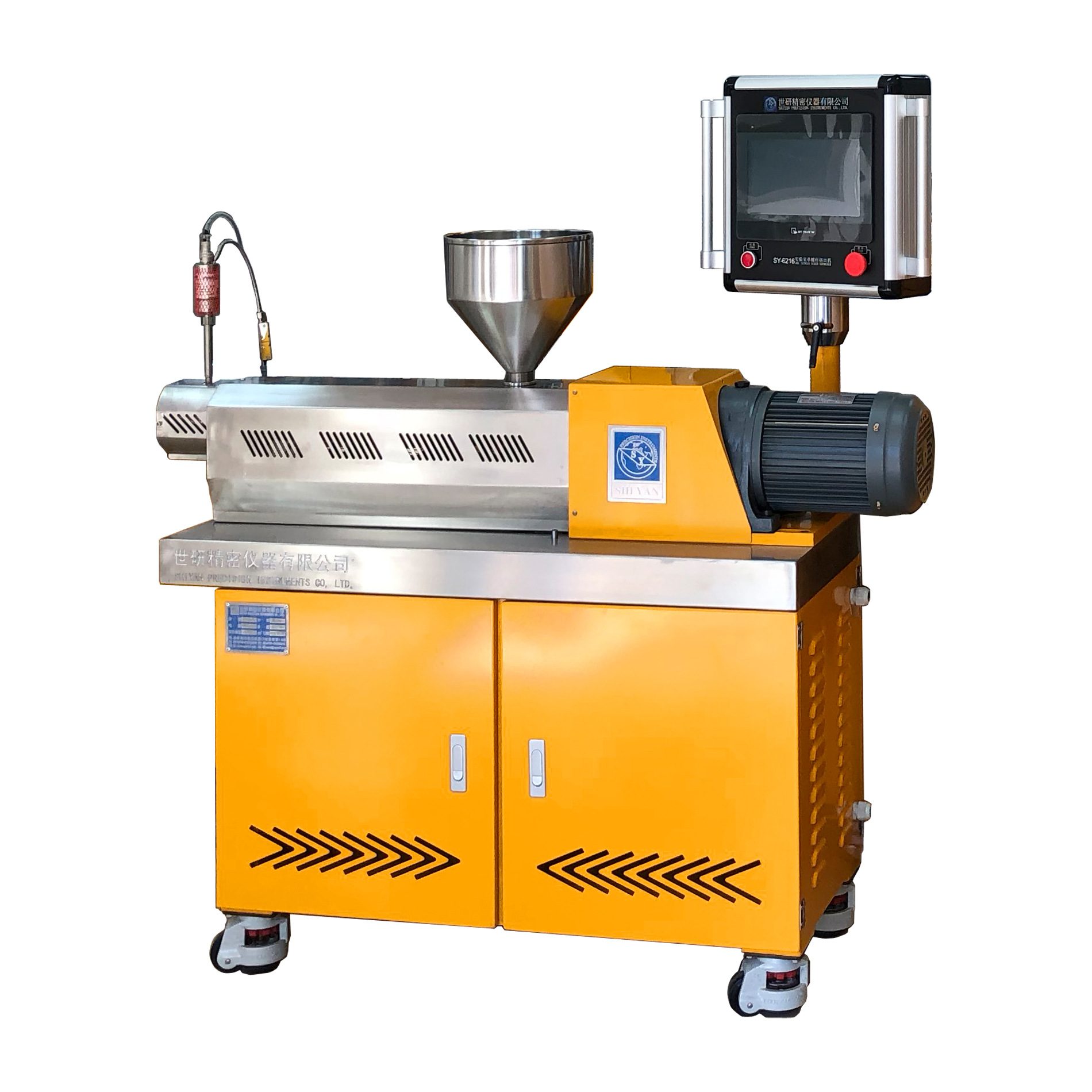

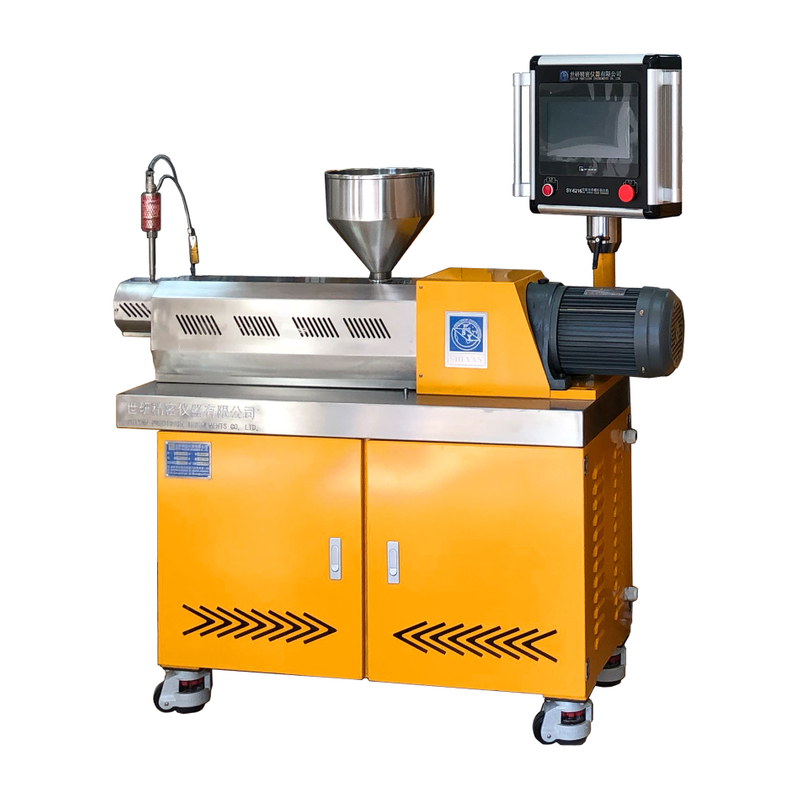

SY-6216-B laboratory single screw extruder programmable type

Technical Specifications

• Screw Diameter: The screw diameter can be selected within the range of 16 - 35mm, allowing users to choose the most suitable option according to their specific requirements.

• Speed Adjustment: The speed of the extruder is controlled by a frequency converter, enabling precise and flexible speed regulation. This ensures stable operation under different working conditions and meets the needs of various processing requirements.

• Length - to - Diameter Ratio: The standard length - to - diameter ratio is 28:1. However, other ratios within the range of 10 - 33 times are also available upon request, providing users with more choices to adapt to different material properties and processing purposes.

• Controller: It is equipped with a PLC (Programmable Logic Controller) for automated and intelligent control. The PLC can precisely control various parameters of the extruder, ensuring high - quality and consistent production results.

• Temperature Control: The temperature range spans from room temperature to 300°C, and custom - made temperature ranges are also available. The temperature control accuracy is within ±2°C. The heating method is electrical heating, and it features multi - zone heating for precise temperature regulation in different sections. This ensures that the material is evenly heated and plasticized during the extrusion process.

• Material of Screw and Barrel: The screw and barrel are made of 38CrMoAl high - grade nitrided steel. Other customized materials can also be used to meet specific needs, ensuring high wear resistance and long - term reliable operation.

• Cooling Device: An air - cooling system is employed to effectively dissipate heat, maintaining the stability of the extrusion process and the performance of the equipment.

• Machine Head: The machine head has a flange interface, which can be connected to various molds for extrusion tests of blown films, cast films, pipes, sheets, profiles, etc. This versatility allows users to explore different product - making possibilities with a single extruder.

• Driving Method: Driven by a precision motor, it provides stable and reliable power for the extrusion process.

• Power Supply: The power supply required is 3 - phase, AC380V, 50Hz three - phase five - wire system.

• Dimensions and Weight: The volume is no less than 900×450×1400 (L×W×H)mm, and the weight is no less than 200 kg. Its relatively compact size is suitable for installation and use in laboratory environments, while its sufficient weight ensures stability during operation.
