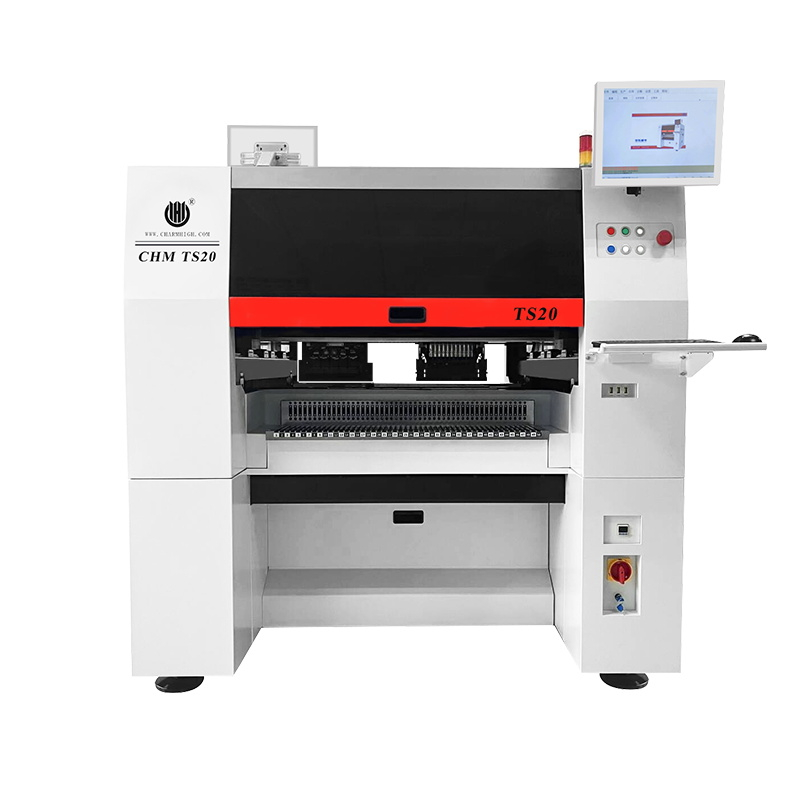

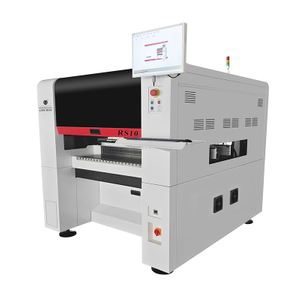

Adopting a combination of front and rear arms for mounting: 82000CPH
Adopting dual track substrate transfer (supporting the production of two identical substrates simultaneously)
Mounting accuracy: (xy) ± 0.035mm CPK>1.0
Four Y-axis dual gantry drive control system
X-axis double dragon door Y-axis four sets of Panasonic servo, grinding screw, silent guide rail
Support CPK testing
Ensure the continuous stability and guarantee of process capability
Dual arm combination installation
Configure high-speed 10+10 mounting heads, corresponding to various chip components
ANC (Automatic Replacement of Double Suction Nozzle Library)
Automatic allocation and replacement of suction nozzles
Automatic thermal compensation correction system
Ensure long-term stability of equipment operation
| Parameter | Details |
|---|
| External Dimensions | 1600mm(L) × 1688mm(W) × 1560mm(H) |
| Weight | 1930kg |
| Power Supply | AC380V(50Hz, Three - phase), Power 4.5kw |
| Air Source | 0.5MPa - 0.7MPa |
| Vacuum Generation | Built - in Vacuum Pump |
| Number of Mounting Heads | 10 |
| Mounting Speed | 45000CPH (Under Company's Optimal Conditions) |
| Mounting Precision | (xy)±0.035mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Types | Resistors, Capacitors, Resistor Arrays, Cylindrical Diodes, Aluminum Capacitors, SOT, SOP, QFP, QFN, BGA, etc. |
| Component Range | Imperial 0201 to 36mmX36mm, and Super - large Component Mounting |
| PCB Thickness | 0.6mm - 3.5mm |
| PCB Dimensions | 600mm(length)×400mm(width) (Standard); 1200mm(length)×400mm(width) (Optional) |
| PCB Conveyance | 3 - stage Track Automatic Conveyance, PCB Support Device |
| Nozzle Change | Automatic Change (31 - hole Nozzle Magazine) |
| Control System | Built - in Industrial Computer (Running Windows 7), with Display, Keyboard, Mouse |
| Drive System | X - axis Driven by Servo Motor (Y - axis Driven by Dual Linear Motors) |
| Transmission System | X, Y - axis Using THK Ground Lead Screws and THK Silent Linear Guides |
| Feeding System | 100 NXT 8mm Standard Feeder Installation Positions (Can Install IC Trays and Vibration Feeders) |
| Vision System | 10 Flying Cameras (Applicable Component Size: 16mm×16mm)
1 IC Camera (Applicable Component Size: 36mm×36mm, Supports Large - component Segmentation Recognition Function)
2 Mark Cameras |
