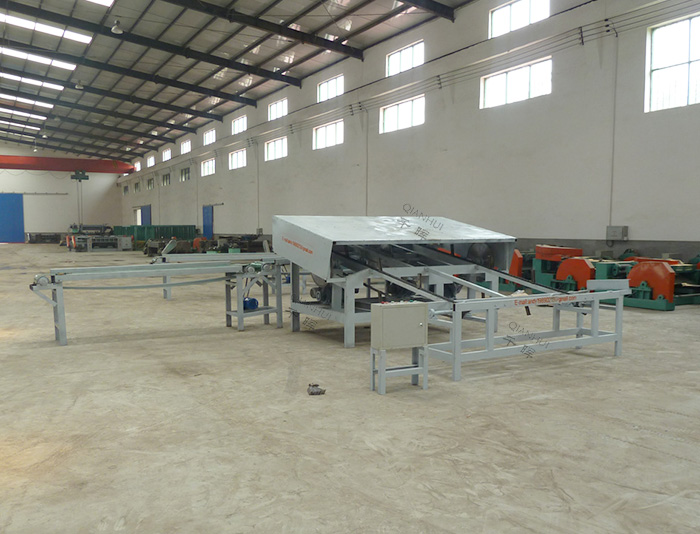

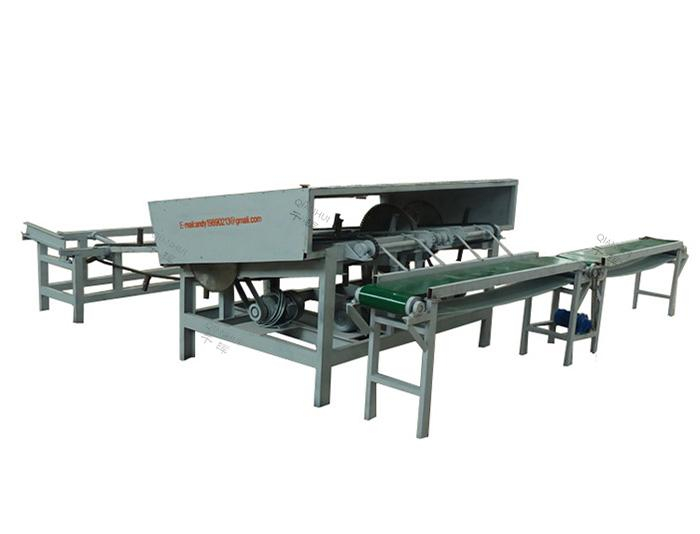

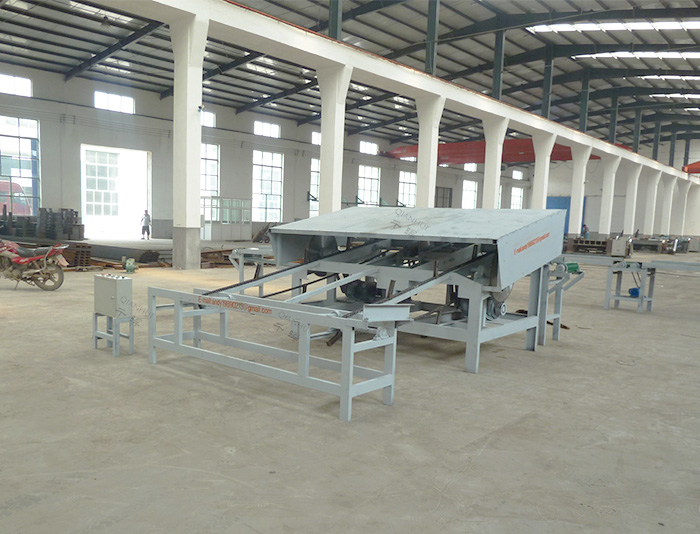

The Log Cutting Saw is a crucial piece of equipment in the veneer production line, designed to efficiently process logs into suitable lengths for further processing.
This log cutting saw is specifically designed to cut logs. It can slice a 2600mm - long log into two 1270mm - long logs or a 2000mm - long log into two 970mm - long logs. After cutting, the logs are directly conveyed by a conveyor belt to the rounding machine for further processing, eliminating the need for side knives during the subsequent veneer peeling process. This streamlined process improves production efficiency and reduces the complexity of operations.
High - Productivity and Labor - Saving
One log cutting saw can be connected to two rounding machines, significantly increasing the overall productivity of the production line. By automating the log - cutting process, it effectively reduces the labor intensity of workers. This makes it an essential machine in the veneer peeling production line, helping manufacturers to achieve higher output with less manual effort.
Technical Specifications
Parameter
Details
Model
BJ2600/2000 Log Cutting Saw
Log Cutting Length
2000 - 2600mm
Log Cutting Diameter
φ260mm
Saw Blade Diameter
φ700
Sawing Linear Speed
25.8m/min
Feeding Speed
29.7m/min
Motor Power
23kw
Dimensions
3060x4200x1600mm
Total Machine Weight
2500kg
Key Features
Efficient Log Cutting
This log cutting saw is specifically designed to cut logs. It can slice a 2600mm - long log into two 1270mm - long logs or a 2000mm - long log into two 970mm - long logs. After cutting, the logs are directly conveyed by a conveyor belt to the rounding machine for further processing, eliminating the need for side knives during the subsequent veneer peeling process. This streamlined process improves production efficiency and reduces the complexity of operations.
High - Productivity and Labor - Saving
One log cutting saw can be connected to two rounding machines, significantly increasing the overall productivity of the production line. By automating the log - cutting process, it effectively reduces the labor intensity of workers. This makes it an essential machine in the veneer peeling production line, helping manufacturers to achieve higher output with less manual effort.
