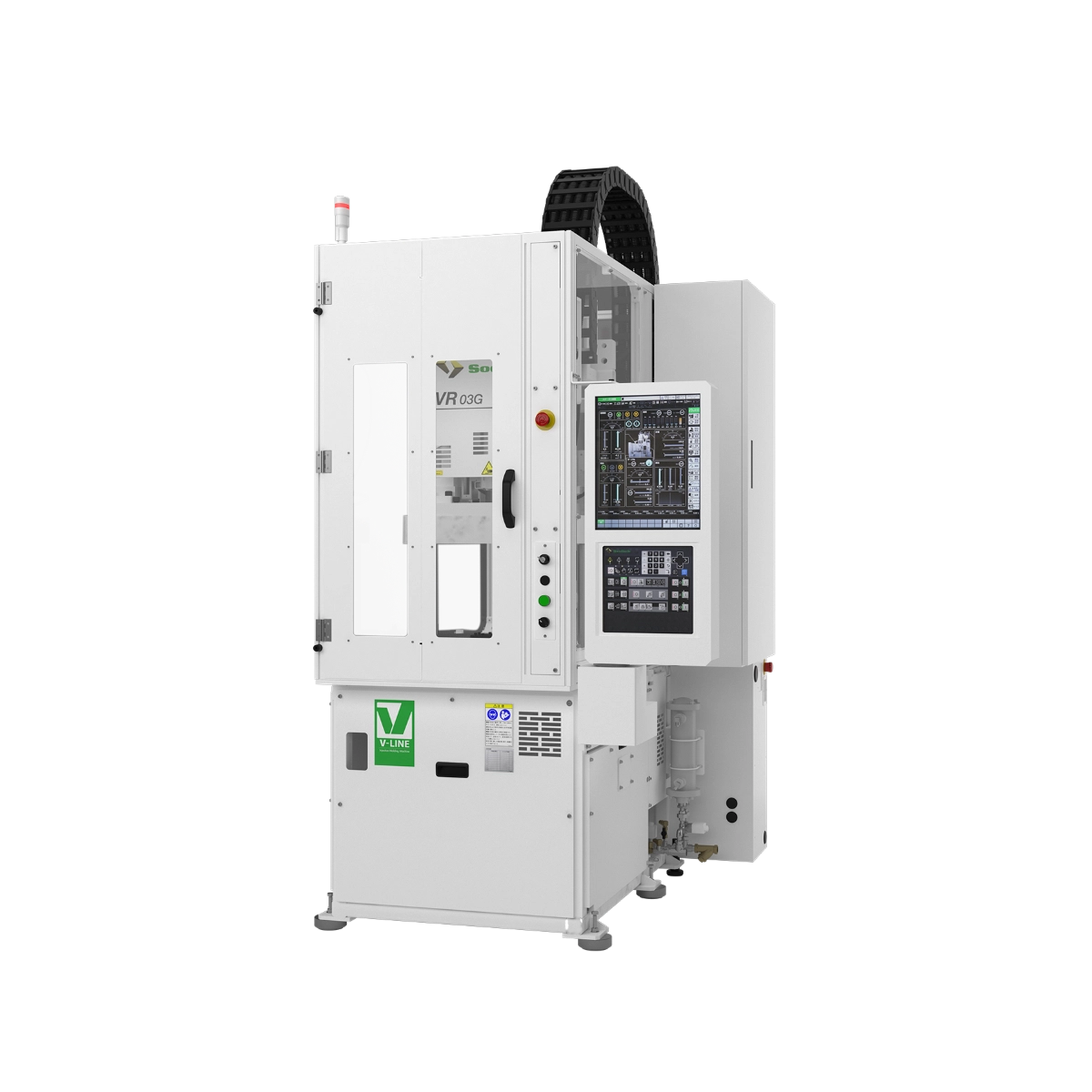

This new-generation injection molding machine is equipped with the V-LINE® system, ensuring precise filling, stable plasticization, and higher control accuracy.
Stability: High-Precision and Stable Molding The V-LINE® system consists of a plasticizing unit for melting resin and an injection unit for measuring and injecting. Coupled with the unique high-repeatability injection and plasticization control technology, it achieves a higher level of stable molding accuracy.
Precision: Enhanced Control Accuracy of Molding Operations The self-developed control system features better high-speed digital processing capabilities and a more complex communication system. This improves the control accuracy of every operation, including highly responsive injection control. Additionally, a high-precision temperature control system is employed, enabling more accurate control of the heater temperature than before and realizing highly reproducible and precise molding.
Standard: Compliant with International Safety Standards It complies with the international injection molding machine safety standard ISO20430 (JIS B 6711). It also meets the EUROMAP63 and EUROMAP77 (OPC UA communication) injection molding machine data integration interface specifications stipulated by Europe and the United States.
Mould Size: Expanded Mold Installation Dimensions It has industry-leading mold installation dimensions (approximately 30% larger compared to previous models), supporting larger and more complex molds.
Product Specifications
Maximum Clamping Force (kN)
29.4
Distance Between Plates (Minimum Mold Thickness + Maximum Mold Opening Stroke) (mm)
300
Minimum Mold Thickness (mm)
150
Screw Diameter (mm)
14
Plunger Diameter (mm)
8\12
Maximum Injection Pressure (MPa)
197
Theoretical Injection Capacity (cm³)
2\4.5
Maximum Injection Speed (mm/s)
500\400
Machine Dimensions LxWxH (mm)
1628x1134x2566
Machine Weight (kg)
Key Features
Stability: High-Precision and Stable Molding The V-LINE® system consists of a plasticizing unit for melting resin and an injection unit for measuring and injecting. Coupled with the unique high-repeatability injection and plasticization control technology, it achieves a higher level of stable molding accuracy.
Precision: Enhanced Control Accuracy of Molding Operations The self-developed control system features better high-speed digital processing capabilities and a more complex communication system. This improves the control accuracy of every operation, including highly responsive injection control. Additionally, a high-precision temperature control system is employed, enabling more accurate control of the heater temperature than before and realizing highly reproducible and precise molding.
Standard: Compliant with International Safety Standards It complies with the international injection molding machine safety standard ISO20430 (JIS B 6711). It also meets the EUROMAP63 and EUROMAP77 (OPC UA communication) injection molding machine data integration interface specifications stipulated by Europe and the United States.
Mould Size: Expanded Mold Installation Dimensions It has industry-leading mold installation dimensions (approximately 30% larger compared to previous models), supporting larger and more complex molds.
