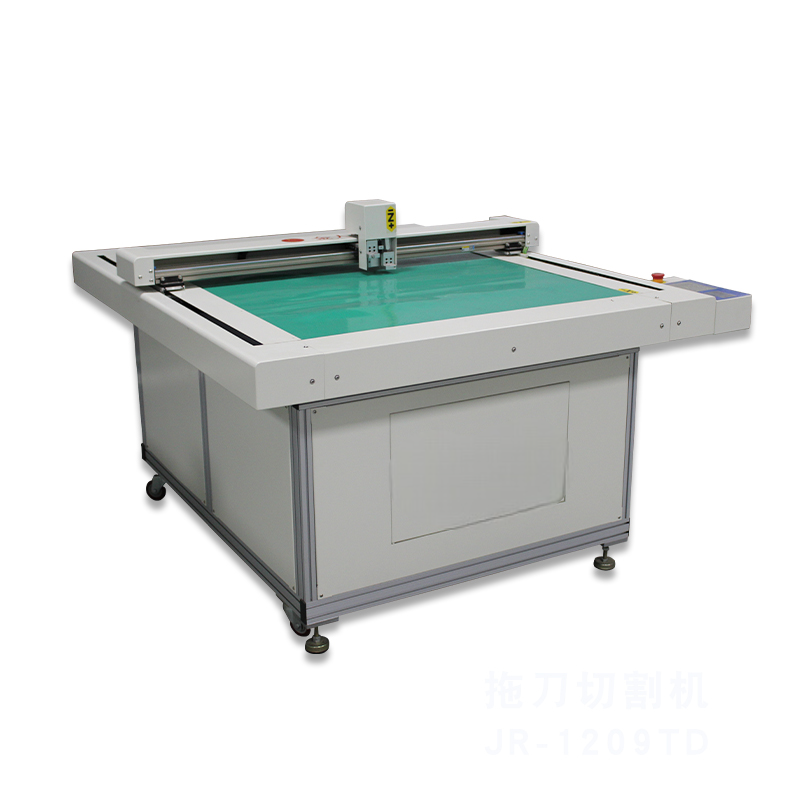

Model: 1209TD
Material: Constructed with a combination of steel and aluminum, ensuring durability and a certain level of lightness.
Dimensions: The overall size of the machine is 1650X1350X1150mm, while the working cutting area is 1200(L)*900(W).
Weight: It has a gross weight of 280KG, making it relatively portable for its type.
Fixed Method: Utilizes vacuum adsorption to firmly hold the materials during the cutting process, ensuring stability.
Cutting Speed: Can reach up to 1200MM/S, although the actual speed may vary depending on the material being cut.
Cutting Thickness: Suitable for cutting materials less than 2MM thick, specifically flexible non - metallic materials.
Cutting Precision: Achieves a high precision of ±0.05MM, ensuring accurate and clean cuts.
Smallest Circle Diameter: Can cut circles with a minimum diameter of 1MM, allowing for intricate designs.
Power Supply: Operates on an AC power supply, compatible with voltages of 220V or 380V±10% at 50HZ.
Transmission System: Driven by a servo motor and equipped with a linear guide, providing smooth and accurate movement.
Working Environment: Can function properly in a temperature range of 5° - 35° and a humidity range of 35% - 75%.
Compatible Data Formats: Supports HP - GL compatible formats, including DXF, CDR, AI, etc., which makes it easy to import design files.
User - friendly Operation: Thanks to its simple mechanical principle, the operation panel is straightforward. Even novice operators can master the operation within two hours, making it accessible for a wide range of users.
High - precision Cutting: Adopting a modular drive system, it can meet the high - precision requirements of the market. This allows for not only precise sample cutting but also small - batch production, making it suitable for both prototyping and small - scale manufacturing.
Versatile Material Compatibility: It can cut a variety of non - metallic flexible materials within 2MM thickness, such as PET film, PVC film, PPT film, reflective film, pearl film, aluminum film, mobile phone protective film, reflective sheets, double - sided tape, dust - proof net, 3MM adhesive, flexible printed circuit boards (FPC), and precision die - cut accessories for mobile phones and tablets.
Cost - effective: With stable machine performance, the main consumable is only the cutting blade, which helps to keep the maintenance cost low. It also saves production costs by eliminating the need for frequent knife - die making. By using a computer - aided design and manufacturing system (CAD/CAM), it can significantly shorten the design time, improve production efficiency, and reduce overall production costs.
Flexible Production: The machine supports small - batch production, which is in line with the modern packaging trend of personalized packaging. It also allows for easy archiving of sample files, facilitating subsequent retrieval and modification.
