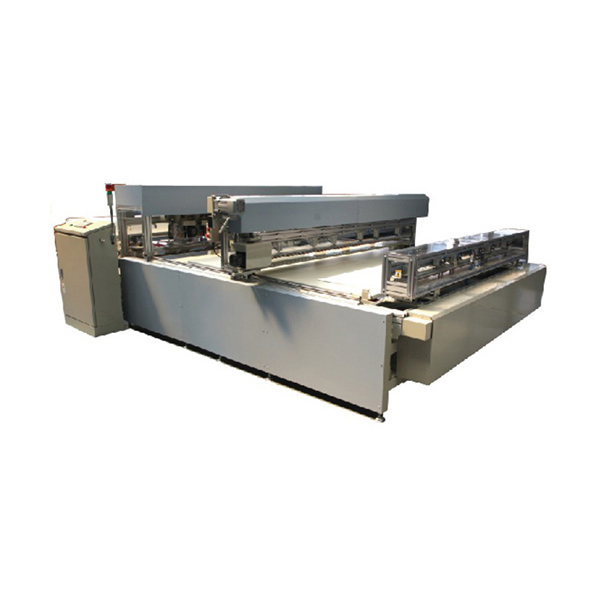

Powerful Cutting Capacity: Equipped with horizontal tensioners on the cutting body and clamping device, it can handle materials up to 35mm thick in a single pass for both fabric laying and cutting. This enables it to process a wide range of materials, from thin fabrics to relatively thick industrial materials.
Flexible Cutting Head Adjustment: There are 5 cutting heads on the machine. The distance between these heads can be easily adjusted in the width direction. Moreover, when a cutting head is not in use, it can be lifted by the cylinder drive. This feature not only provides flexibility in cutting different - sized materials but also prevents accidental cutting of materials, ensuring the safety and accuracy of the cutting process.
Automated and Precise Cutting: With an automatic edge - alignment device and an independent fabric - feeding device, the machine can perform simultaneous cutting with 5 cutting heads in the width direction. It can also cut materials to a specified length, achieving precise "fixed - length" cutting. After cutting, the materials are automatically stacked on the lifting platform. The maximum stacking height can reach 400mm, which greatly improves the efficiency of post - cutting material handling.
Technical Specifications
Parameter
AS - 2000 - LF
Power Supply
Three - phase AC220V/50 - 60HZ/1.5KW
Minimum Cutting Width
25CM
Maximum Cutting Dimensions (Length * Width * Thickness)
200180035 (mm) (Note: The width and length of the cut fabric can be customized)
Maximum Stacking Height
40CM
Number of Fixed - length Cutting Heads
5 units (The number can be customized)
Maximum Mechanical Speed
24M/MIN
Dimensions (L * W * H)
375032001500 (mm)
Product Features
Powerful Cutting Capacity: Equipped with horizontal tensioners on the cutting body and clamping device, it can handle materials up to 35mm thick in a single pass for both fabric laying and cutting. This enables it to process a wide range of materials, from thin fabrics to relatively thick industrial materials.
Flexible Cutting Head Adjustment: There are 5 cutting heads on the machine. The distance between these heads can be easily adjusted in the width direction. Moreover, when a cutting head is not in use, it can be lifted by the cylinder drive. This feature not only provides flexibility in cutting different - sized materials but also prevents accidental cutting of materials, ensuring the safety and accuracy of the cutting process.
Automated and Precise Cutting: With an automatic edge - alignment device and an independent fabric - feeding device, the machine can perform simultaneous cutting with 5 cutting heads in the width direction. It can also cut materials to a specified length, achieving precise "fixed - length" cutting. After cutting, the materials are automatically stacked on the lifting platform. The maximum stacking height can reach 400mm, which greatly improves the efficiency of post - cutting material handling.
Technical Specifications
Parameter
AS - 2000 - LF
Power Supply
Three - phase AC220V/50 - 60HZ/1.5KW
Minimum Cutting Width
25CM
Maximum Cutting Dimensions (Length * Width * Thickness)
200180035 (mm) (Note: The width and length of the cut fabric can be customized)
