Material Diameter: The suitable material diameter ranges from 20mm to 300mm. Note that this does not represent the processing diameter, as the actual processing diameter depends on factors like material and product shape.
Processing Length: It can process workpieces with a length between 100mm and 1500mm. Customized specifications of 2 meters and 2.5 meters are also available.
Spindle Speed: The maximum spindle speed can reach 0 - 3000r/min, allowing for different processing speeds according to requirements.
Pneumatic Pressure: It operates under a pneumatic pressure of 0.6 - 0.8Mpa.
Maximum Processing Speed: The maximum processing speed is 200cm/min, ensuring efficient production.
Power Supply: It uses a three - phase 380V AC power supply, and a 220V power supply can be customized if needed.
Frequency: The applicable frequency is 50/60Hz.
Grooving and Engraving Spindle: It is equipped with a 3.5KW 380V air - cooled spindle, which is suitable for grooving and engraving operations.
Transmission Method: The X and Z axes adopt ball screws, the Y axis uses a rack, and it is equipped with Taiwan HIWIN 25 - square rails for smooth and accurate movement.
Control System: The control system is a Beijing - made DSP operation handle, which provides easy - to - use operation and precise control.
Main Rotating Shaft Speed: The main rotating shaft speed can be adjusted from 0 to 3000 revolutions per minute.
Main Rotating Motor and Inverter: It is powered by a 4KW three - phase asynchronous motor and a 5.5KW frequency converter, ensuring stable and adjustable power output.
Stepper Motor Drive: The stepper motors are driven by YKA2811MA from Yankong, with 450B450C motors, guaranteeing accurate movement control.
Tool Material: The machine uses high - quality alloy tools, which are wear - resistant and suitable for various woodworking operations.
Drawing Software: Autocad is used for drawing design.
File Formats: For turning, files in the *.DXF format are applicable, and for engraving, G - code files such as *.uoo, *.nc, and *.mmg are used.
Machine Weight and Dimensions: The net weight of the machine bed is 1500kg. When packed in a wooden box (wooden box for foreign trade, soft packaging for domestic), the box size is 3000mm12501750mm, and the total weight is 1600kg.
Grooving Spindle Direction: The grooving spindle direction is universally adjustable, providing more flexibility in processing.

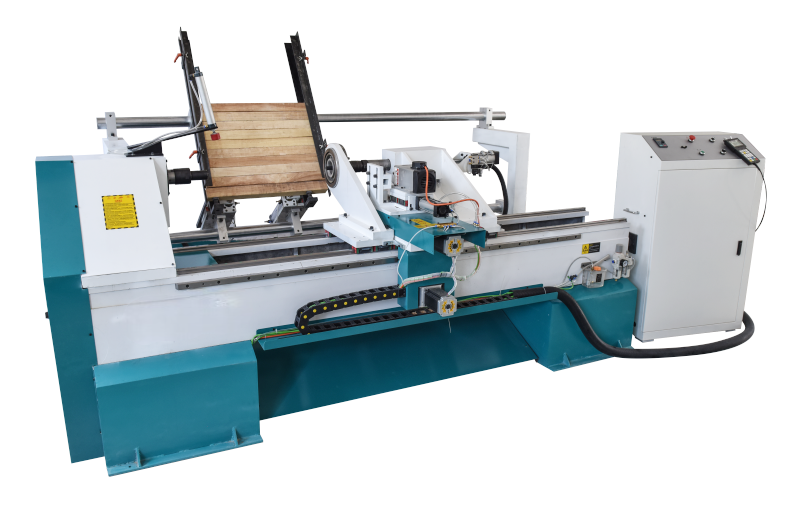

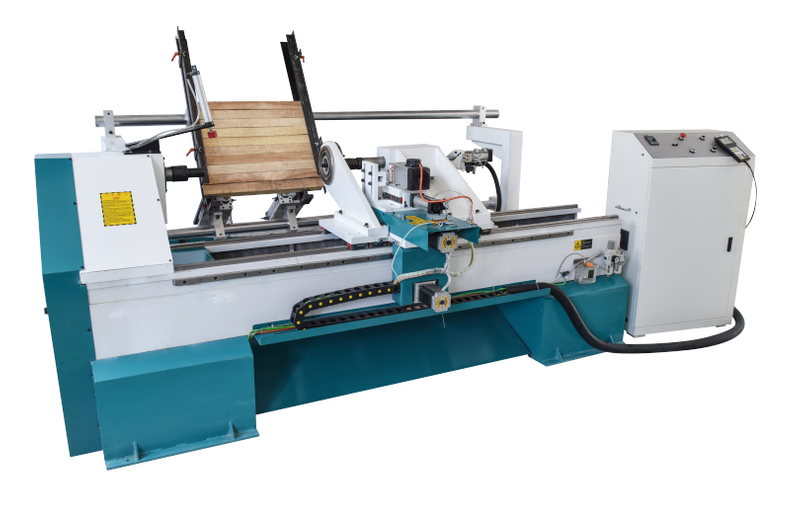

Automatic Loading Bracket Adjustment Range: The diameter adjustment range of the automatic loading bracket is 30 - 100, and the length adjustment range is 200 - 1200, adapting to different workpiece sizes.
Production Lead Time: The production time for a single machine is 10 - 20 days after receiving the deposit.
