Operating System: It is equipped with a DSP control handle, which provides convenient and simple operation. It also supports data transfer via USB flash drive, allowing for easy loading of design files.

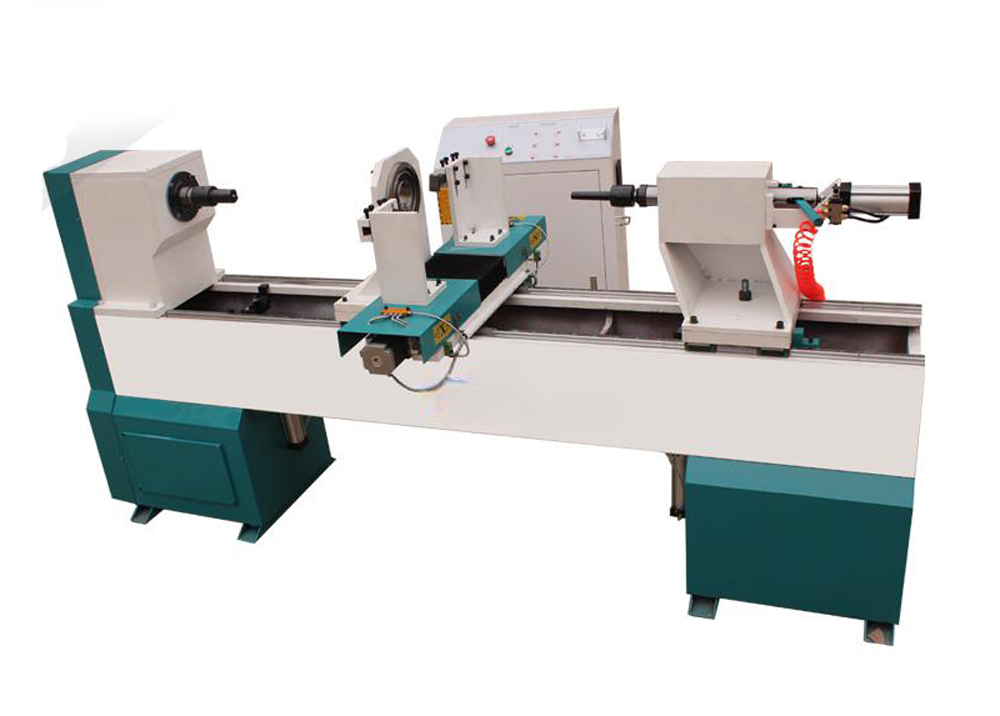

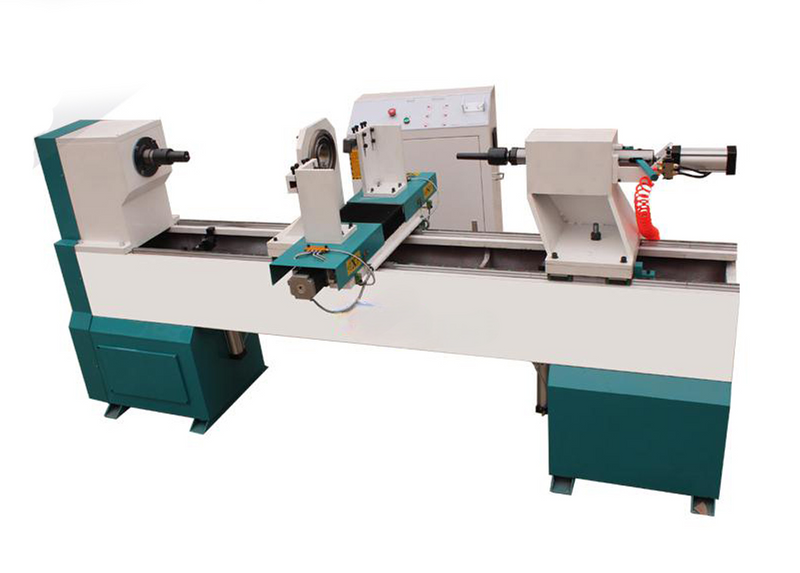

Auxiliary Structure: The lathe features a 1.6 - ton cast - iron bed that is 2.9 meters long. This heavy - duty cast - iron bed has excellent shock - absorbing properties, minimizing vibrations during operation and ensuring high stability, which is crucial for precision woodworking.
Power System: A variable - frequency speed - regulation system is employed. By adjusting the rotation speed, it can effectively address the issue of wood chattering, ensuring smooth and high - quality processing.
Driving Components: The lathe uses linear guides from Taiwan HIWIN (square rails with helical teeth) and ball screws from Taiwan TBI. These components contribute to high - precision movement and stable operation, enabling accurate shaping of woodwork.
Processing Capacity:
Material Diameter: The suitable material diameter ranges from 20mm to 300mm. Note that the actual processing diameter depends on factors such as material properties and the shape of the final product.
Processing Length: It can handle workpieces with a length between 100mm and 1500mm. Custom lengths of 2 meters and 2.5 meters are also available upon request.
Spindle Speed: The spindle speed can be adjusted from 0 to 3000 r/min, providing flexibility for different woodworking tasks.
Pneumatic Pressure: It operates under a pneumatic pressure of 0.6 - 0.8 Mpa.
Spindle Power: The spindle is powered by a 4.0KW motor, ensuring sufficient power for various wood - cutting operations.
Power Supply: It requires a three - phase 380V AC power supply, with a frequency of 50HZ.
Stable Structure: The 2.9 - meter - long, 1.6 - ton cast - iron bed effectively absorbs vibrations during operation. This stability is essential for achieving high - precision machining, reducing the risk of errors and ensuring the quality of the final product.
User - Friendly Operation: The DSP control handle simplifies the operation process. The ability to transfer data via USB flash drive and the long - length data cable facilitate tool setting and allow operators to monitor the processing in real - time, enhancing convenience and efficiency.
Precision and Smooth Operation: The use of HIWIN guide sliders and TBI ball screws ensures high - precision movement. The lathe can achieve smooth and accurate positioning, which is vital for producing complex woodwork with high - quality finishes.
Safe and Effective Speed Regulation: The variable - frequency speed - regulation system not only improves the quality of wood processing but also ensures safe operation. It allows operators to adjust the spindle speed according to the specific requirements of different wood materials and processing tasks.
Durable Finish: The lathe's bed is coated with automotive - grade paint, which offers excellent color - fastness. This means the paint does not fade or change color over time, maintaining the lathe's appearance and protecting it from corrosion.
