| Specification | Figures |
| Nominal force | 3500KN |
| Maximum hydraulic pressure | 25Mpa |
| Inside left and right columns | 900mm |
| Front and rear edges | 900mm |
| Opening size height | 1000mm |
| Cylinder stroke | 500mm |
| No load | 200mm |
| Working speed | 5-15mm |
| Return speed | 200mm |
| Equipment weight | 7Ton |
Products Features
1: Powerful Pressing Force: With a nominal force of 3500KN and a maximum hydraulic pressure of 25MPa, it can handle various heavy-duty pressing tasks.
2: Four-Column Structure Design: The four-column structure design ensures the stability and high precision of the equipment, suitable for demanding production environments.
3: Large Working Table: A large working table size of 900x900mm is suitable for handling large workpieces.
4: Efficient Operation: Equipped with an advanced hydraulic system and control system, providing fast and efficient operation performance.
Application
The 350-ton four-column hydraulic press is widely used in automotive manufacturing, aerospace, shipbuilding, and other fields. In these fields, the four-column hydraulic press can be used for forming and correcting automotive parts, precision pressing of aerospace components, and shaping and pressing large metal plates in shipbuilding. For example, in automotive manufacturing, the four-column hydraulic press can be used for high-precision forming of body parts; in the aerospace field, it is suitable for high-precision pressing and correcting various metal components.

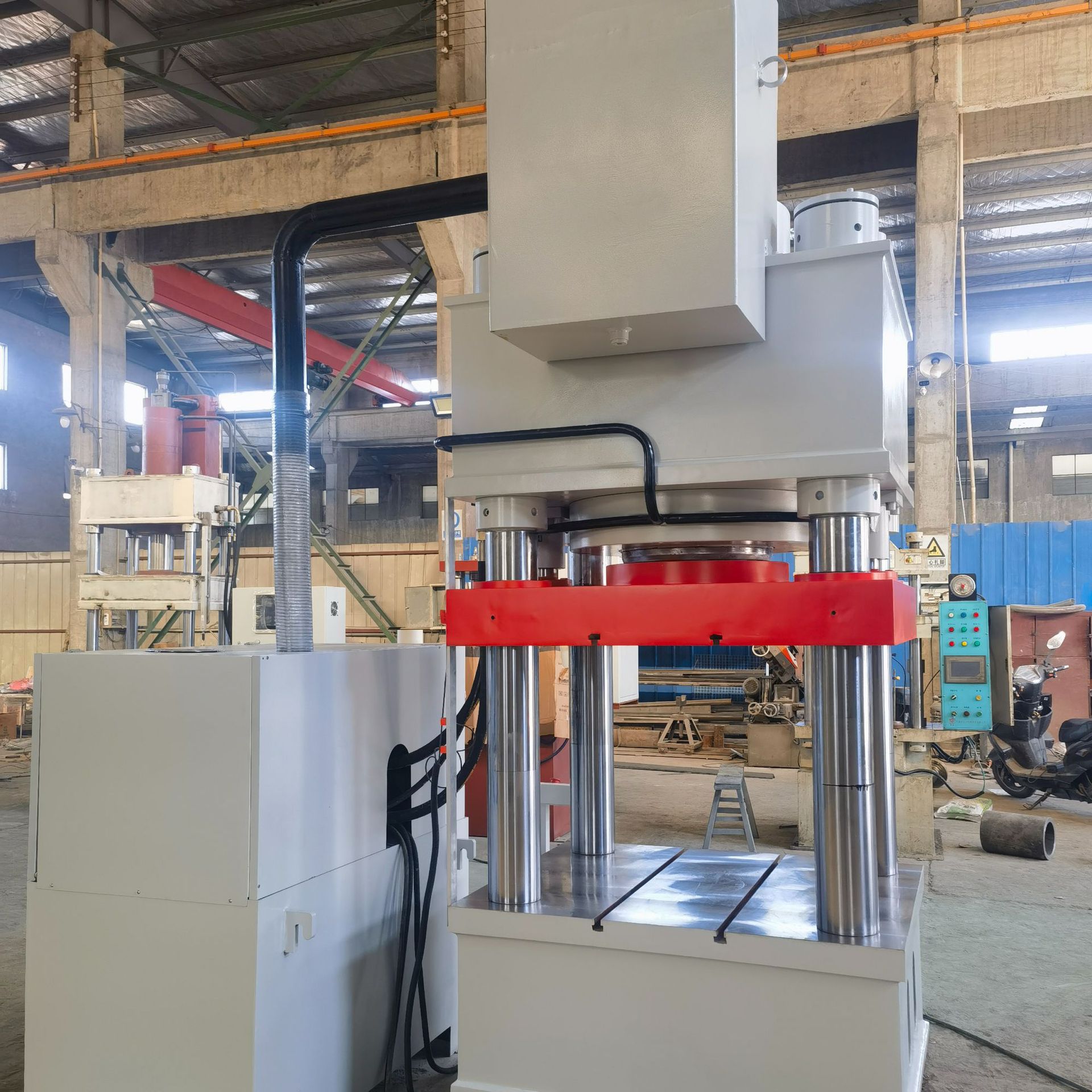

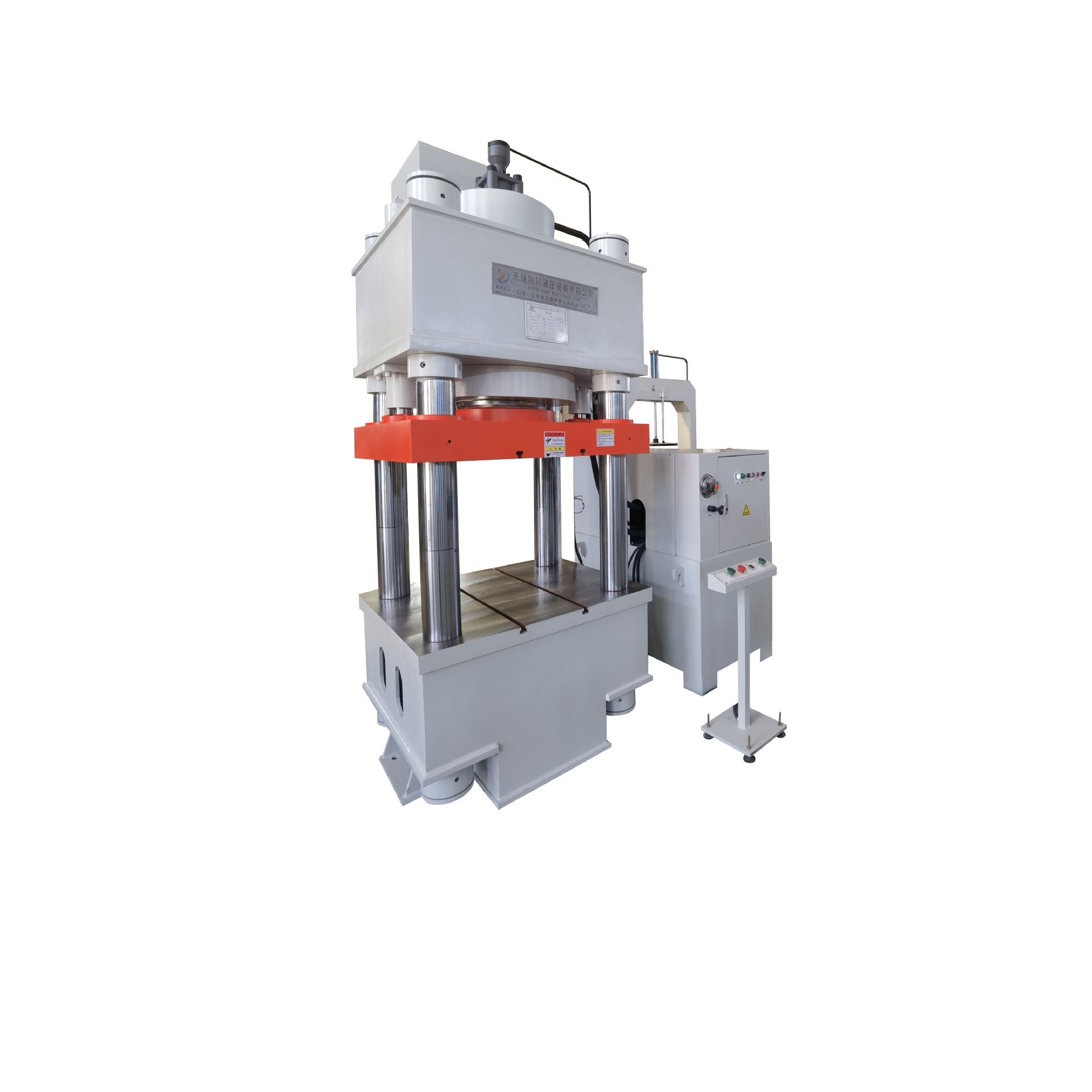

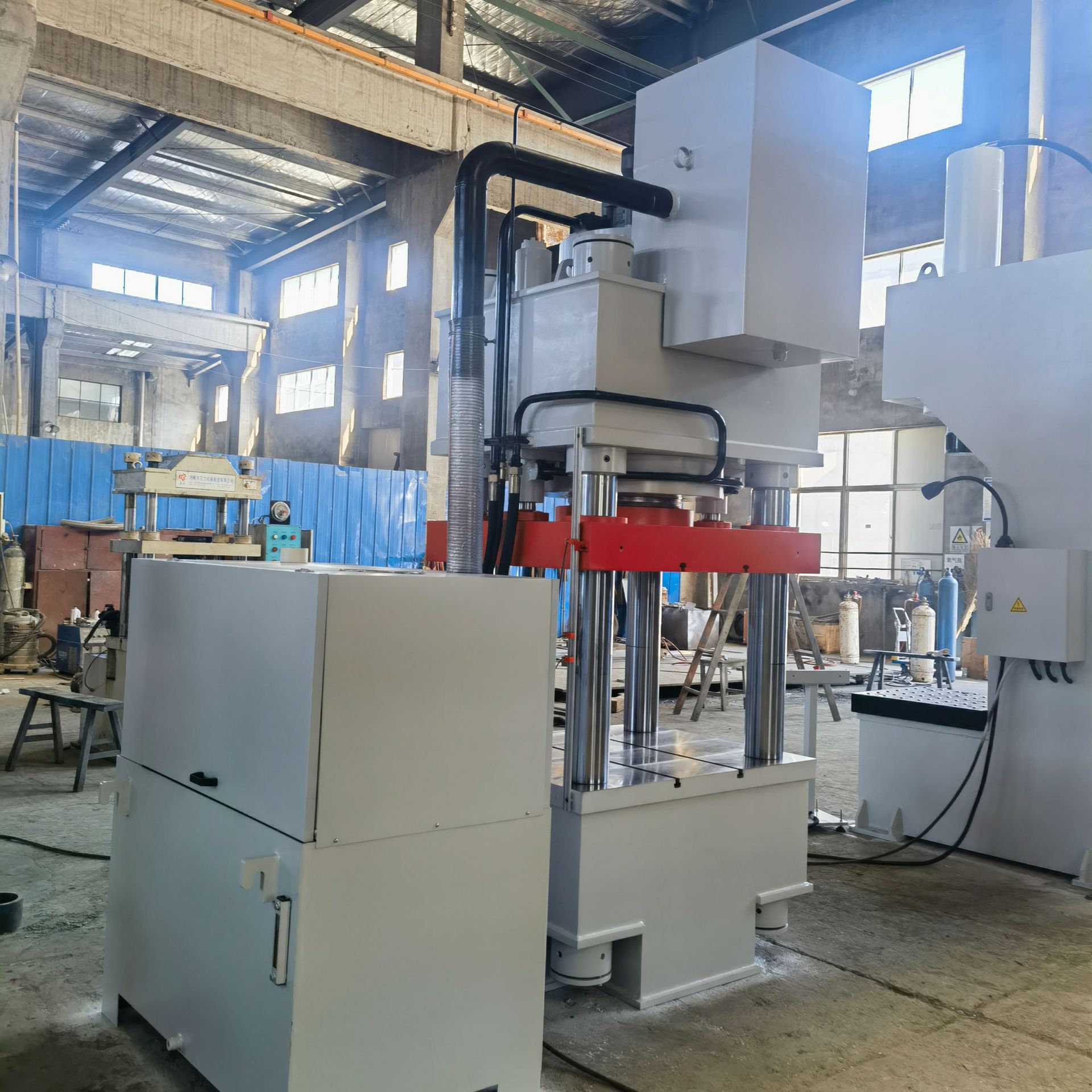

Products Pictures
| Specification | Figures |
| Nominal force | 3500KN |
| Maximum hydraulic pressure | 25Mpa |
| Inside left and right columns | 900mm |
| Front and rear edges | 900mm |
| Opening size height | 1000mm |
| Cylinder stroke | 500mm |
| No load | 200mm |
| Working speed | 5-15mm |
| Return speed | 200mm |
| Equipment weight | 7Ton |
Products Features
1: Powerful Pressing Force: With a nominal force of 3500KN and a maximum hydraulic pressure of 25MPa, it can handle various heavy-duty pressing tasks.
2: Four-Column Structure Design: The four-column structure design ensures the stability and high precision of the equipment, suitable for demanding production environments.
3: Large Working Table: A large working table size of 900x900mm is suitable for handling large workpieces.
4: Efficient Operation: Equipped with an advanced hydraulic system and control system, providing fast and efficient operation performance.
Application
The 350-ton four-column hydraulic press is widely used in automotive manufacturing, aerospace, shipbuilding, and other fields. In these fields, the four-column hydraulic press can be used for forming and correcting automotive parts, precision pressing of aerospace components, and shaping and pressing large metal plates in shipbuilding. For example, in automotive manufacturing, the four-column hydraulic press can be used for high-precision forming of body parts; in the aerospace field, it is suitable for high-precision pressing and correcting various metal components.
Products Pictures
