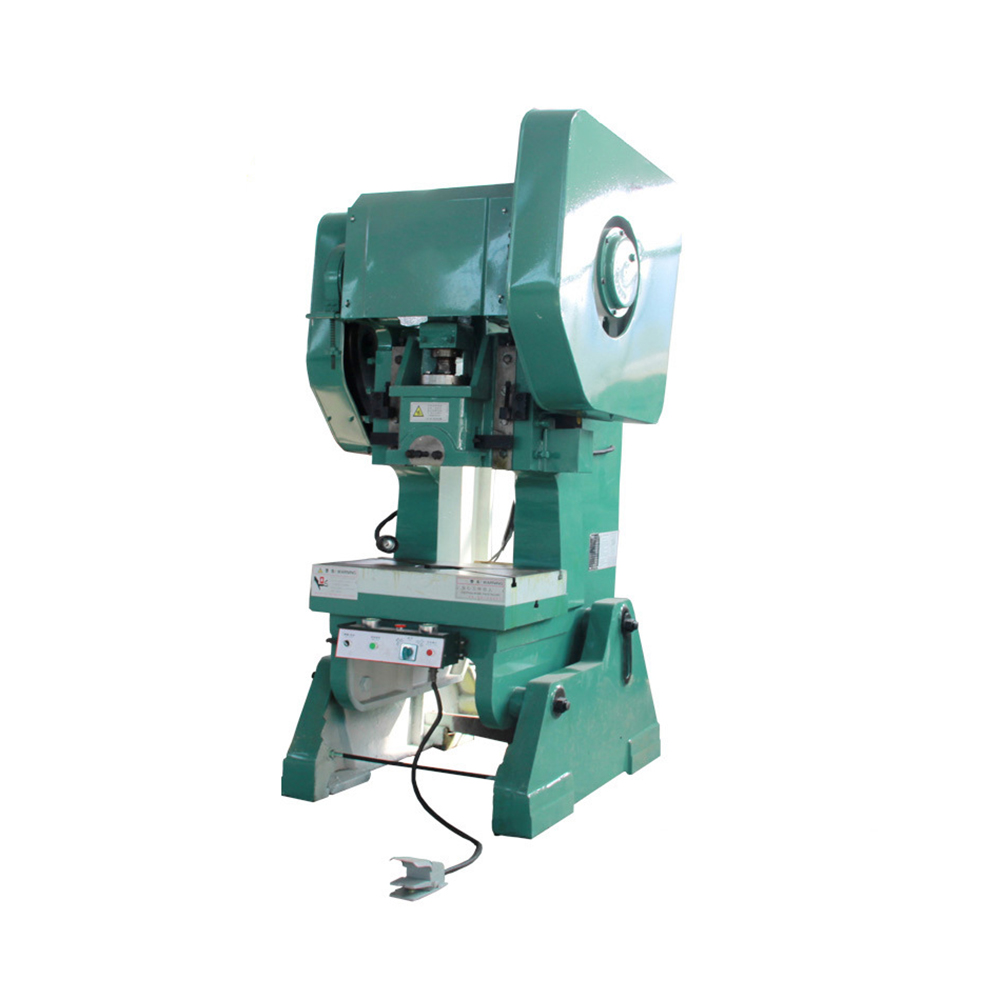

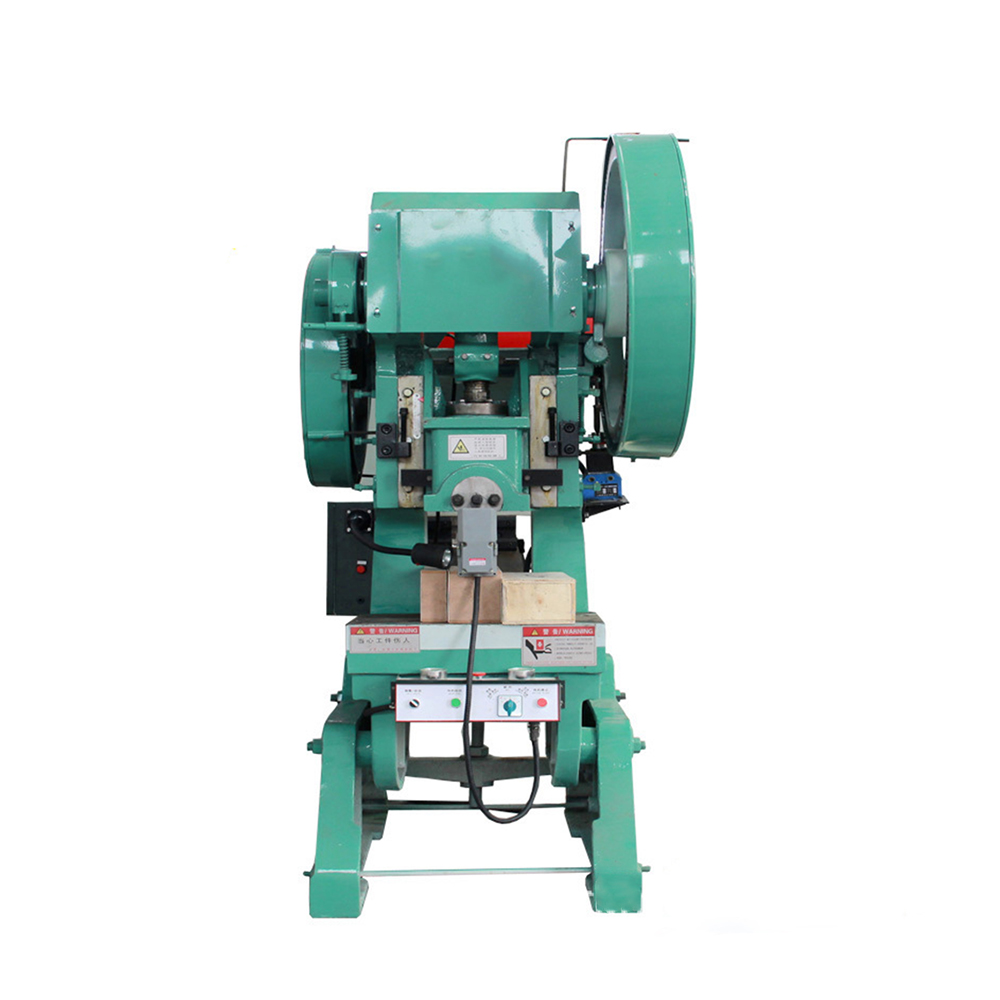

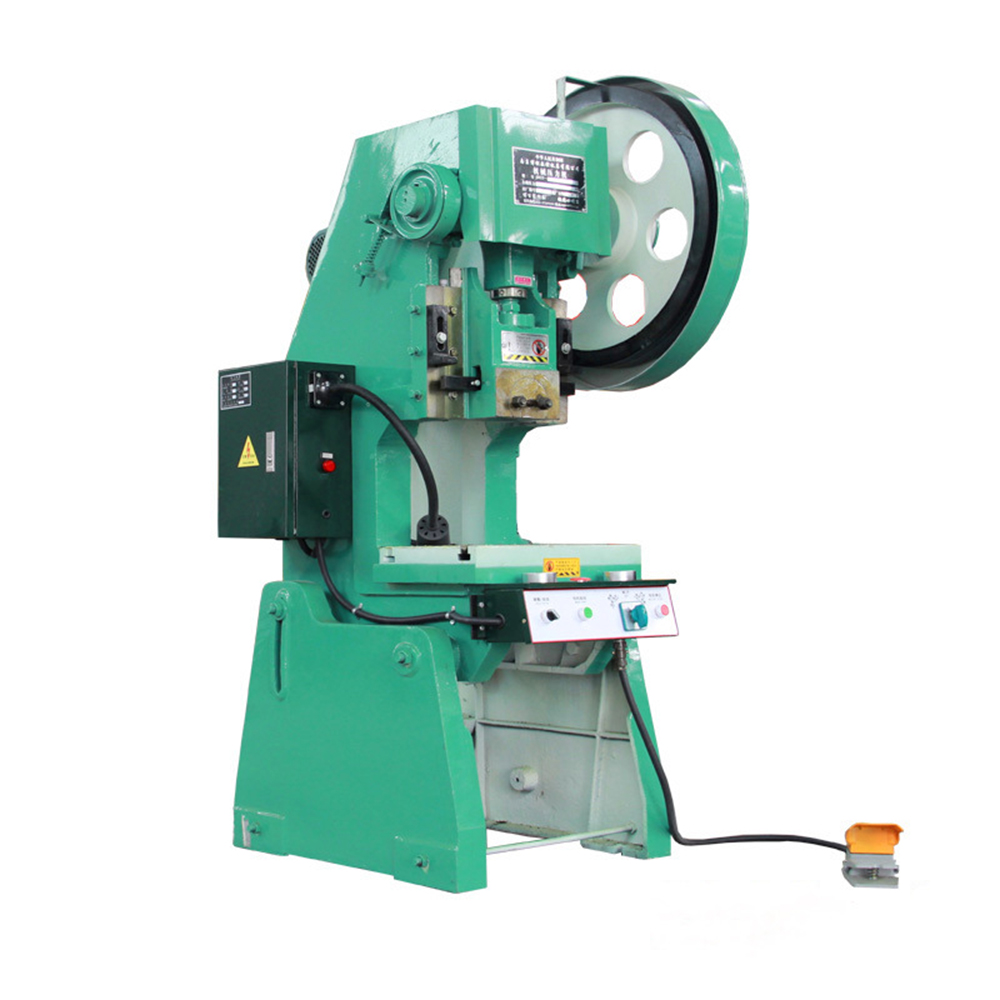

Vertical Small Deep Throat 40 Tons Punching Press Machine
Vertical Small Deep Throat 40 Tons Punching Press Machine Vertical Small Deep Throat 40 Tons Punching Press Machine
Vertical Small Deep Throat 40 Tons Punching Press Machine Vertical Small Deep Throat 40 Tons Punching Press Machine
Vertical Small Deep Throat 40 Tons Punching Press Machine Vertical Small Deep Throat 40 Tons Punching Press Machine
Vertical Small Deep Throat 40 Tons Punching Press Machine Vertical Small Deep Throat 40 Tons Punching Press Machine

loading

Vertical Small Deep Throat 40 Tons Punching Press Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The 40 Tons Vertical Small Deep Throat Punching Press Machine is designed to meet various precision punching processing needs and is widely used in industries such as electronic components, instrumentation, toys, military industry, light industry, decoration, sheet metal processing, hardware tools, metallurgy, shipbuilding, automotive, machinery, and solar energy. The machine is crafted with strict material selection, ensuring superior quality and excellent corrosion resistance, which extends the machine's service life. Its reasonable structural design makes operation more convenient, and the powerful punching force combined with low noise design ensures high efficiency and environmental protection.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Model 12T 16T 25T 40T 63T
Nominal pressure 120KN 160KN 250KN 400KN 630KN
Slider stroke 50mm 60mm 70mm 100mm 100mm
Number of slider strokes 160times/min 120times/min 70times/min 60times/min 60times/min
Closed height ≤210mm ≤250mm ≤290mm ≤330mm ≤370mm
Slider stroke adjustment 30mm 40mm 45mm 50mm 50mm
Mold hole size 30*50mm 35*50mm 40*50mm 50*50mm 50*50mm
Pad thickness 30mm 40mm 45mm 50mm 60mm
Machine body tilt angle 30° 30° 30° 30° 30°
Workbench size 350*220mm 455*290mm 525*320mm 640*400mm 680*420mm
Workbench hole size 95mm 100mm 110mm 130mm 150mm
Weight 300KG 500KG 1TON 2.1TON 2.7TON
Voltage power 380V1.1KW 380V1.5KW 380V2.2KW 380V4KW 380V4KW


Products Features

1: High-Quality Materials: Made with high-quality materials, offering excellent corrosion resistance and long-lasting service life.

2: Powerful Punching Force: Delivers 40 tons of powerful punching force to meet various precision processing needs.

3: Low Noise: Operates with low noise, minimizing impact on the working environment.

4: Safe and Reliable: Robust and durable equipment ensures safety during operation.

Application
The 40 Tons Vertical Small Deep Throat Punching Press Machine excels in industries requiring high precision and high-efficiency processing. For instance, in the manufacturing of electronic components, this machine can perform precise punching efficiently, ensuring product consistency and quality. In the automotive manufacturing sector, it is ideal for punching sheet metal parts, providing stable punching force and precise forming effects. Additionally, it performs excellently in heavy industries such as sheet metal processing, metallurgy, and shipbuilding, capable of handling various complex processing tasks.

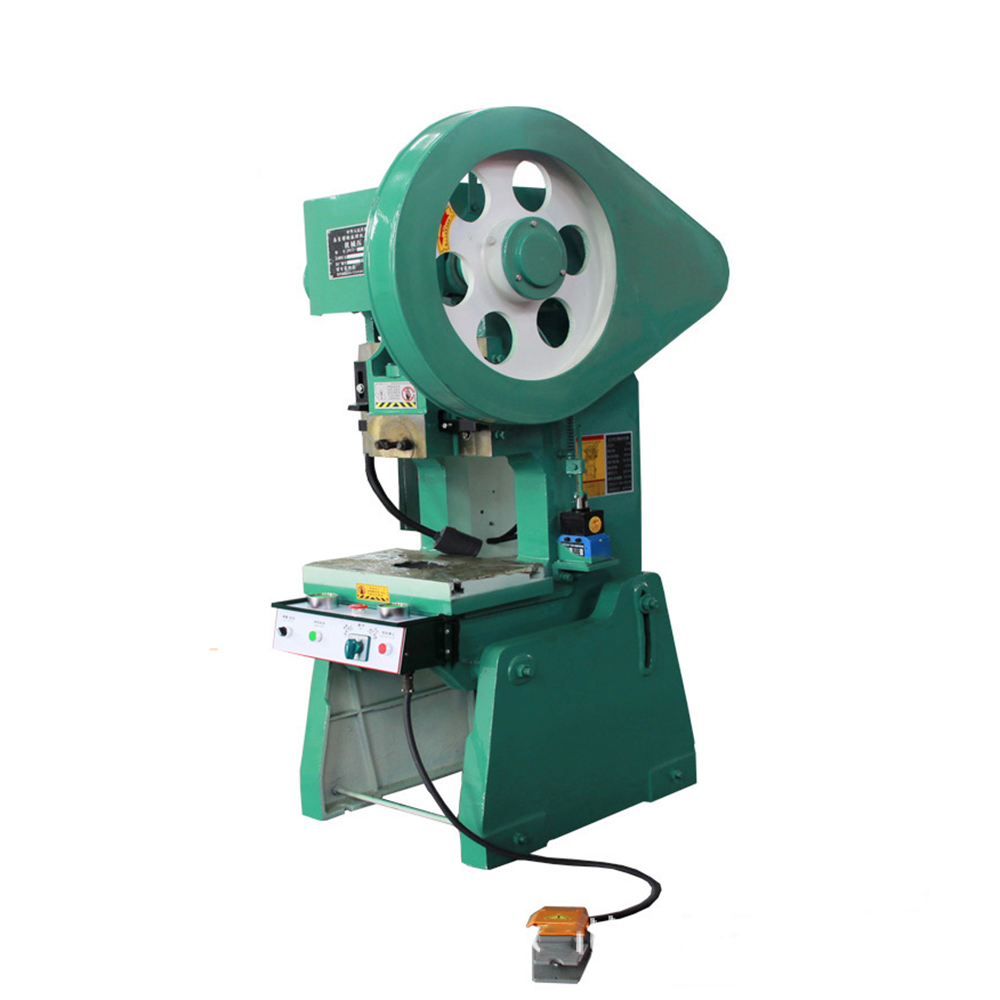

Products Pictures

主图
