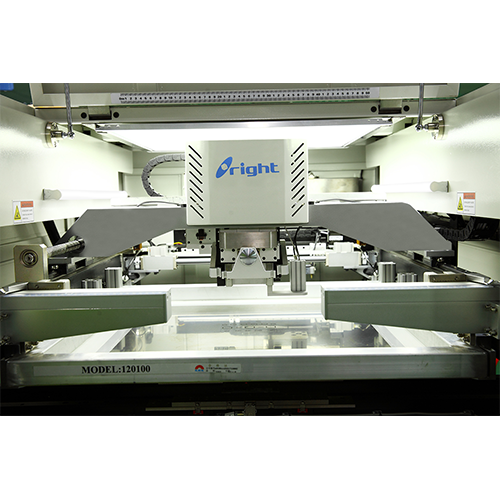

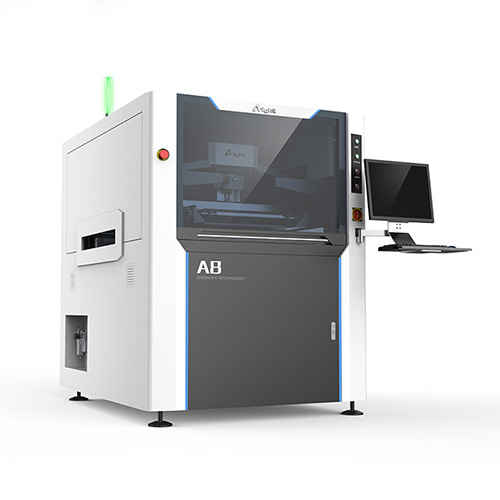

Product Technical Key Points
user-friendly design
Wide applicability and strong universality
Unique spray type automatic cleaning system
Efficient and energy-saving wiping paper saving structure

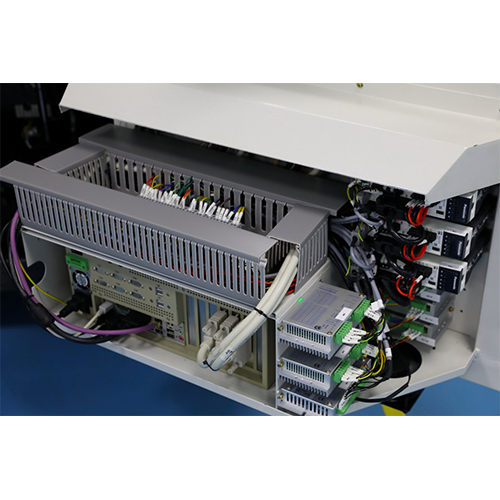

Unique image processing system
Intelligent printing production mode
Printing range: 400 * 340mm

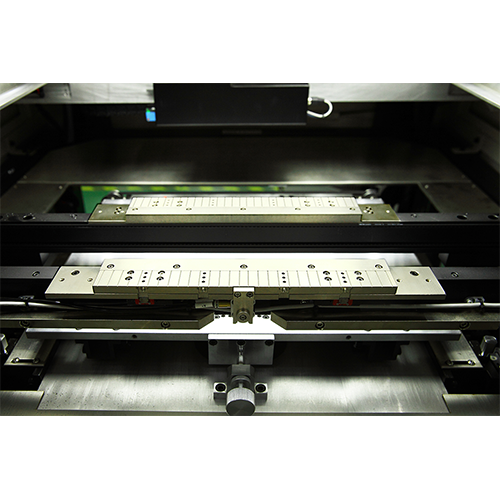

Adopting the internationally recognized UVW three-axis linkage platform
Machine dimensions: 1220X1355X1500mm
The machine is equipped with automatic tinning function, automatic steel mesh blockage detection function, automatic dispensing function, and scraper pressure feedback function
Automatic MSE/SPI online function, automatic temperature and humidity control function
| Parameter | Details |
|---|---|
| PCB Max Size | 460X340mm |
| Squeegee Type | Stainless steel (Standard), plastic steel blade standard, glue blade |
| Stencil Separation Option | First lift the squeegee then separate the stencil; first separate the stencil then lift the squeegee; maintain pressure while separating (area separation, line separation) |
| Squeegee Speed | 6 - 200mm/sec |
| Squeegee Pressure | 0 - 15Kg, controlled by motor |
| Squeegee Angle | 60° / 55° / 45° |
| Repeat Position Accuracy | ±0.008mm (CPK>2.0) |
| Printing Accuracy | ±0.02mm (CPK>2.0) |
| Cycle Time | <7s (Excluding Printing & Cleaning) |
| Product Changeover Time | <5Min |
| Air Required | 4.5 - 6Kg/cm² |
| Substrate Separation | First lift the squeegee then separate the stencil; first separate the stencil then lift the squeegee; maintain pressure while separating (area separation, line separation) |
| Squeegee Speed | 6 - 200mm/sec |
| Squeegee Pressure | 0 - 15Kg, controlled by motor |
| Squeegee Angle | 60° / 55° / 45° |
| Repeat Position Accuracy | ±0.008mm (CPK>2.0) |
| Printing Accuracy | ±0.02mm (CPK>2.0) |
| Cycle Time | <7s (Excluding Printing & Cleaning) |
| Product Changeover Time | <5Min |
| Air Required | 4.5 - 6Kg/cm² |
