Efficient and energy-saving wiping paper saving structure
Unique image processing system
Intelligent printing production mode
Printing range: 400 * 340mm/510 * 340mm
Adopting the internationally recognized UVW three-axis linkage platform
Machine dimensions: 1220X1355X1500mm
The machine is equipped with automatic tinning function, automatic steel mesh blockage detection function, automatic dispensing function, and scraper pressure feedback function
Automatic MSE/SPI online function, automatic temperature and humidity control function
Parameter
Details
Repeat Position Accuracy
±0.01mm
Printing Accuracy
±0.025mm
Cycle Time
<7s (Excluding Printing & Cleaning)
Product Changeover Time
<5Min
Air Required
4.5 - 6Kg/cm²
Power Input
AC:220 ± 10%, 50/60HZ 1Φ 3KW
Control Method
PC Control
Machine Dimensions
1220(L)×1355(W)×1500(H)mm
Machine Weight
Approx. 1000Kg
Product Technical Key Points
user-friendly design
Wide applicability and strong universality
Unique spray type automatic cleaning system

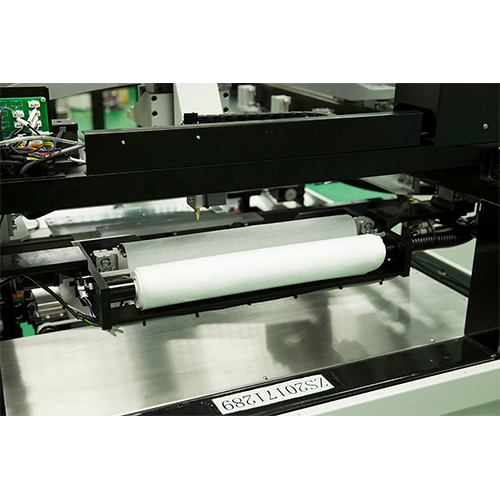

Efficient and energy-saving wiping paper saving structure
Unique image processing system
Intelligent printing production mode
Printing range: 400 * 340mm/510 * 340mm
Adopting the internationally recognized UVW three-axis linkage platform
Machine dimensions: 1220X1355X1500mm
The machine is equipped with automatic tinning function, automatic steel mesh blockage detection function, automatic dispensing function, and scraper pressure feedback function
Automatic MSE/SPI online function, automatic temperature and humidity control function
