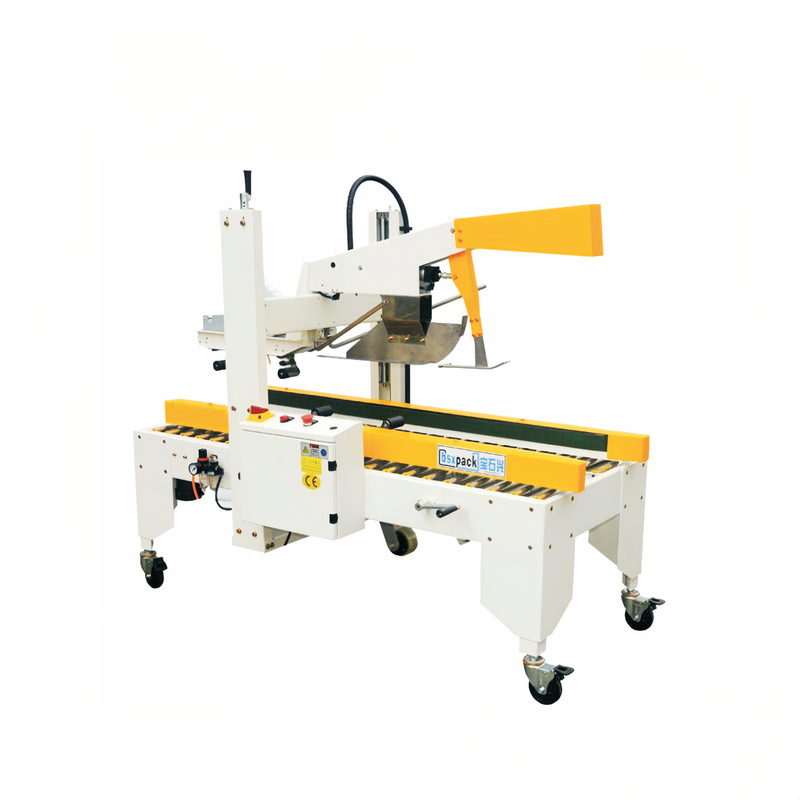

The CY5060 automatic flap folding case sealer uses BOPP tape to seal cartons in a straight “I” shape on both top and bottom. It automatically folds the top flaps and seals efficiently. Carton size adjustments are done manually and completed in under 1 minute. Side motor-driven belts and auxiliary wheels ensure smooth carton alignment and sealing. The machine is equipped with a safety blade guard and heavy-duty casters with brakes for flexible positioning.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: Automatic top flap folding

Automatically folds the top flaps and seals top & bottom in one pass.


2: Quick manual size adjustment

Manual carton size changeover takes less than 1 minute, simple and efficient.


3: Smooth & accurate sealing

Side motor belts and auxiliary wheels ensure centered and secure seams.


4: Flexible and mobile design

Adjustable table height and 4 high-strength caster wheels with brakes.


5: Safe and durable

Equipped with a blade safety guard and built with long-lasting mechanical components.


Product Parameter:

ParameterSpecification
ModelCY5060 Automatic Flap Folding Carton Sealer
Sealing speed8–25 cartons/min
Max. carton sizeL600 × W500 × H500 mm (customizable)
Min. carton sizeL320 × W150 × H120 mm (customizable)
Applicable tape width48–72 mm × L1000 yd
Power supply220V, 400W
Table height600–750 mm (adjustable/customizable)
Air supply6–7 kg/cm²
Machine dimensions1800 mm (L) × 920 mm (W) × 1400 mm (H)
Machine weight222.5 kg


Previous:
Next:
CY5060 Automatic Flap Folding Carton Sealing Machine
KEEP IN TOUCH WITH US
Leave a Message
KEEP IN TOUCH WITH US

Related Products

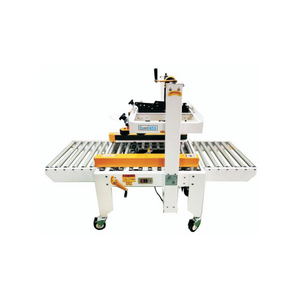

CY5050 Left and Right Drive Sealing Machine
