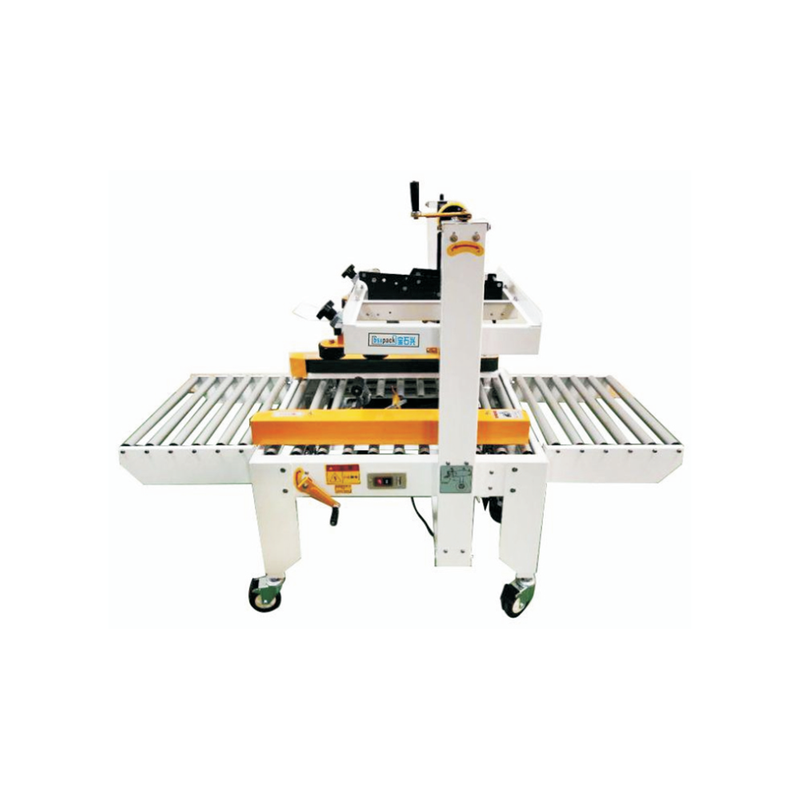

CY5050 Left and Right Drive Sealing Machine
CY5050 Left and Right Drive Sealing Machine CY5050 Left and Right Drive Sealing Machine

loading

CY5050 Left and Right Drive Sealing Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The CY5050 Side-Drive Carton Sealer uses BOPP tape to seal the top and bottom of cartons simultaneously in a straight-line "I"-type pattern. Driven by dual-side motorized belts, it ensures stable and smooth carton conveying, making it especially suitable for lightweight, narrow, and low-height cartons. The machine includes auxiliary side rollers to help align and center the flaps during sealing, preventing seam splitting. Its elegant and practical design features a blade safety guard and allows manual adjustment for carton width, height, and table height.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: Side-drive belt system

Dual motorized side belts provide smooth, accurate carton alignment and conveyance, ideal for light or small boxes.


2: Simultaneous top and bottom sealing

Performs fast, stable "I-type" sealing on both carton surfaces with adjustable tape width support.


3: Easy manual adjustment

Carton width, height, and table height (600–750 mm) can be adjusted for various box sizes.


4: Safety & structure design

Equipped with a blade safety guard to prevent accidental injury during operation. Sleek, compact build with durable components.


Product Parameter:

ParameterSpecification
ModelCY5050 Side-Drive Carton Sealer
Sealing speed20–40 cartons/min
Max. carton sizeL Unlimited × W500 × H500 mm (customizable)
Min. carton size3" head: L150 × W130 × H100 mm (customizable)
2" head: L200 × W100 × H100 mm (customizable)
Applicable tape width3": 48–72 mm × L1000 yd
2": 48 mm × L1000 yd
Power supply220V, 240W
Table height600–750 mm (adjustable)
Machine dimensions1820 mm (L) × 820 mm (W) × 1355 mm (H)
Machine weight124 kg


Previous:
Next:
CY5050 Left and Right Drive Sealing Machine
KEEP IN TOUCH WITH US
Leave a Message
KEEP IN TOUCH WITH US

Related Products

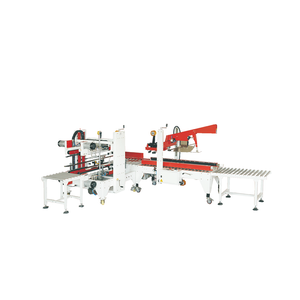

CY5060 Automatic Flap Folding Carton Sealing Machine
CY5060 Automatic Flap Folding Carton Sealing Machine

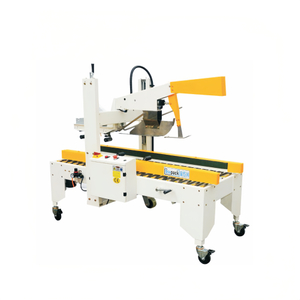

CY FC500+FG500L I-shaped Sealing Machine
