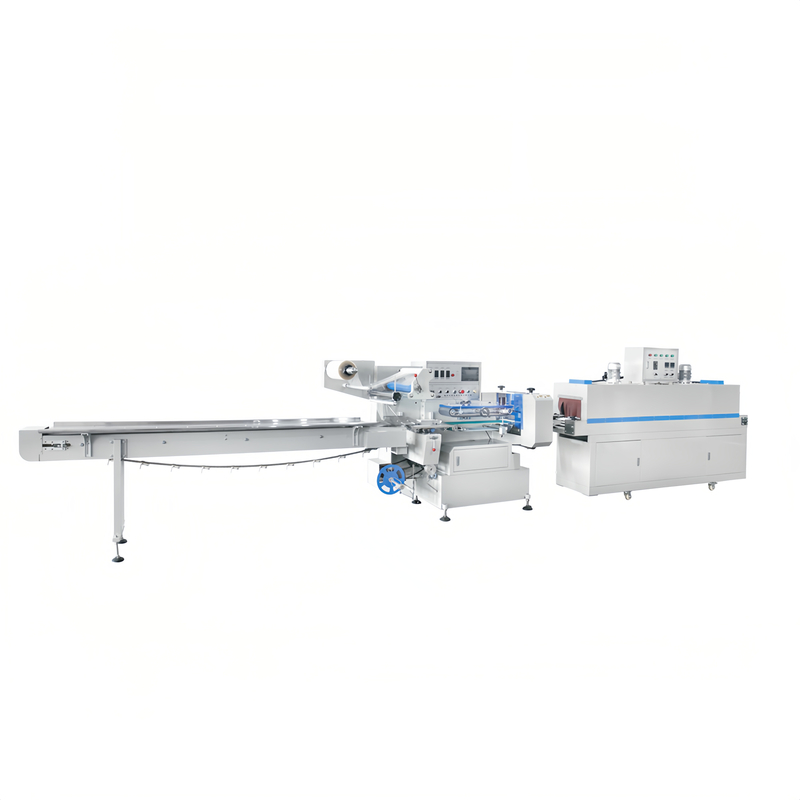

CY-590 Full-Servo High-Speed Shrink Packaging Machine
CY-590 Full-Servo High-Speed Shrink Packaging Machine CY-590 Full-Servo High-Speed Shrink Packaging Machine

loading

CY-590 Full-Servo High-Speed Shrink Packaging Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The CY-590 is a Japan-inspired, full-servo automatic shrink packaging machine designed for high-speed, high-precision applications. With imported components and PLC-controlled operation, it offers reliable performance, simple maintenance, and energy-efficient operation. Integrated with a dual-zone shrink oven and waste film recovery system, it achieves excellent packaging quality while saving up to 30% on film usage.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: Full-servo drive system ensures fast, precise packaging and stable performance.


2: High-sensitivity sensor + PID temperature control allows precise sealing on all types of films.


3: Color touch screen for user-friendly settings of speed, temperature, and bag length.


4: Automatic film waste recovery saves 20–30% material compared to traditional models.


5: Dual-zone shrink oven with hot air circulation and auto temp control for high-quality shrink finish.


Product Parameter:

Max Film Width≤590mm
Model120150180210240
Packing Size
L: Bag Length60–320mm100–450mm150–530mm180–600mm210–650mm
W: Product Width10–200mm10–200mm10–200mm10–200mm10–250mm
H: Product Height5–35mm35–70mm65–100mm80–130mm100–150mm
Packing Speed30–150 pcs/min30–150 pcs/min30–135 pcs/min30–100 pcs/min30–80 pcs/min
Film TypePVC, POF, other heat-shrinkable films
Power ConsumptionPacking machine: 4.75KW; Shrink tunnel: 13.5KW
Power SupplyMain machine: 220V 50/60Hz
Shrink tunnel: 380V 50/60Hz
Main Machine Size4800 × 1170 × 1500mm
Shrink Tunnel Size2600 × 600 × 1700mm
Chamber: 2300 × 250 × 200mm
WeightMain machine: 760KG
Shrink tunnel: 380KG
