CY-6040AF+BSE-5040A Cuff Packing Machine
CY-6040AF+BSE-5040A Cuff Packing Machine CY-6040AF+BSE-5040A Cuff Packing Machine

loading

CY-6040AF+BSE-5040A Cuff Packing Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

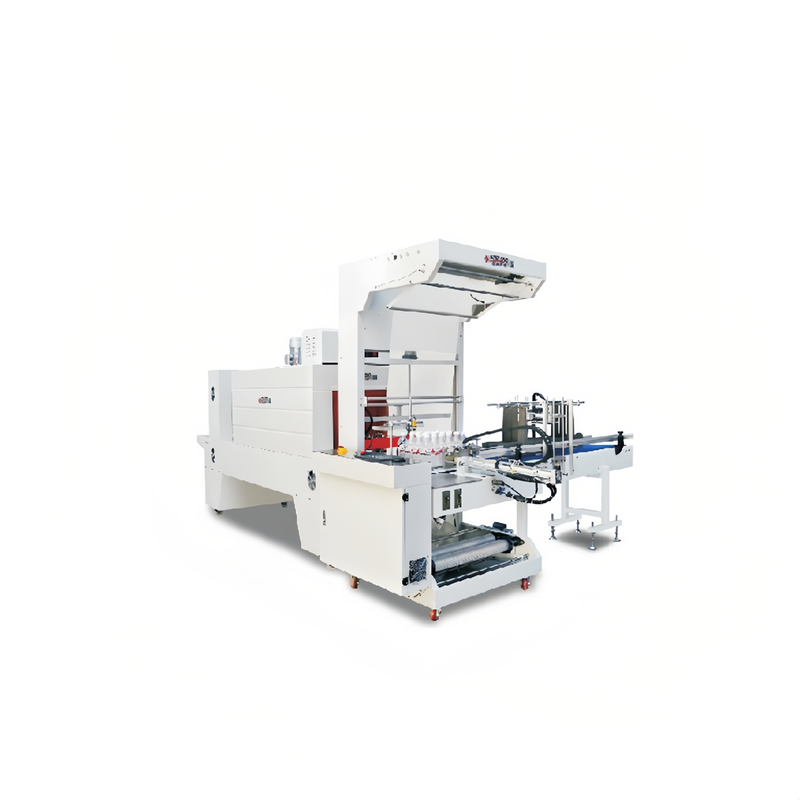

The FL-6040AF sleeve wrapper, paired with the BSE5040A shrink tunnel, is a fully automatic shrink packaging solution ideal for bottled products such as beverages, pharmaceuticals, and glassware. With support for PE, POF, PVC, and PP films, this system achieves seamless, tray-less wrapping with a clean and appealing finish. Engineered with imported PLC and pneumatic components, it ensures smooth operation, intelligent control, and long-term reliability.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: Trayless shrink wrapping ideal for cans, bottles, and boxed products.


2: Large touch-screen HMI + PLC for smart and intuitive operation.


3: High-quality pneumatic components + safety system prevent miscuts and ensure safe operation.


4: Heavy-duty tunnel heater (20kW) with circulating airflow, delivers stable and perfect shrink finish.


5: Optional sample service – send your product and receive a free demo packaging sample.


Product Parameter:

ModelFL-6040AFModelBSE5040A
Voltage110–220V / 50–60Hz (single phase)Voltage3 phase 220V/380v.50-60Hz
Power1.5kWPower0.12kw
Capacity0–10 pcs/minHeater Power20kw
Air Pressure0.4–0.6 MpaConveyer Speed0-10pcs/minute
Film Width / ThicknessMax. 600mm / 0.03–0.25mmTunnel Size1500x500x400mm
Max. Sealing SizeL600mm × W400mmConveyer Loading30KGS MAX
Min. Packing SizeL250 × W50 × H100mmMachine Size (L×W×H)2500x820x1680mm
Machine Size (L×W×H)1060 × 1600 × 1930mmMachine Weight470KGS
Machine Weight370kgShrink FilmPE,POF,PVC.PP
