CY K20TX Automatic Unpacking Machine
CY K20TX Automatic Unpacking Machine CY K20TX Automatic Unpacking Machine

loading

CY K20TX Automatic Unpacking Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

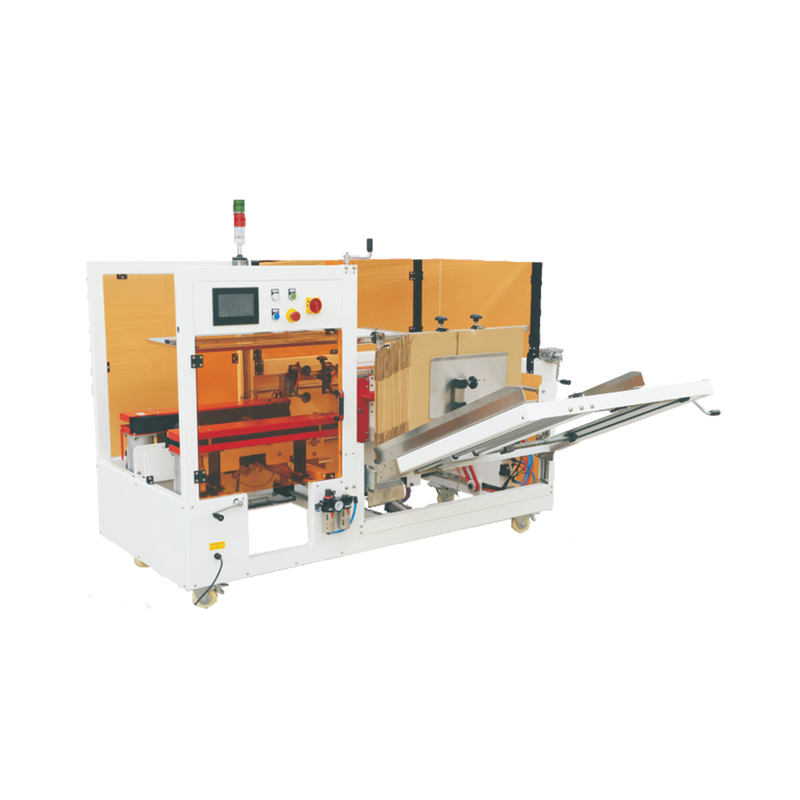

This standard automatic carton forming and bottom sealing machine adopts a pneumatic forming mechanism to efficiently complete carton suction, forming, bottom folding, and sealing in one cycle. It supports batch operations for cartons of the same specification, with manual adjustments required when changing sizes. Suitable for standalone or in-line use in packaging lines across various industries such as logistics, electronics, and consumer goods.
SKU:
Availability:
Quantity:

Product Features:

1: Pneumatic forming mechanism

Adopts air cylinder structure; forming speed varies with carton size.


2: One-step forming & bottom sealing

Performs suction, forming, bottom folding, and sealing in a single operation.


3: Material shortage alarm system

Includes alerts for tape or carton shortage to avoid production interruption.


4: Vertical carton magazine

Allows on-the-fly carton replenishment without stopping the machine.


5: Batch-size adaptability

Ideal for bulk operations with same-size cartons; manual width and height adjustment required when changing sizes.


6: Standard table height: 650 mm

Compatible with standard production lines for easier integration.


7: Customizable for non-standard cartons

Special-size cartons (e.g., narrow-long, short-tall, low-wide) require customization.


Product Parameter:

ParameterSpecification
Applicable carton size (L)280–500 mm
Applicable carton size (W)160–400 mm
Combined size limitsL + W: 510–1000 mm; H + W/2: 300–620 mm
Forming speed8–10 cartons/min (stable)
Machine dimensions2050 mm (L) × 1950 mm (W) × 1450 mm (H)
Power supply220V / 380V, 50Hz
Air supply6 kgf/cm², 450 NL/min
Power consumption0.4 kW
Machine weight400 kg
Applicable tape widthW48 / W60 / W75 mm (choose one)
