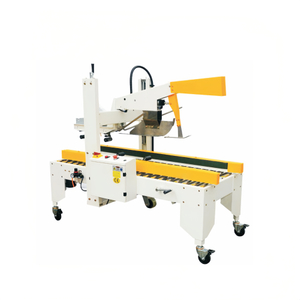

CY FC500+FG500L automatic H type carton sealing machine with integrated flap folding sealer
CY FC500+FG500L automatic H type carton sealing machine with integrated flap folding sealer CY FC500+FG500L automatic H type carton sealing machine with integrated flap folding sealer

loading

CY FC500+FG500L Automatic Carton Flap Folding & H-Type Sealing Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The automatic flap-folding “I-type” case sealer integrated with the four-corner “H-type” corner sealer forms an efficient L-shaped packaging line. Designed for batch processing of uniform carton sizes, it ensures smooth operation, precise sealing, and strong adaptability. Ideal for end-of-line packaging in industries such as electronics, food, and logistics.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: Integrated L-shaped sealing line

Combines automatic flap-folding “I-type” sealer and “H-type” four-corner sealing machine for efficient flow.


2: Standard left-turn configuration

Default direction is facing entry, turning left; right-turn layout requires customization.


3: Manual size adjustment

Supports same-size carton batches; width and height are adjusted manually when specifications change.


4: Durable tape head mechanism

High-precision, smooth operation, and long lifespan; non-standard customization available.


Product Parameter:


ParameterSpecification
Minimum carton sizeL340 × W200 × H180 mm
Maximum carton sizeL600 × W500 × H500 mm
Sealing speed6–8 cartons/min
Machine dimensions (I-type)L1700 × W930 × H1510 mm
Machine dimensions (H-type)L1910 × W1150 × H1500 mm
Power supply220V / 380V, 50Hz
Air supply6 kgf/cm², 100 NL/min
Power consumption1.0 kW
Applicable tape widthW48 mm / W60 mm / W75 mm (choose one)


Previous:
Next:
H type carton sealing machine L shaped packaging line automatic corner sealing equipment
