Machine Features:
1. High-Speed Continuous Packaging
Achieves 200–400 cycles per hour with fully automated forming, vacuumizing, sealing, and cutting—ideal for mass production.
2. Strong Vacuum Performance
Features a high-capacity vacuum system (≤200 Pa) ensuring superior air removal for optimal food preservation and extended shelf life.
3. Wide Product Compatibility
Suitable for meat, seafood, vegetables, fruits, pickles, snack foods, medical equipment, pharmaceuticals, hardware, and electronic components.
4. Dual-Film Stretch Technology
Supports forming film and sealing film with adjustable thickness ranges, ensuring stable packaging for different products and materials.
5. Heavy-Duty Stainless Steel Structure
The machine is built for industrial environments, offering durability, hygiene, and long-term operational stability.
Products Specification:
| Item | Specification |
| Machine Type | Continuous stretch vacuum packaging machine |
| Model | YS-ZDZK-320R |
| Power Supply | 380V, 50Hz, 3-phase |
| Machine Size | 4500 × 1030 × 1900 mm |
| Net Weight | 1500 kg |
| Working Speed | 200–400 cycles/hour |
| Compressed Air Pressure | ≥ 0.6 MPa |
| Air Consumption | 0.8–1 m³/min |
| Vacuum Pump Capacity | 100 m³/h |
| Vacuum Degree | ≤ 200 Pa |
| Total Power | 12 kW |
| Heating Power | 8 kW |
| Upper Film Width | 293 mm |
| Lower Film Width | 322 mm |
| Upper Film Thickness | 0.08–0.12 mm |
| Lower Film Thickness | 0.12–0.30 mm |
| Upper Film Roll Diameter | 250 mm |
| Lower Film Roll Diameter | 350 mm |
| Film Core Shaft Diameter | 76 mm (upper & lower) |
| Main Electrical Components | PLC, Inverters, Contactors, Relays, Servo Motors, Sensors, Pneumatic units |
| Packaging Applications | Food, meat, seafood, vegetables, fruits, snacks, pickles, medical equipment, hardware, electronics, pharmaceuticals |

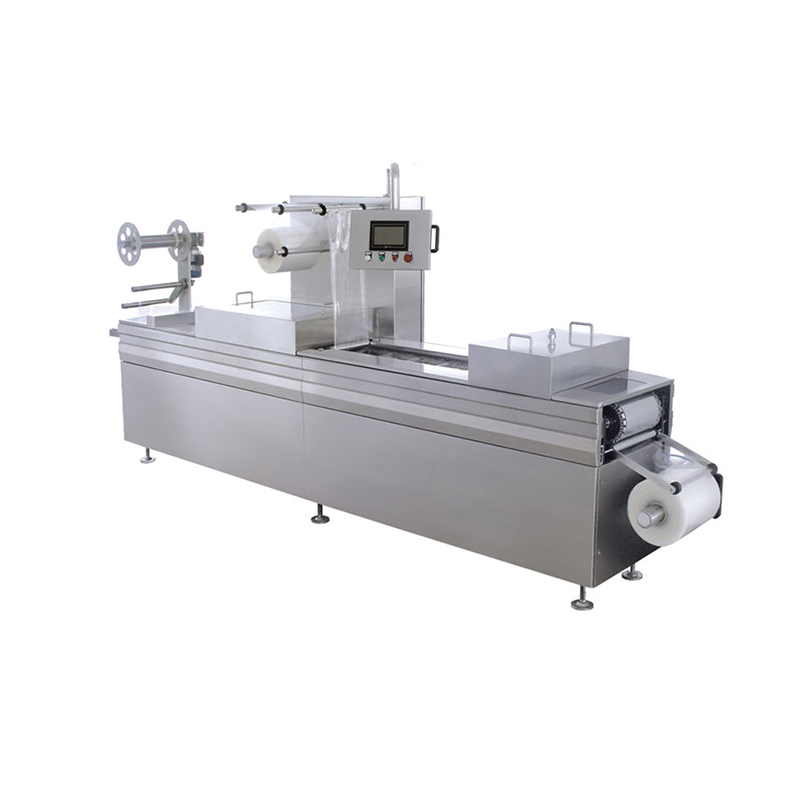

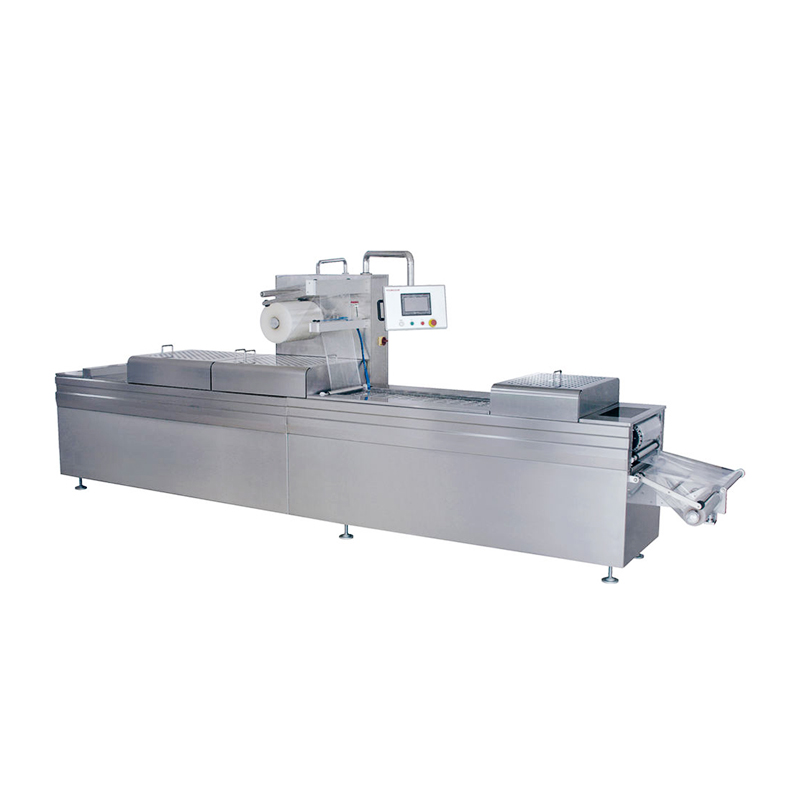

Products Pictures:
