Customize Your Cutting Tools!
At ASEANMACHINE, we offer comprehensive customization services for all types of milling cutters. Whether you need specific sizes, coatings, or cutting geometries, we precisely cater to your requirements. Enhance your machining accuracy and efficiency—choose us to tailor your tools for excellence.
Products Specification
| Product Name | Milling Cutter |
| Product Material | Hard Alloy |
| Coating | Bronze Coating |
| Helix Angle | 35° |
| Number of Flutes | 4 Flutes |
| Suitable Materials | Steel, Cast Iron, Copper (up to 40 degrees) |
| Applicable Machine | CNC Machining Centers, Milling Machines, Computer Gong, etc. |
| Product Specifications | Diameter of the Cutter | Length of the Cutter | Shank Diameter | Total Length |
| D1*3*D4*50L | 1 | 3 | 4 | 50 |
| D1.5*4*D4*50L | 1.5 | 4 | 4 | 50 |
| D2*5*D4*50L | 2 | 5 | 4 | 50 |
| D2.5*7*D4*50L | 2.5 | 7 | 4 | 50 |
| D3*8*D3*50L | 3 | 8 | 4 | 50 |
| D3*8*D4*50L | 3 | 8 | 4 | 50 |
| D3.5*9*D4*50L | 3.5 | 9 | 4 | 50 |
| D4*10*D4*50L | 4 | 10 | 4 | 50 |
| D4*16*D4*75L | 4 | 16 | 4 | 75 |
| D4*20*100L | 4 | 20 | 4 | 100 |
| D4.5*11*D6*50L | 4.5 | 11 | 6 | 50 |
| D5*13*D6*50L | 5 | 13 | 6 | 50 |
| D5.5*15*D6*50L | 5.5 | 15 | 6 | 50 |
| D6*15*D6*50L | 6 | 15 | 6 | 50 |
| D6*24*D6*75L | 6 | 24 | 6 | 75 |
| D6*30*D6*100L | 6 | 30 | 6 | 100 |
| D8*20*D8*60L | 8 | 20 | 8 | 60 |
| D8*25*D8*75L | 8 | 25 | 8 | 75 |
| D8*35*D8*100L | 8 | 35 | 8 | 100 |
| D10*25*D10*75L | 10 | 25 | 10 | 75 |
| D10*40*D10*100L | 10 | 40 | 10 | 100 |
| D12*30*D12*75L | 12 | 30 | 12 | 75 |
| D12*45*D12*100L | 12 | 45 | 12 | 100 |
| D14*45*D14*100L | 14 | 45 | 14 | 100 |
| D16*45*D16*100L | 16 | 45 | 16 | 100 |
| D18*45*D18*100L | 18 | 45 | 18 | 100 |
| D20*45*D20*100L | 20 | 45 | 20 | 100 |
| D6*45*D6*150L | 6 | 45 | 6 | 150 |
| D8*50*D8*150L | 8 | 50 | 8 | 150 |
| D10*55*D10*150 | 10 | 55 | 10 | 150 |
| D12*55*D12*150 | 12 | 55 | 12 | 150 |
| D14*60*D14*150L | 14 | 60 | 14 | 150 |
| D16*70*D16*150L | 16 | 70 | 16 | 150 |
| D18*70*D18*150L | 18 | 70 | 18 | 150 |
| D20*70*D20*150L | 20 | 70 | 20 | 150 |
Products Features
1: High-Temperature Coating: Offers durability during high-speed milling, allowing for smoother chip removal.
2: Passivation Treatment: Each cutter is passivated, enhancing its wear resistance and extending its lifespan.
3: High Precision and Wear Resistance: Ensures high precision and resistance to wear, providing long-lasting machining results.

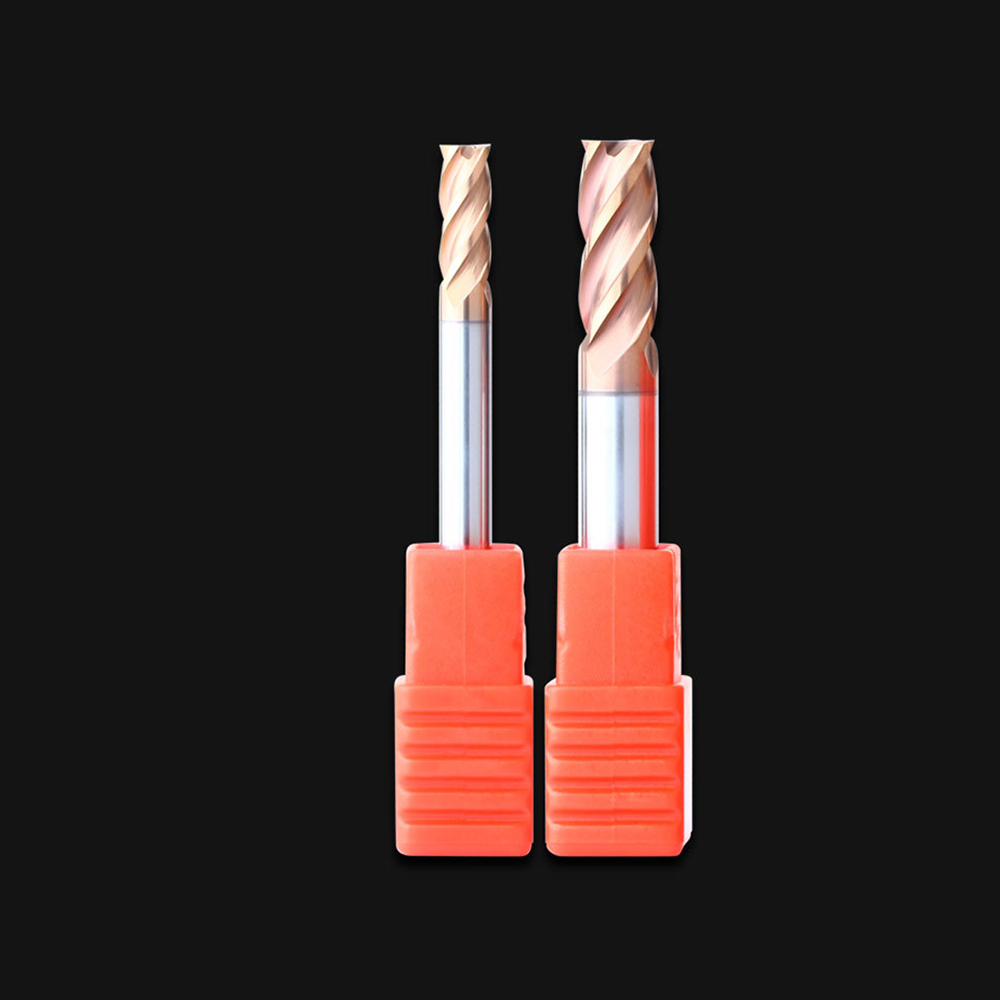

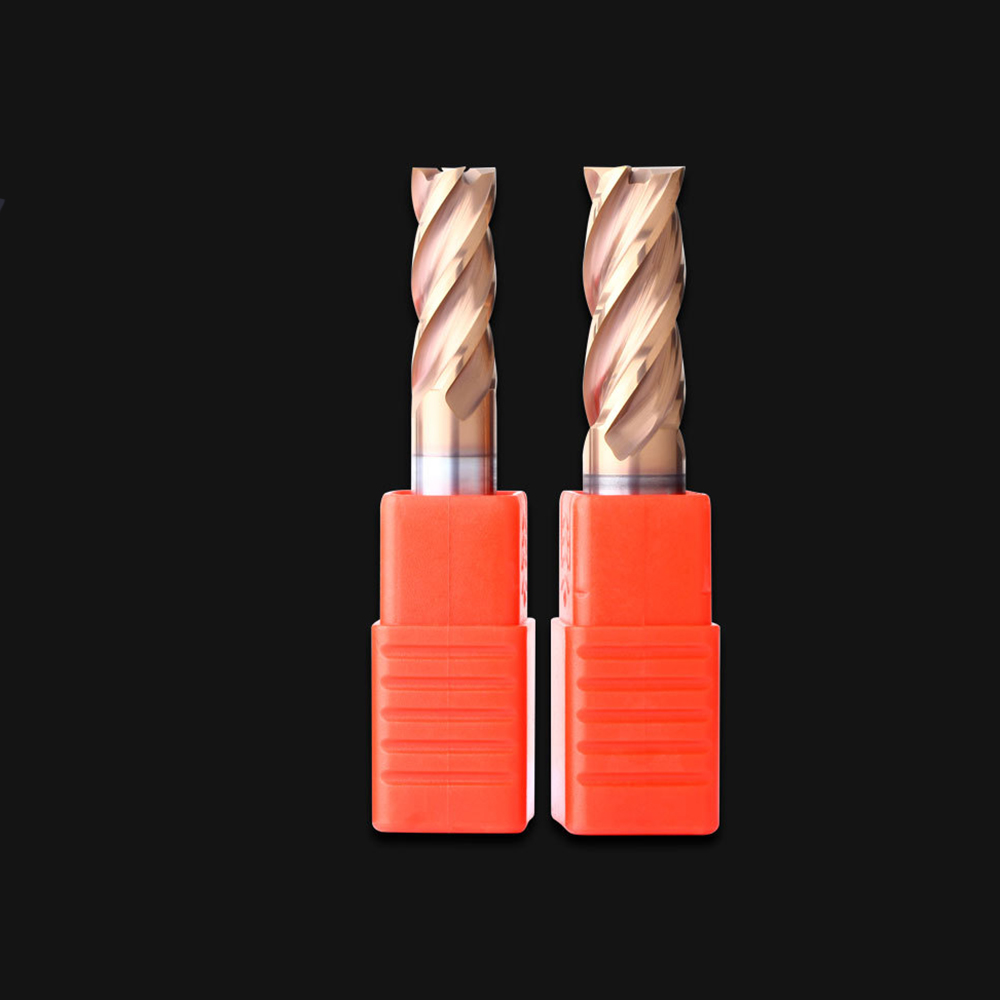

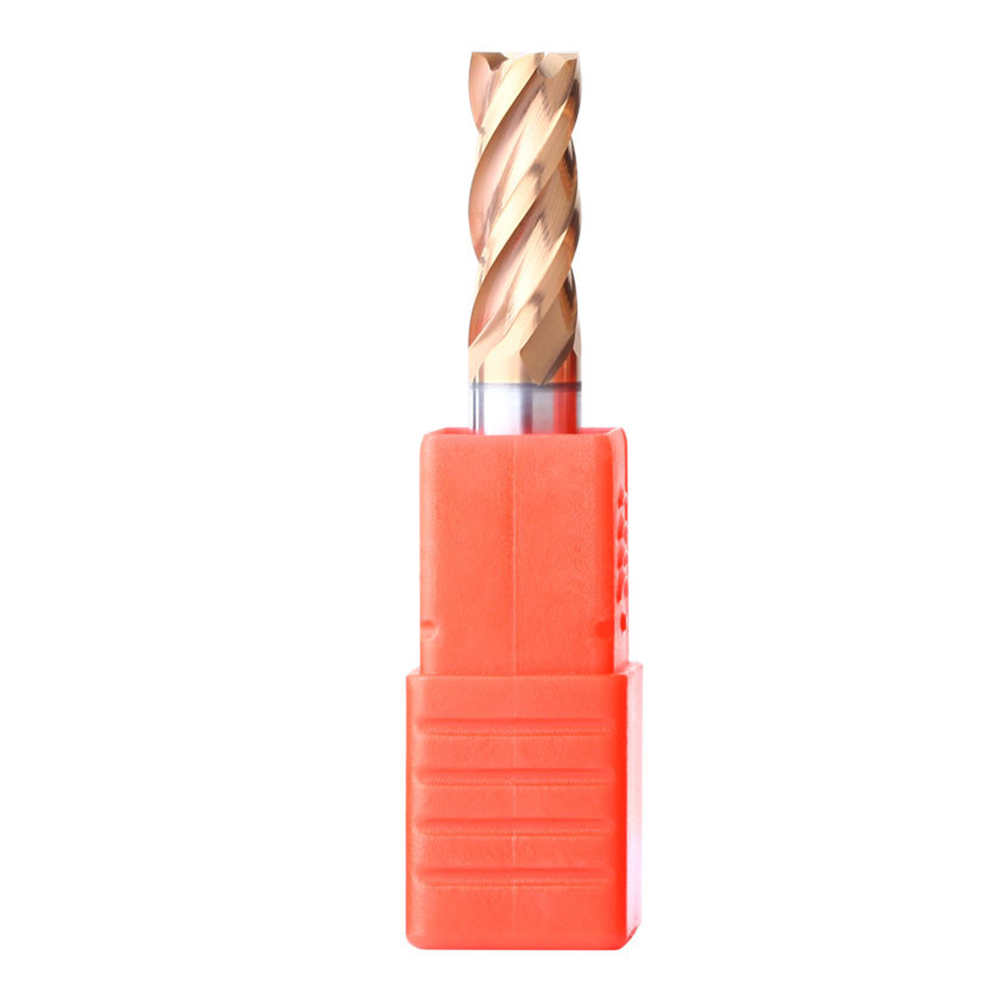

Products Pictures
