Customize Your Cutting Tools!
At ASEANMACHINE, we offer comprehensive customization services for all types of milling cutters. Whether you need specific sizes, coatings, or cutting geometries, we precisely cater to your requirements. Enhance your machining accuracy and efficiency—choose us to tailor your tools for excellence.
Products Specification
| Product Name | 55°tungsten steel milling cutter |
| Product Material | Tungsten steel hard alloy |
| Cutting Hardness | HRC55°-58° |
| Applicable materials | Carbon steel, alloy steel, cast iron |
| Flat blade specifications | |||
| Specification | Blade diameter(mm) | Blade length(mm) | Total length(mm) |
| 1.0*3*50 | 1 | 3 | 50 |
| 1.5*4*50 | 1.5 | 4 | 50 |
| 2.0*5*50 | 2 | 5 | 50 |
| 2.5*7*50 | 2.5 | 7 | 50 |
| 3.0*8*50 | 3 | 8 | 50 |
| 3.5*9*50 | 3.5 | 9 | 50 |
| 4*10*50 | 4 | 10 | 50 |
| 4*20*75 | 4 | 20 | 75 |
| 4*25*100 | 4 | 25 | 100 |
| 5*13*50 | 5 | 13 | 50 |
| 6*15*50 | 6 | 15 | 50 |
| 6*25*75 | 6 | 25 | 75 |
| 6*30*100 | 6 | 30 | 100 |
| 8*20*60 | 8 | 20 | 60 |
| 8*25*75 | 8 | 25 | 75 |
| 8*35*100 | 8 | 35 | 100 |
| 10*25*75 | 10 | 25 | 75 |
| 10*40*100 | 10 | 40 | 100 |
| 12*30*75 | 12 | 30 | 75 |
| 12*45*100 | 12 | 45 | 100 |
| 14*35*80 | 14 | 35 | 80 |
| 14*45*100 | 14 | 45 | 100 |
| 16*45*100 | 16 | 45 | 100 |
| 18*45*100 | 18 | 45 | 100 |
| 20*45*100 | 20 | 45 | 100 |
| 6*30*150 | 6 | 30 | 150 |
| 8*40*150 | 8 | 40 | 150 |
| 10*50*150 | 10 | 50 | 150 |
| 12*60*150 | 12 | 60 | 150 |
| 14*60*150 | 14 | 60 | 150 |
| 16*60*150 | 16 | 60 | 150 |
| 18*60*150 | 18 | 60 | 150 |
| 20*60*150 | 20 | 60 | 150 |
Products Features
1: High Wear Resistance and Strength: Made from micro-grain tungsten steel, it provides superior wear resistance and strength, suitable for high-speed cutting.
2: Large Core Diameter Design: Enhances rigidity and deformation resistance, improving tool wear resistance and sharpness, effectively extending its lifespan.
3: Passivation Treatment: The tool undergoes passivation treatment to increase its wear resistance, enabling smoother cutting and further prolonging its life.

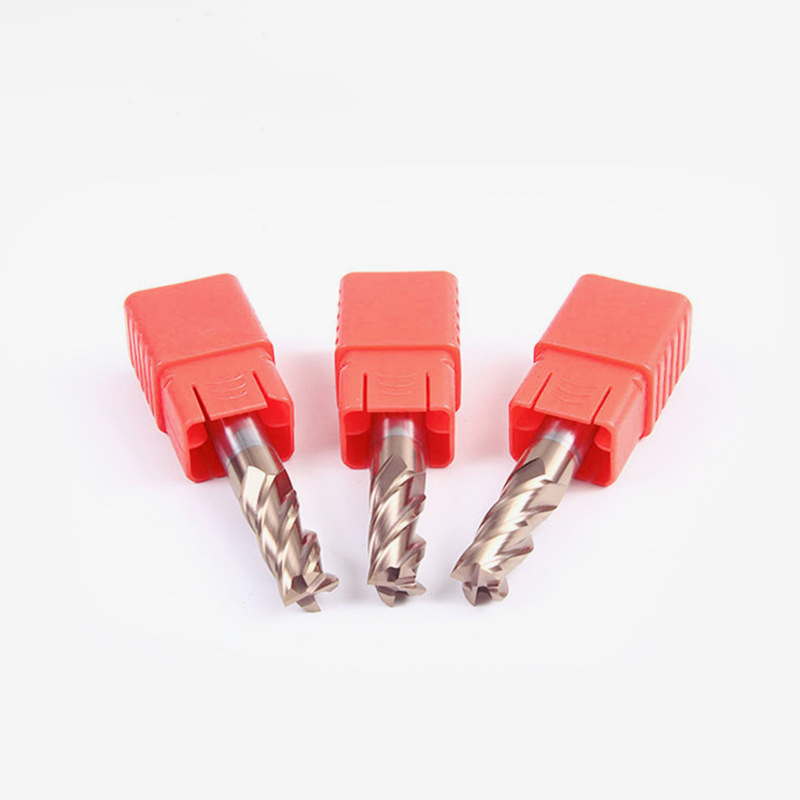

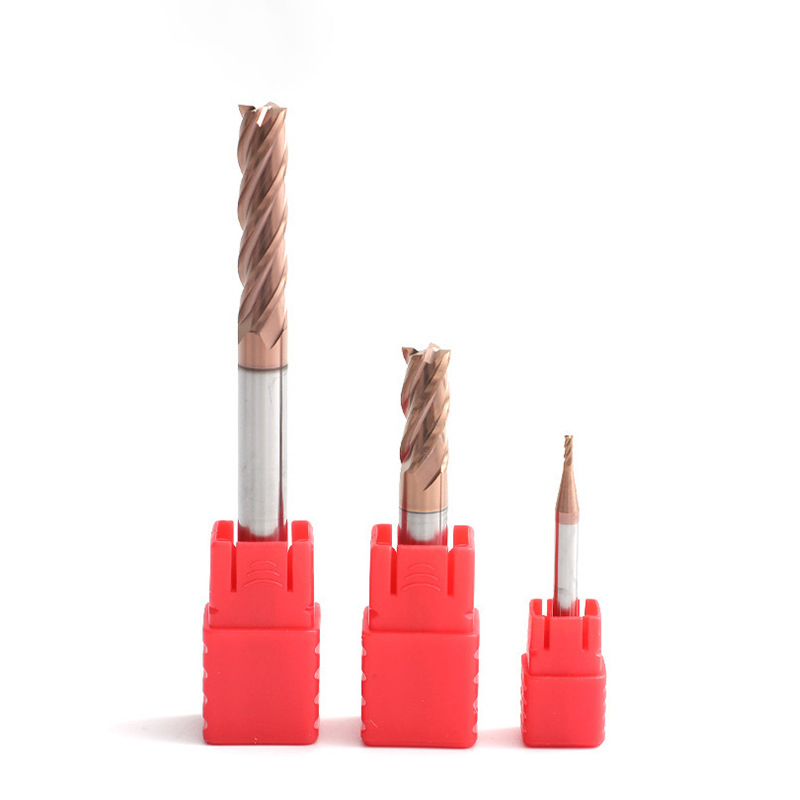

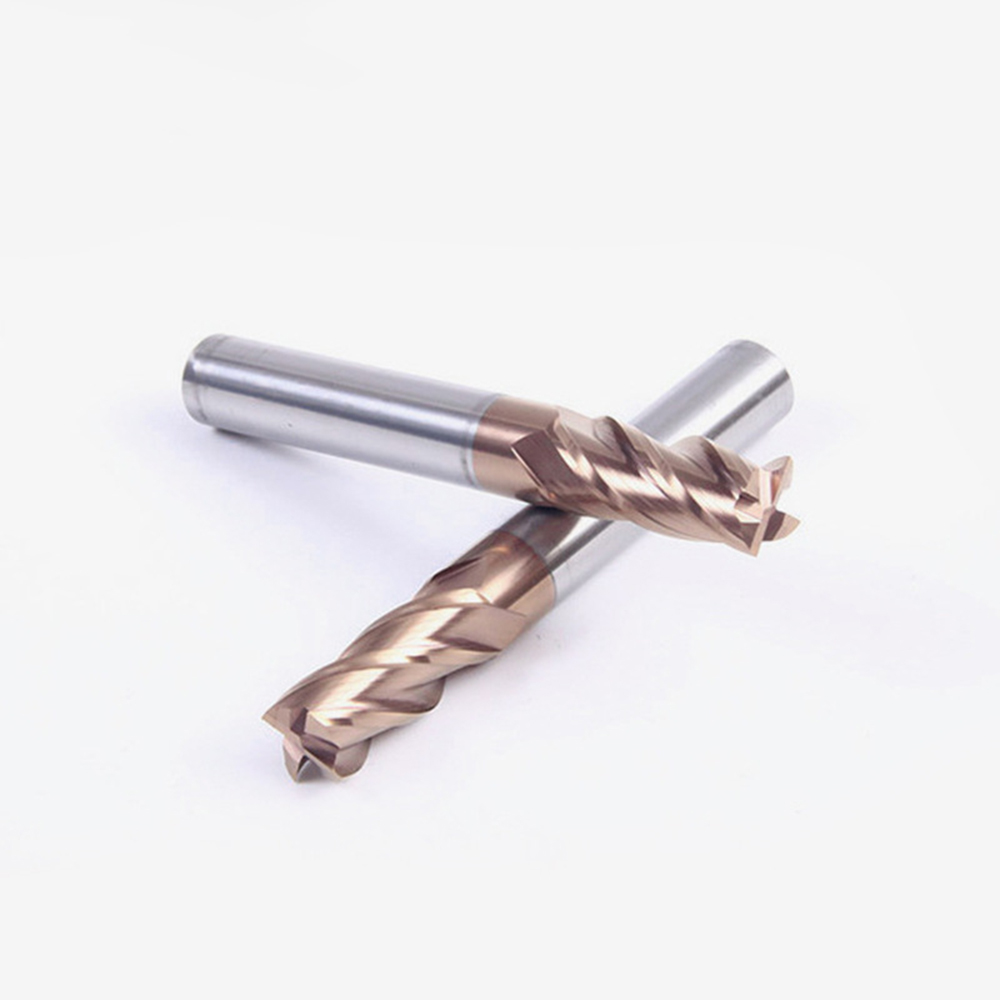

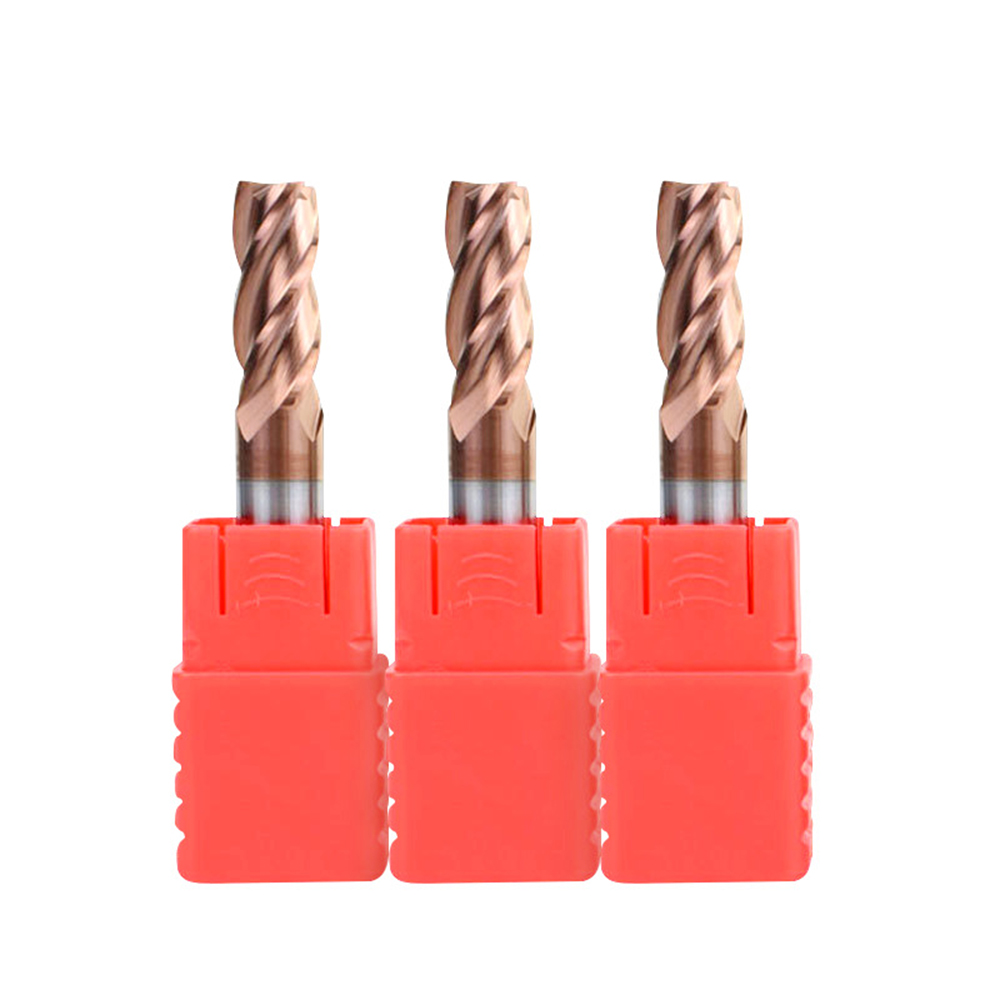

Products Pictures
