Machine Features:
1. Full 304 Stainless Steel Construction
The machine features an all-304 stainless-steel body, providing excellent corrosion resistance and long service life—ideal for chemicals, adhesives, and industrial paste packaging.

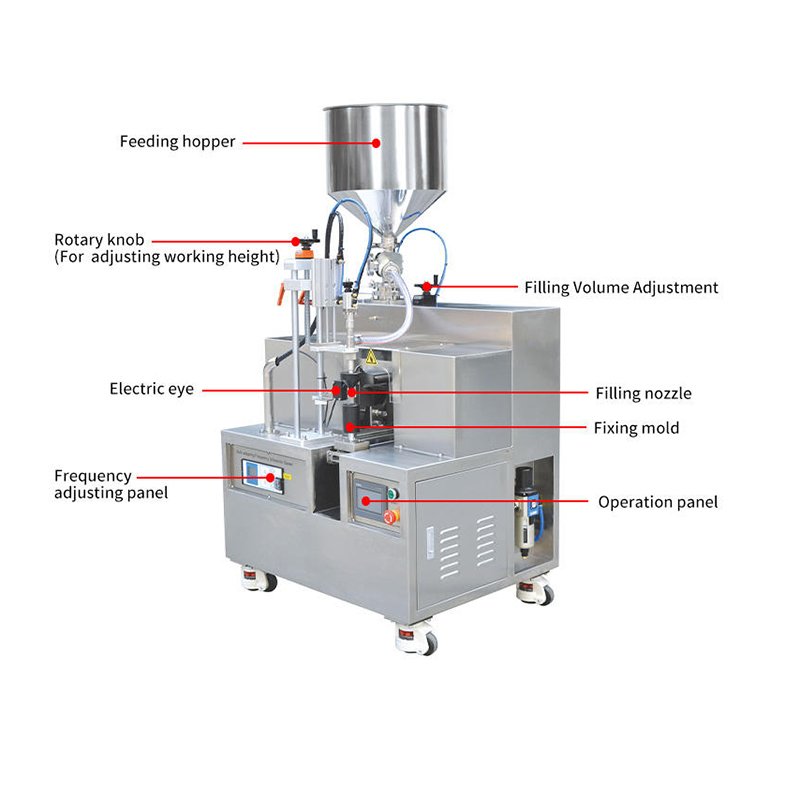

2. High-Precision Tube Positioning System
A high-sensitivity alignment electric eye and stepping motor ensure fast, accurate tracking of tube marks for precise wrapping and sealing.

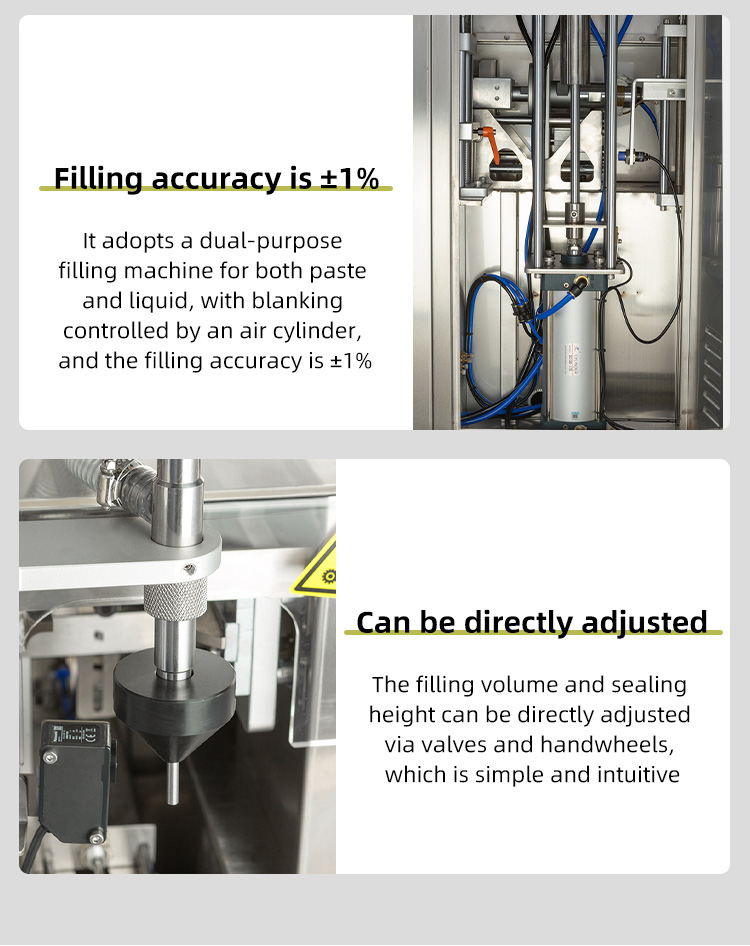

3. Dual-Purpose Filling for Liquid & Paste
The filling system is compatible with both liquid and paste materials. Controlled by an air cylinder, it maintains a filling accuracy of ±1% for consistent, professional results.
4. Easy Adjustment for Different Tube Sizes
Filling volume and sealing height can be adjusted directly using handwheels and valves, allowing quick format changes without complex tools or downtime.
5. Integrated Filling, Wrapping & Sealing
The machine combines multiple functions—tube forming, filling, sealing, alignment, and cutting—into a fully automated workflow that enhances efficiency and reduces manual labor.
Products Specification:
| Item | Specification |
| Machine Type | Fully automatic vertical tube filling, wrapping & sealing machine |
| Application | Chemical products, daily commodities, liquid & paste packaging |
| Packaging Type | Tubes |
| Packaging Material | Plastic tubes, laminated tubes, aluminum-foil tubes |
| Filling Material | Liquid and paste |
| Functions | Filling, wrapping, sealing |
| Sealing Type | Hot sealing |
| Driving Type | Electric |
| Automatic Grade | Automatic |
| Voltage | 220V |
| Machine Material | 304 stainless steel |
| Core Components | PLC, motor |
| Machine Dimensions | 850 × 736 × 1550 mm |
| Machine Weight | 130 kg |
| Key Selling Point | Easy to operate |
| Inspection | Video outgoing-inspection available |
| After-Sales Service | Online support |
| Filling Accuracy | ±1% |
| Adjustment | Filling volume & sealing height adjustable via valves & handwheels |
| Suitable For | Chemical gels, creams, adhesives, cosmetic paste, cleaning products |
