Product Specifications
| Number | Max.shear force (ton) | Bin size(L*W*H/mm) | Shear width (mm) | Yield(t/h) | Actual number of cuts (Times/min) | Motor power (kw) |
| Y81-400T | 400 | 6000*1300*500 | 1400 | 2-4 | 2 | 2*30 |
| Y81-500T | 500 | 6000*1300*500 | 1400 | 3-5 | 3 | 2*37 |
| Y81-630T | 630 | 7000*1500*600 | 1600 | 4-6 | 3 | 2*45 |
| Y81-800T | 800 | 7000*1700*600 | 1800 | 8-12 | 3 | 3*45 |
| Y81-1000T | 1000 | 7000*1900*700 | 2000 | 12-15 | 3 | 3*55 |
| Y81-1250T | 1250 | 7000*2100*700 | 2200 | 15-18 | 3 | 4*55 |
| Y81-1400T | 1400 | 7000*2100*700 | 2200 | 16-20 | 3 | 5*55 |
Shear Range
1: Light material shear.
2: Shearing of reinforced material.
3: Automobile beam, automobile basket.
4: I-beam, channel steel.
5: Light material briquette.

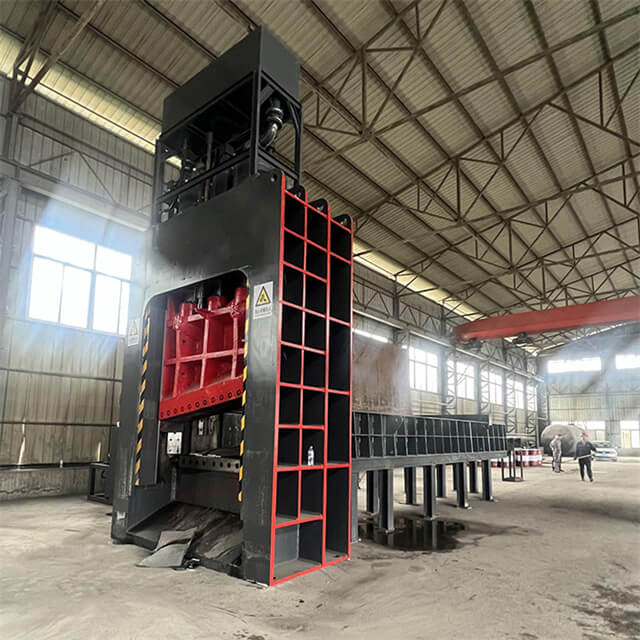

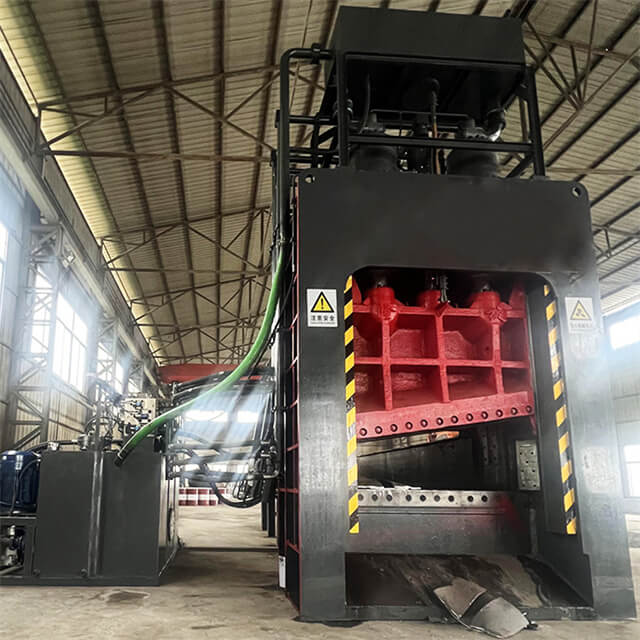

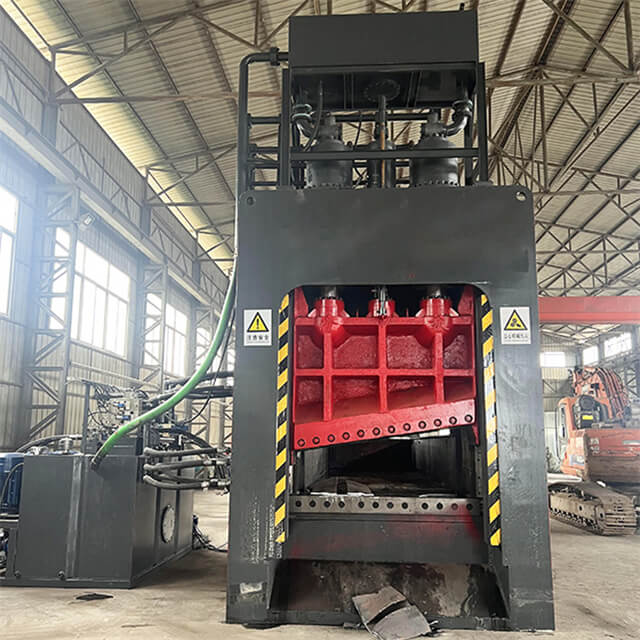

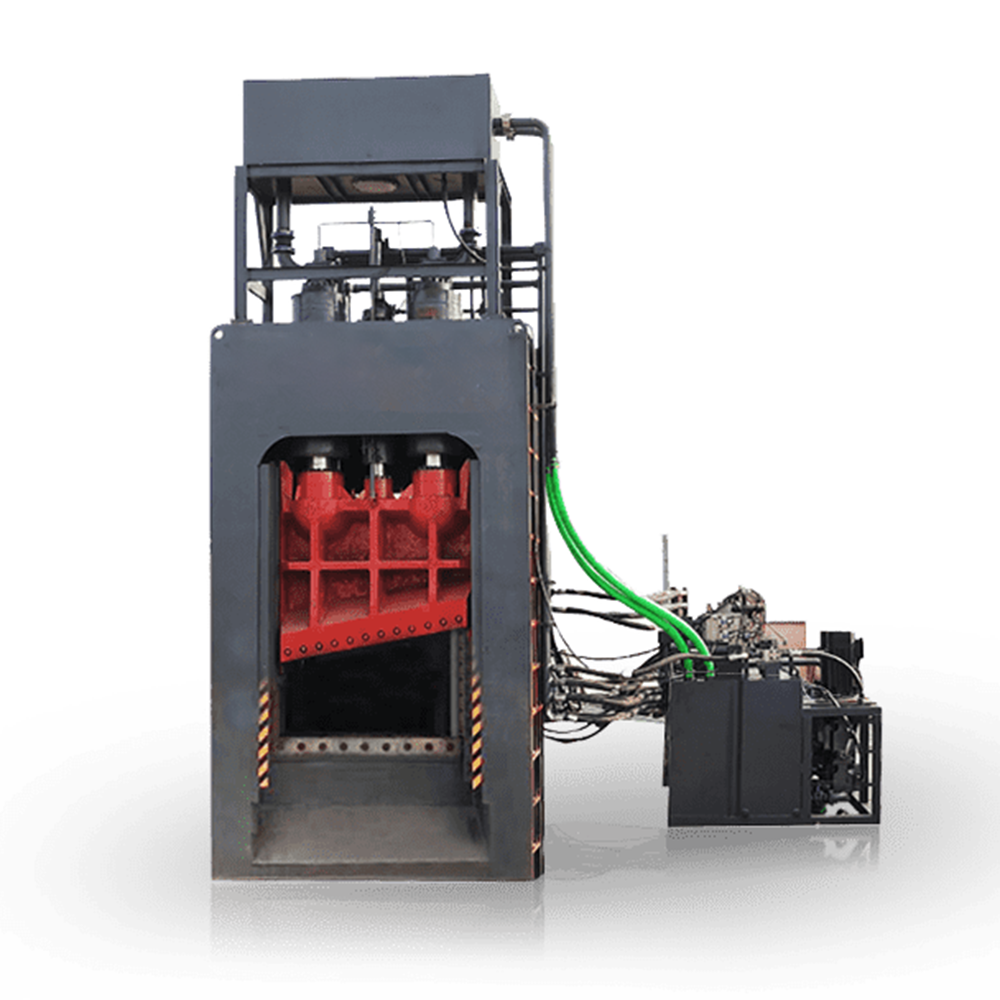

Products Pictures
