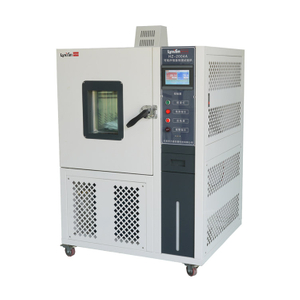

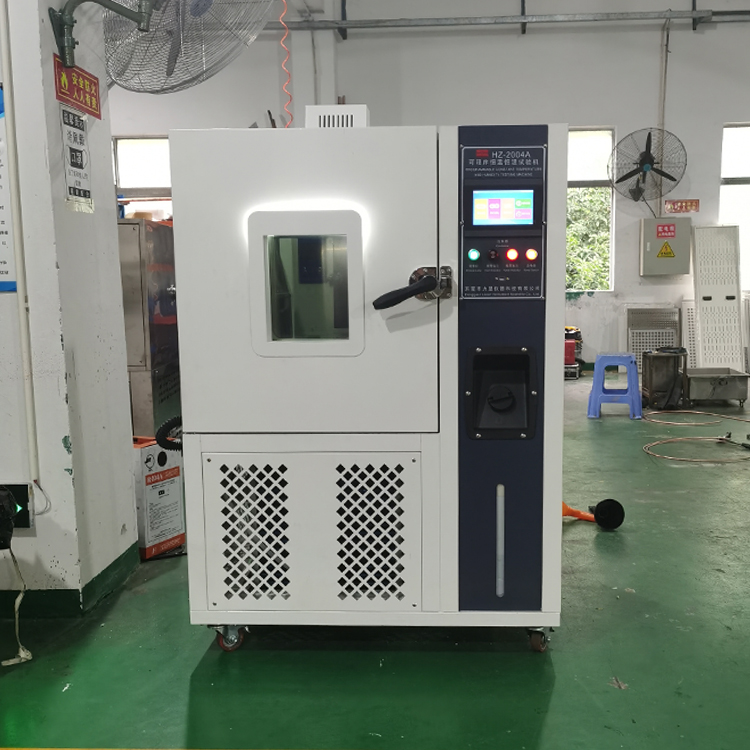

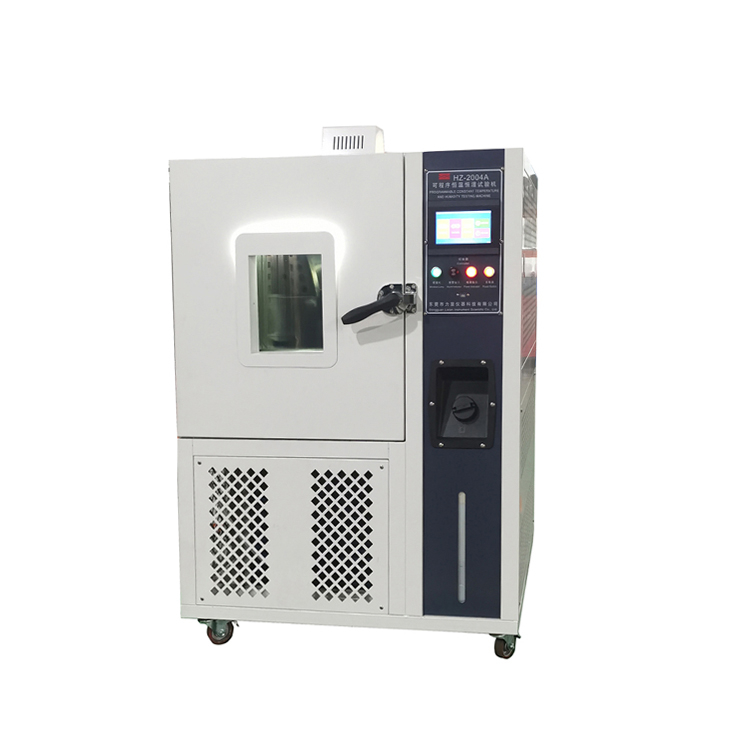

Programmable constant temperature and humidity test chamber, also known as constant temperature and humidity testing machine, constant temperature and humidity test chamber, constant temperature machine or constant temperature and humidity chamber, is specifically designed to test the heat resistance, cold resistance, dry resistance, and moisture resistance of various materials. Suitable for quality testing of electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical and other products.
SKU:
Availability:
Quantity:
ModelHZ - 80 (A~G)HZ - 150 (A~G)HZ - 225 (A~G)HZ - 408 (A~G)HZ - 608 (A~G)HZ - 800 (A~G)HZ - 1000 (A~G)
Internal Dimensions (Width × Height × Depth, cm)40×50×4050×60×5060×75×5080×85×6080×95×80100×100×80100×100×100
External Dimensions (Width × Height × Depth, cm)90×136×94100×146×104100×161×117110×171×137130×181×137150×186×137150×186×157
Temperature Range-70°C~+100°C (150°C)
(A: +25°C B: 0°C C: -20°C D: -40°C E: -50°C F: -60°C G: -70°C)
Humidity RangeWithin +20°C~+85°C,
20%~98%R.H. (10%-98%R.H/5%~98%R.H for special conditions)
Temperature and Humidity Resolution Accuracy±0.1°C; ±0.1%R.H. (Minimum unit distinguishable by instrument)
Temperature and Humidity UniformityFor ≤150L: ±1.0°C; ±2.0%R.H.
For >150L - <1m³: ±2.0°C; ±3.0%R.H.
Temperature and Humidity FluctuationFor ≤150L: ≤1°C; ±2.0%R.H.
For >150L - <1m³: ≤2°C; ±3.0%R.H.
Temperature and Humidity Control Accuracy±1.0°C; ±2.0%R.H. (Error between displayed and actual values)
Heating TimeApprox. 2 - 3.0°C/min
Cooling TimeApprox. 1.0°C/min (5 - 10°C/min for special conditions)
Cooling SystemAir - cooled/Single - stage Compressor (-20°C), Air & Water - cooled/Dual - stage Compressor (-40°C~-70°C)
