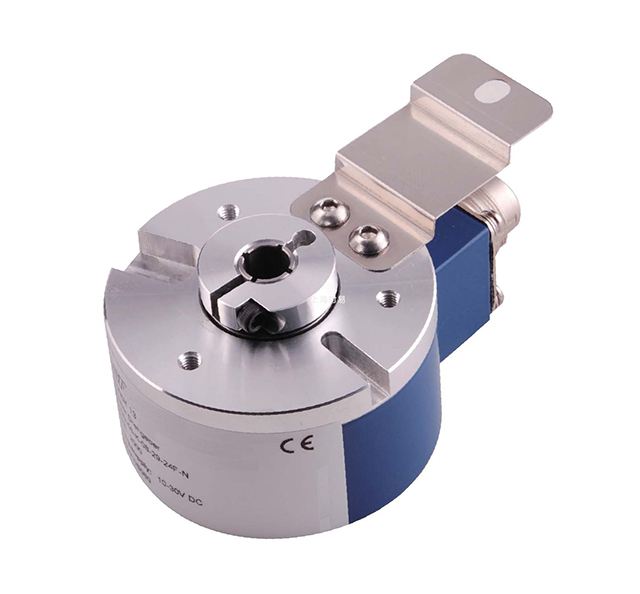

Customizable Pulse Settings: You can set any number of pulses within the range of 1 - 2000 ppr, enabling users to adapt the encoder to diverse measurement requirements with ease.
Flexible Scaling Function: This encoder comes with a flexible scaling feature. It allows for convenient adjustment of the measurement scale, catering to different application scenarios.
Multiple Sizes: With diameters ranging from 35mm - 60mm, it offers a variety of options to fit different installation spaces and mechanical structures.
Robust Housing Options: The availability of stainless - steel and heavy - duty housing types ensures the encoder's durability. It can withstand harsh environments and heavy - duty usage.
Exceptional Vibration and Shock Resistance: Designed to resist high levels of vibration and shock, this encoder is suitable for use in industrial settings where equipment is often subject to mechanical stress.
| Outer Diameter | Blind Hole Diameter | Resolution | Output Mode | Supply Voltage | Wiring Method |
|---|---|---|---|---|---|
| 35mm | 8mm/10mm | 1 - 5000/ppr | NPN, PNP, TTL, HTL, Voltage | 5vdc/5 - 26vdc/8 - 30vdc | Cable, Plug |
| 38mm | 8mm/10mm | 5vdc/5 - 26vdc/8 - 30vdc | Cable, Plug | ||
| 50mm | 8mm/10mm | 1 - 20000/pp | 5vdc/5 - 26vdc/8 - 30vdc | Cable, Plug | |
| 58mm | 8mm/10mm/12mm/15mm | 5vdc/5 - 26vdc/8 - 30vdc | Cable, Plug | ||
| 60mm | 8mm/10mm/12mm/15mm/20mm | 5vdc/5 - 26vdc/8 - 30vdc | Cable, Plug |
Power Consumption: ≤140mA at 5V DC, ≤70mA at 10V DC, and ≤40mA at 24V DC; also, it is ≤ 1.0 W.
Start - up Time: Less than 250 ms, ensuring quick activation and seamless integration into systems.
Minimum Load Resistance: 120 Ω, which helps in maintaining stable electrical performance.
Protective Features: It has both reverse - polarity protection and short - circuit protection, safeguarding the encoder from electrical malfunctions.
EMC Compliance: Meets the requirements of DIN EN 61000 - 6 - 4 for emission interference and DIN EN 61000 - 6 - 2 for immunity to interference, ensuring reliable operation in electromagnetic - rich environments.
Enclosure Protection Rating: Both the shaft and the housing have an IP65 rating, protecting against dust and water ingress.
Operating Temperature Range: Can function in temperatures ranging from -25℃ to +70℃, making it suitable for a wide range of environments.
Humidity Tolerance: Can withstand 98% relative humidity without condensation, ensuring stable performance in humid conditions.
Housing Material: Made of aluminum alloy, which provides a good balance between strength and weight.
Housing Coating: Features a cathode anti - corrosion protection (lasting over 720 hours in salt - spray tests) along with paint spraying, enhancing its resistance to corrosion.
Flange Material: Constructed from aluminum, ensuring durability and proper mechanical connection.
Maximum Axial and Radial Loads: Can handle an axial load of 40 N (4.5 lbs) and a radial load of 110 N, making it suitable for various mechanical applications.
Rotor Moment of Inertia: ≤ 30 gcm² [≤ 0.17 oz - in²], which affects the encoder's response time and rotational performance.
Friction Torque: ≤ 5 Ncm at 20 °C (7.1 oz - in at 68 °F), minimizing energy losses during rotation.
Maximum Mechanical Speed: ≤ 3000 1/min, indicating its high - speed operation capabilities.
Shock and Vibration Resistance: Can endure shock levels of ≤ 100g (6 - millisecond half - sine wave, per EN 60068 - 2 - 27) and ≤ 10G (16 - millisecond half - sine wave, per EN60068 - 2 - 29), and vibration levels of ≤ 10 g (10 Hz – 1000 Hz, per EN 60068 - 2 - 6).
