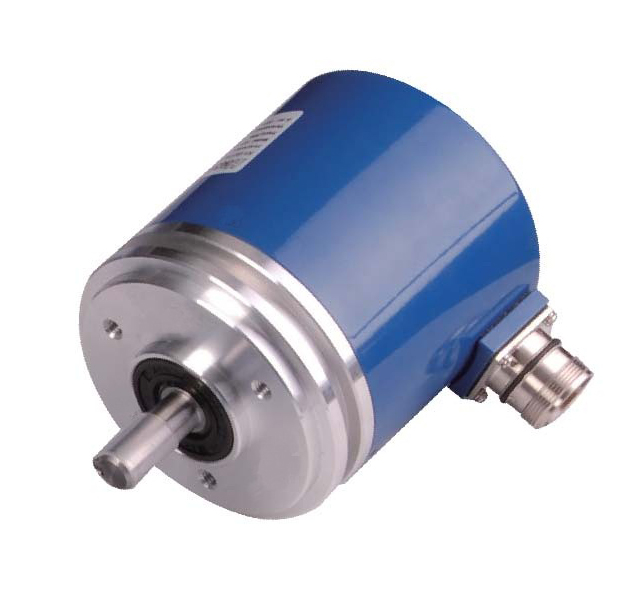

Incremental Encoder - Shaft Type

In many application industries, a simple and cost - effective solution for precise position positioning is highly demanded. The incremental encoder of this type meets these requirements by providing high - resolution measurements through its incremental interface. It can be commonly configured with A, B, Z, and reverse signals, along with HTL push - pull or TTL (RS422) output options.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Features

Customizable Pulse Settings: Users can set any number of pulses between 1 - 16384, allowing for flexible adaptation to different measurement requirements.
Flexible Scaling Function: This function provides additional convenience in adjusting the measurement scale according to specific application needs.
Diverse Sizes: The encoder offers a wide range of diameters from 38mm - 260mm, catering to various installation scenarios.
Robust Housing Options: It comes with stainless - steel and heavy - duty housing choices, ensuring durability and reliability in different working environments.
High Resistance to Vibration and Shock: The encoder is designed to withstand high levels of vibration and shock, making it suitable for use in harsh industrial settings.

Optional Types

Outer Diameter	Shaft Diameter	Resolution	Output Mode	Supply Voltage	Wiring Method
25mm	4mm	1 - 5000/PPR	NPN, PNP, TTL, HTL, Voltage	5vVDC	Cable, Plug
38mm	6mm, 8mm	5v/5 - 26VDC	Cable, Plug
40mm	6mm, 8mm	5v/5 - 26VDC	Cable, Plug
50mm	8mm, 10mm	5v/5 - 26VDC	Cable, Plug
58mm	10mm	1 - 16384/PPR	TTL/HTL	4.75 - 30VDC	Cable, Plug

Electrical Data

Power Consumption: ≤ 140mA @ 5V DC, ≤70mA @ 10V DC, ≤40mA @24V DC; also ≤ 1.0 W
Start - up Time: < 250 ms
Minimum Load Resistance: 120 Ω
Reverse Polarity Protection: Yes
Short - Circuit Protection: Yes
EMC: Emission Interference complies with DIN EN 61000 - 6 - 4; Immunity to Interference complies with DIN EN 61000 - 6 - 2

Environmental Specifications

Enclosure Protection Rating (Shaft): IP65
Enclosure Protection Rating (Housing): IP65
Operating Temperature: -20 °C - 70°C
Humidity: 98% relative humidity, non - condensing

Mechanical Data

Housing Material: Aluminum alloy
Housing Coating: Cathodic anti - corrosion protection (> 720 - hour salt - spray test) + Paint spraying
Flange Material: Aluminum
Maximum Shaft Load: Axial 40 N (4.5 lbs), Radial 110 N
Rotor Moment of Inertia: ≤ 30 gcm² [≤ 0.17 oz - in²]
Friction Torque: ≤ 5 Ncm @ 20 °C (7.1 oz - in @ 68 °F)
Maximum Mechanical Speed: ≤ 3000 1/min
Shock Resistance: ≤ 100g (6 - millisecond half - sine wave, EN 60068 - 2 - 27)
Durable Shock Resistance: ≤ 10G (16 - millisecond half - sine wave, EN60068 - 2 - 29)
Vibration Resistance: ≤ 10 g (10 Hz – 1000 Hz, EN 60068 - 2 - 6)
