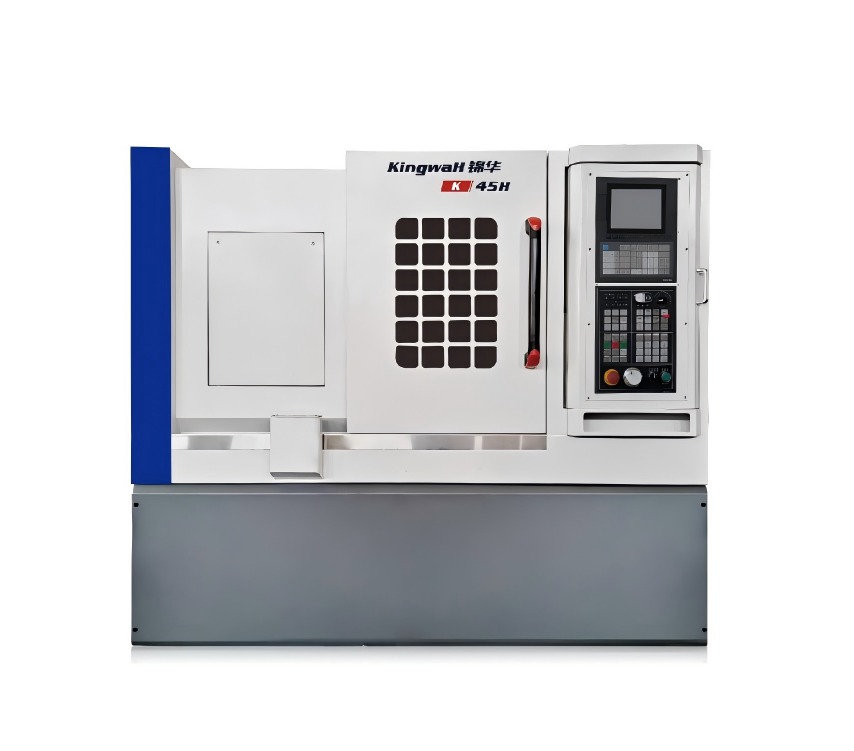

KingwaH K45H CNC Lathes
KingwaH K45H CNC Lathes KingwaH K45H CNC Lathes

loading

KingwaH K45H CNC Lathes

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The K45H CNC lathe features a 45° integrated slant bed structure with a high-speed precision spindle and imported linear guideways. Equipped with a servo spindle motor and absolute feed motors, it ensures high processing stability and efficiency. It is ideal for precision batch processing of parts requiring high dimensional accuracy and fine surface finish.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1: 45° integrated slant-bed casting ensures high rigidity and smooth chip evacuation

2: High-speed precision spindle with imported bearings for stable performance

3: High-precision pre-stretched ball screw and imported linear guides for fast, accurate motion

4: Modular design with full enclosure, supporting options like live tooling and auto bar feeding for easy upgrade and maintenance


Technical Parameter

TypeTechnical parametersUnitNumerical
Processin GrangeMax swing diameter over bedmmΦ450
Max swing diameter of slidemmΦ160
Max cutting lengthmm300
SpindleRange of spindle speedr.p.m60-3000
Spindle through-hole diametermmΦ56
Spindle nose/A2-5
Clamping system/Hydraulic pressure
Spindle motor powerKw7.5（servo）
FeedX axis strokemm440（radius）
Z axis strokemm500
X/Z axis Feed motor powerNmX/Z：7.7/7.7
Tool postTool post form/Row cutter (with 4 clips)
Tool mounting dimension/20-25
TailstockTailstock sleeve diametermm/
Tailstock sleeve travelmm/
Inner taper of tailstock//
Precision of machineX axis repeat positioning accuracymm0.005
Z axis repeat positioning accuracymm0.005
Surface roughness of processing partsum≦Ra0.8um（nonferrous）
≦Ra1.6um（Steel）
OtherOverall dimensionsmm2200x1600x1900
WeightKG2800
Power
3￠-AC 380V 50Hz±5%
