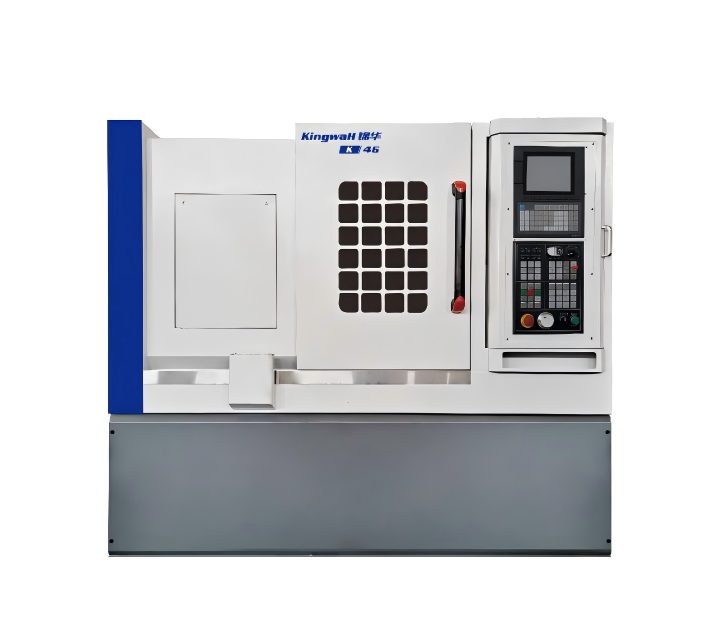

K46H CNC lathe front view with 45-degree slant bed and precision spindle for small-to-medium part machining
K46H CNC lathe front view with 45-degree slant bed and precision spindle for small-to-medium part machining K46H CNC lathe front view with 45-degree slant bed and precision spindle for small-to-medium part machining

loading

KingwaH K46H CNC Lathes

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The K46H CNC lathe adopts an integrated 45° slant bed design with a precision spindle unit and imported linear guides, ensuring excellent rigidity and machining accuracy. It features a servo spindle motor, bus-type CNC control system, and modular fully enclosed guarding. Ideal for efficient batch processing of small-to-medium parts.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:


1: 45° integrated slant-bed casting with high rigidity and efficient chip evacuation

2: Precision spindle unit with imported linear guides and preloaded ball screws for high cutting accuracy

3: Bus-type control system and absolute feed motors ensure fast response and precise positioning

4: Modular structure with full enclosure, supporting optional live tooling and automatic feeding systems


Technical Parameter

TypeTechnical parametersUnitNumerical
Processin GrangeMax swing diameter over bedmmΦ500
Max swing diameter of slidemmΦ220
Max cutting lengthmm400
SpindleRange of spindle speedr.p.m60-3000
Spindle through-hole diametermmΦ56
Spindle nose/A2-5
Clamping system/Hydraulic pressure
Spindle motor powerKw7.5（servo）
FeedX axis strokemm300（radius）
Z axis strokemm450
X/Z axis Feed motor powerNmX/Z：7.7/7.7
Tool postTool post form/Row cutter (with 4 clips)
Tool mounting dimension/20-25
TailstockTailstock sleeve diametermm/
Tailstock sleeve travelmm/
Inner taper of tailstock//
Precision of machineX axis repeat positioning accuracymm0.005
Z axis repeat positioning accuracymm0.005
Surface roughness of processing partsum≦Ra0.8um（nonferrous）
≦Ra1.6um（Steel）
OtherOverall dimensionsmm2300X1550x1700
WeightKG3000
Power
3￠-AC 380V 50Hz±5%
