Product Specifications
| Attached accessories | |||
| Electromagnetic sucker | 1 | Wheel dresser (without diamond wheel cutter) | 1 |
| Grinding wheel balance spindle | 1 | Grinding wheel balance frame | 1 |
| Wheel chuck continuous grinding wheel | 2 | Machine tool adjusting pad iron | 1 |
| Special accessories (priced separately) | |||
| Diamond grinding wheel cutter | 1 | Sinusoidal flat pliers（ZPQ-150） | 1 |
| Model： | M7140H | M7140H×16 | |||
| Worktable | Table size (W × L) | mm | 400×1000 | 400×1600 | |
| Maximum grinding dimension (W × L × H) | mm | 400×1000×400 | 400×1600×400 | ||
| Longitudinal travel of worktable(maximum) | mm | 1100 | 1650 | ||
| Table speed (stepless) | m/min | 3~27 | 3~20 | ||
| T-slot of worktable (slot number × width) | mm | 3×18 | |||
| Bearing capacity of worktable | kg | 624 | 998 | ||
| Grinding head | Distance from center of grinding wheel shaft to worktable (maximum) | mm | 575 | ||
| Intermittent feed per stroke of grinding head | mm | 3/30 | |||
| Maximum process of grinding head | Lateral (manual or hydraulic) | mm | ≥430 | ||
| Vertical (manual) | mm | 400 | |||
| Grinding wheel shaft speed | r/mim | 1440 | |||
| Vertical feed handwheel dial value | mm | 0.01 | |||
| Feed rate of grinding head per revolution of hand wheel | mm | 1 | |||
| Grinding wheel size (outer diameter × width × inner diameter) | mm | Ф350×40×Ф127 | |||
| Motor power | Total power of motor | kW | 9 | ||
| Motor power of grinding head | kW | 5.5 | |||
| Working accuracy | Parallelism of machined surface to base surface | mm | 00:00.0 | ||
| Surface roughness | μm | Ra0.63 | |||
| Machine weight | Net weight (about) | kg | 3500 | 5000 | |
| Gross weight (about) | kg | 4000 | 5500 | ||
| Overall dimension (L ×W × H) | mm | 2295×1673×2035 | 4105×1673×2035 | ||
| Box size (L ×W ×H) | mm | 2600×1750×2400 | 4600×1800×2400 | ||
Machine Features
1: The vertical movement of the worktable is driven by the vane pump, which has the advantages of smooth operation, low noise, low temperature rise in the oil pool, and accuracy up to the national standard of horizontal axis rectangular table surface grinder.
2: It can grind groove and flange side.
3: The improved cross feed mechanism of grinding head has hydraulic automatic feed and manual feed, which is easy to operate.
4: The vertical movement of the grinding head has a fast lifting mechanism and can be fed manually.
5: Grinding motor and oil pump motor are Y series motor, electrical implementation of national safety standards.
6: Beautiful appearance, the machine has a place to install the digital display device.

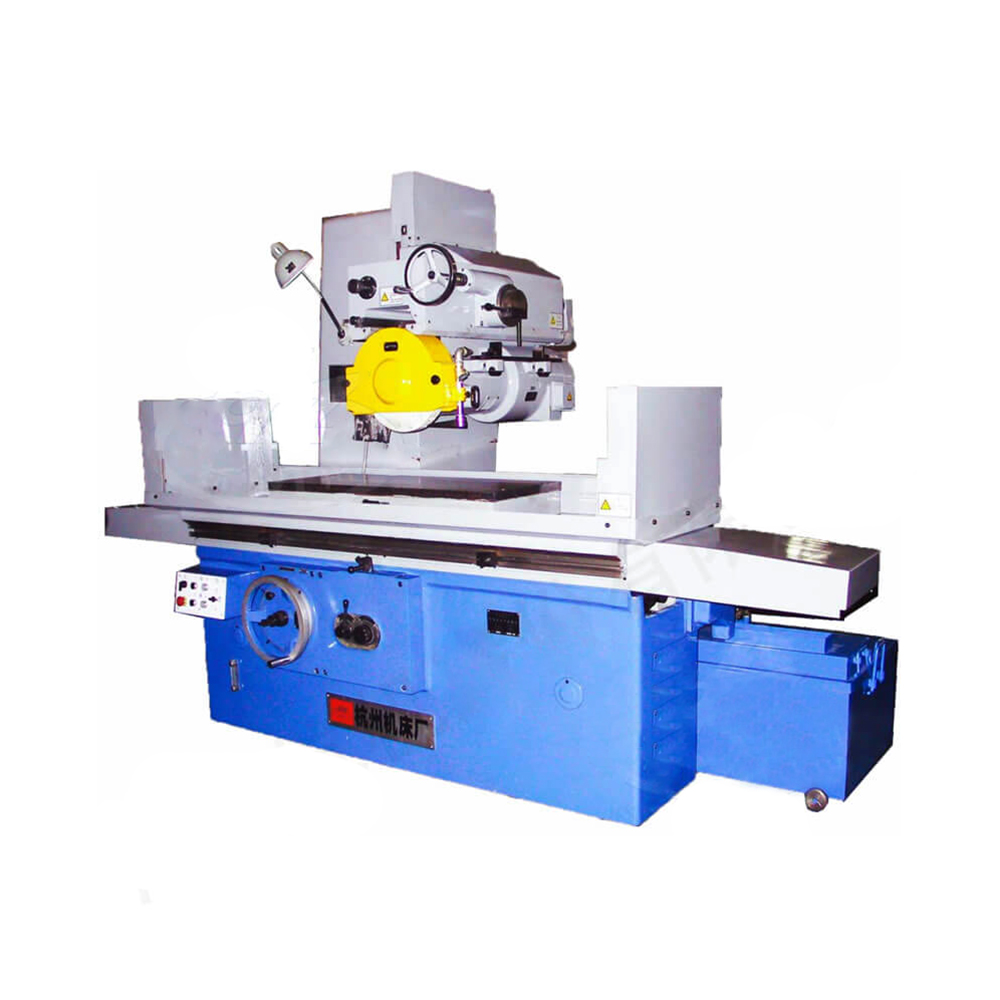

Products Pictures
