| Quantity: | |
|---|---|
Product Specifications
| Attached accessories | |||
| Electromagnetic sucker | 1 | Wheel dresser (without diamond wheel cutter) | 1 |
| Grinding wheel balance spindle | 1 | Grinding wheel balance frame | 1 |
| Wheel chuck continuous grinding wheel | 2 | Machine tool adjusting pad iron | 1 |
| Special accessories (priced separately) | |||
| Diamond grinding wheel cutter | 1 | Sinusoidal flat pliers（ZPQ-150） | 1 |
| Model： | M7160x10/HZ | M7160×16/HZ | M7160×20/HZ | M7160×30/HZ | |||
| Worktable | Table size (W × L) | mm | 600x1000 | 600×1600 | 600×2000 | 600×3000 | |
| Maximum grinding dimension (W × L × H) | mm | 600×1000×600 | 600×600×1600 | 600×600×2000 | 600×600×3000 | ||
| Longitudinal travel of worktable(maximum) | m/min | 1100 | 1700 | 2100 | 3100 | ||
| Table speed (stepless) | mm | 5~26 | 5~27 | 5~30 | |||
| T-slot of worktable (slot number × width) | mm | 3×22 | |||||
| Bearing weight of the workbench (including electromagnetic suction cup) | kg | 1030 | 1482 | 1800 | 2800 | ||
| Grinding head | Distance from center of grinding wheel shaft to worktable (maximum) | mm | 825 | ||||
| Grinding head vertical feed | Manual per grid | mm | 0.005 | ||||
| Rapid feed | m/min | 0.4 | |||||
| Grinding machine | Continuity | m/min | 0.5-1.2 | ||||
| Crossfeed | Intermittent | mm | 5~20 | ||||
| Manual cross feed hand wheel of grinding head per grid | mm | 0.01 | |||||
| Grinding wheel shaft speed | r/min | 1440 | |||||
| Grinding wheel size (outer diameter × width × inner diameter) | mm | Φ450x63xΦ203 | |||||
| Motor power | Total power of motor(about) | kW | 23 | ||||
| Motor power of grinding head | kW | 11 | |||||
| Working accuracy | Parallelism of machined surface to base surface | mm | 00:00.0 | ||||
| Surface roughness | μm | Ra0.63 | |||||
| Machine weight | Net weight (about) | kg | 8000 | 8500 | 10000 | 12000 | |
| Gross weight (about) | kg | 9000 | 10000 | 11000 | 13500 | ||
| Overall dimension (L ×W × H) | mm | 5000x2430x2450 | 4682x2240x2330 | 5500x2240x2330 | 9230x2240x2330 | ||
| Box size (L ×W ×H) | mm | 3750x2450x3080 | 5080x2450x2800 | 5880x2450x2800 | 6540x2450x2990 | ||
Machine Features
1: The machine tool is a movable grinding head machine tool, that is, the worktable only moves longitudinally on the guide rail of the bed, the grinding head moves laterally on the carriage, and the carriage and the grinding head move vertically on the column.
2: The guide rail pair of the worktable and the bed adopts the plastic sliding guide rail pair.
3: The vertical movement and transverse movement are driven by ball screw, the vertical movement has rapid rise and fall, and the feed is manual; the transverse movement is driven by plunger oil motor, and the transverse feed can be motorized or manual.
4: In the structure, there is a position for installing servo motor, which can adjust oil motor and AC motor into servo motor, and configure CNC system to become CNC machine tool.

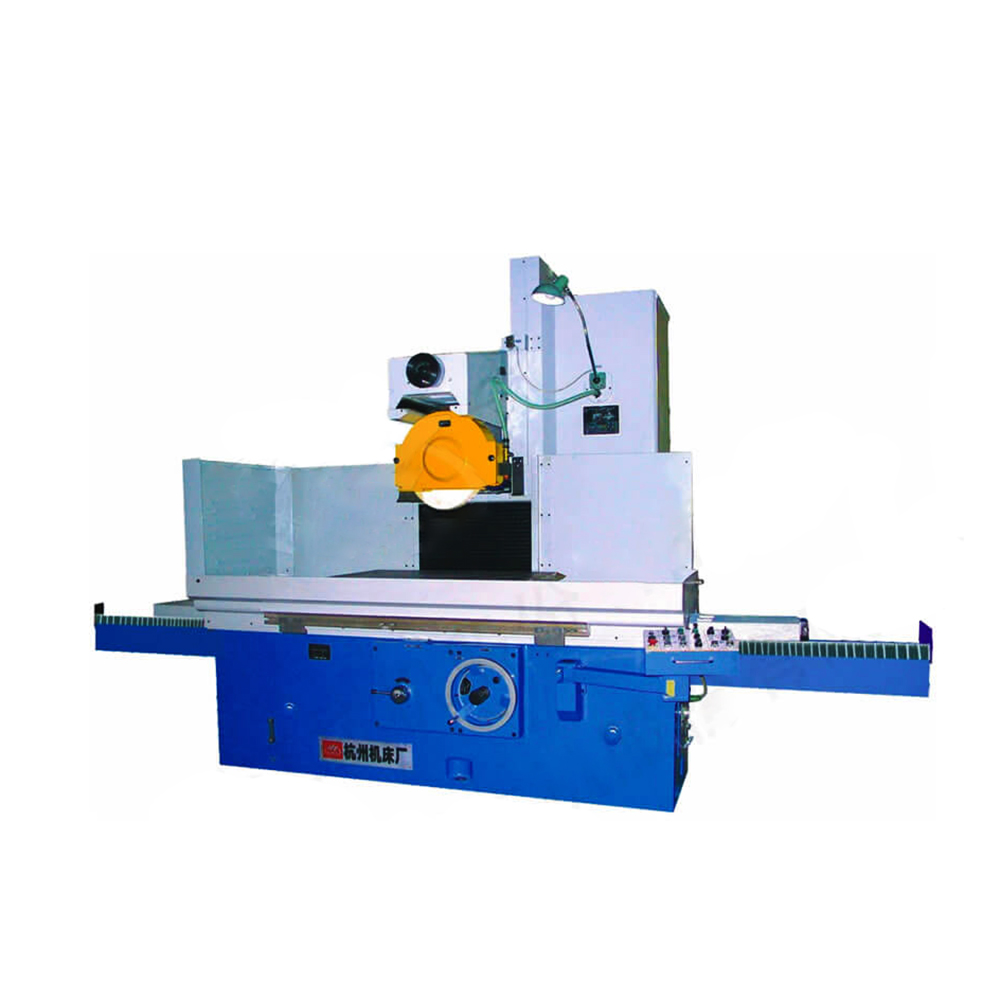

Products Pictures
