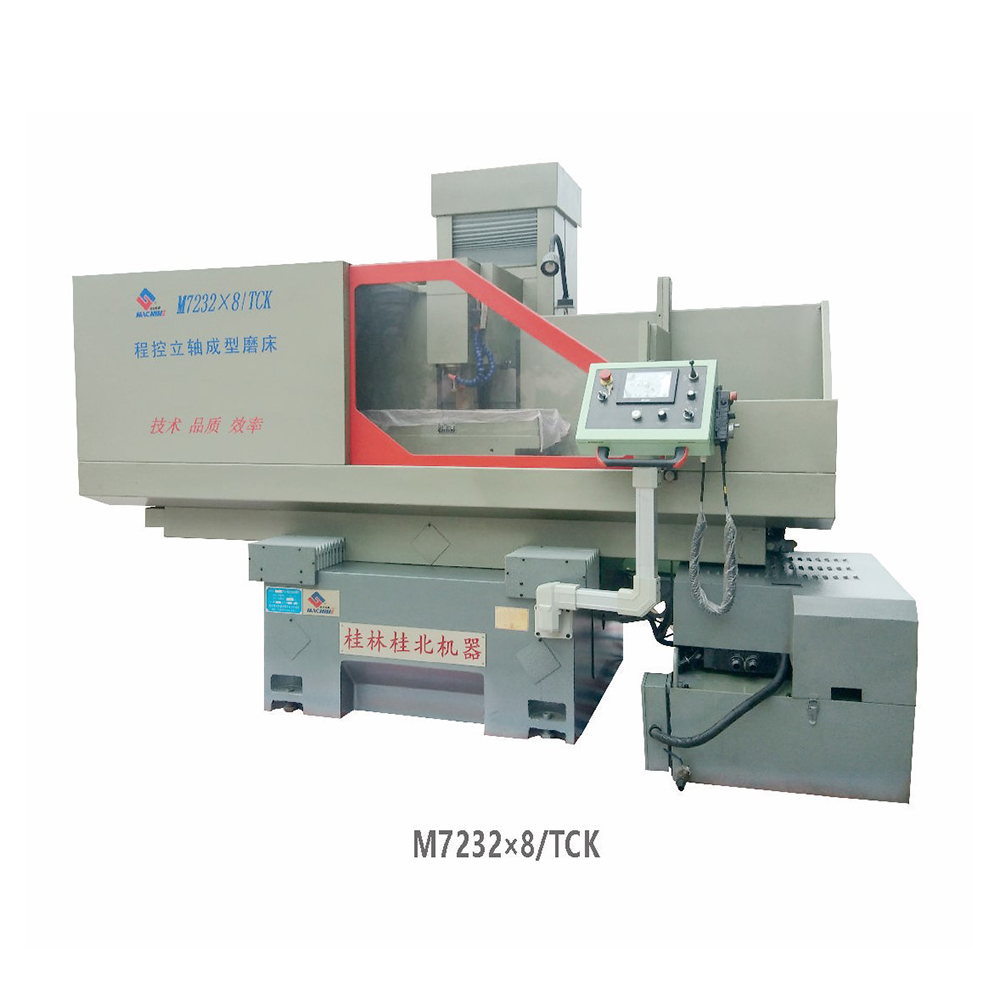

M7232×8TCK Saddle-mobile PLC Profile Surface Grinding Machine

This machine tool is suitable for grinding flat surfaces and end faces of steel parts, cast iron and non-ferrous metals, etc. Equipped with a table surface diamond roller forming dresser, it can be used for grinding the profile of rack or other complex shaped parts, and is widely used for grinding and processing in the military industry, automobile manufacturing, hydraulic pump manufacturing, etc.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Specifications

Main Specifications	Unit	M7232×8/TCK MK7232×8/T	M7232×12/TCK MK7232×12/T	M7232×16/TCK MK7232×16/T
Size of working table (W×L)	mm	320×800	320×1250	320×1600
Max.size of workpiece to be ground (W×L×H)	mm	320×800×400	320×1250×400	320×1600×400
Table longitudinal travel	mm	300~900	300~1350	300～1700
Longitudinal movement speed(stepless)	m/min	3~25
Table Max.table load capacity(Including electromagnetic chuck)	kg	400	624	800
Distance from the spindle end to the table	mm	400
Dragging plate horizonta stroke	mm	330
Horizontal feedContinuousIntermittent	mm/min	500~30001~50
Wheel size(0.D×W×1.D)	mm	Select from the user workpiece
Maxwheel speed	r/min	30000
Min.vertical feed	mm	0.005
Motor power of grinding head	KW	8.5
Total power(about)	kVA	20
Parallelism between two tracks	mm	0.005
Parallelism between two tracks and installed base	mm	0.01
Surface roughness	um	Ra0.8
Overall dimensions (L×W×H)	mm	3000×2700×2300	4850×2100×2300	5500×2100×2300
NW	Kg	4000	4000	5300
