Product Specifications
| unit | M7130Y | M7132 | M7132x16 | M7132x20 | M7140Y | M7150Y | M7160Y |
| mm | 300×1000 | 320×1000 | 320×1600 | 320×2000 | 400×1000 | ||
| mm | 300×1000×400 | 320×1000×400 | 320×1600×400 | 320×2000×400 | 400×1000×400 | 500×1000×600 | 600×1000×600 |
| mm | 200～1100 | 200～1700 | 200~2100 | 200～1100 | |||
| kg | 500 | 800 | 998 | 624 | 800 | ||
| mm | φ400×50×φ203 | ||||||
| kVA | 14 | ||||||
| kW r/min | 7.5 1440 | ||||||
| mm | 300:0.005 | 300:0.008 | |||||
| μm | Ra0.63 | ||||||
| mm | 3000×1712×2250 | 4360×1712×2250 | 3000×1782×2250 | 3000×1975×2450 | |||
| cm | 299×175×260 | 470×175×260 | 532x175×260 | 299×175×260 | 299×187×280 | ||
| kg | 3200 | 3300 | 4500 | 5000 | 3750 | 4300 | 4400 |
Machine Features:
1: The bed is cast as a whole, with good rigidity and stable and reliable operation.
2: The column is placed on the right side of the machine tool, and the force is reasonable, and the coolant is not easy to splash on the electric cabinet and the button station, so as to ensure the electrical safety.
3: The longitudinal movement of the worktable is hydraulically driven, with stepless speed regulation.
4: The horizontal guide rail of the carriage adopts steel guide rail structure, which has good wear resistance and stable precision.
5: The grinding wheel spindle is driven by an external low-vibration motor and runs smoothly.
6: The bed and worktable guides are lubricated continuously and automatically, and the column, carriage and grinding head guides are lubricated by jog lubrication, which can effectively prevent the guide rails from losing oil and straining.

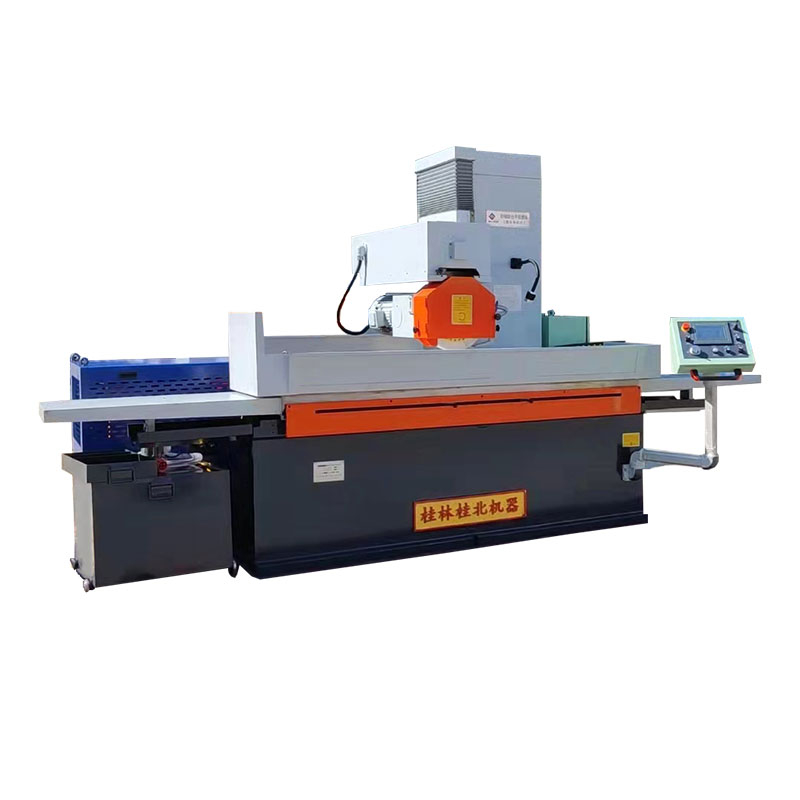

Products Pictures
