| Specification | unit | B2-1009 | |
| Maximum rotary diameter | mm | Φ240 | |
| Center height | mm | 125 | |
| Maximum weight between centers | kg | 30 | |
| Grinding wheel (max) | Outer diameter x width x inner diameter | mm | Φ500×B×Φ203 |
| Linear speed | mm/sec | 45 | |
| Wheel carrier | Minimum feed | mm | 0.001 |
| Worktable | Type | Double Worktable | |
| Maximum rotary angle | 3° clockwise, 9° counterclockwise | ||
| Headstock | Clamp | Hydraulic clamping | |
| Rotation speed | r/min | 30-300(Infinitely variable speed control) | |
| Total power of machine motor | kw | 7 | |
| Net weight | kg | 2100 | |
Products Features
1:Hydraulic Clamping Precision Positioning: Equipped with a hydraulic fixture on the headstock, which tightens the workpiece, ensuring accurate internal bore positioning and stable processing precision.
2:Sleeve-Type Spindle System: The grinding spindle uses sleeve-type hydrostatic bearings, providing excellent rotational accuracy and rigidity for consistent grinding results.
3:Durable Guideway Design: The machine uses plastic-coated guideways that improve vibration damping and wear resistance, enhancing low-speed operational stability and extending machine longevity.
4:User-Friendly Operation: The machine's compact layout and centralized controls make it intuitive to operate, ensuring safety and ease of use for efficient production.
5:Smooth Hydraulic Drive System: The hydraulic drive uses a screw pump, ensuring smooth operation with minimal noise, improving the overall work environment.
Applications
The B2-1009 Special CNC Cylindrical Grinding Machine is widely used for high-precision grinding of disc and gear disc parts. It is ideal for industries such as automotive component manufacturing, mechanical processing, and aerospace, where precision machining of critical parts is required. Its reliable performance and high precision make it an excellent choice for high-demand production environments.

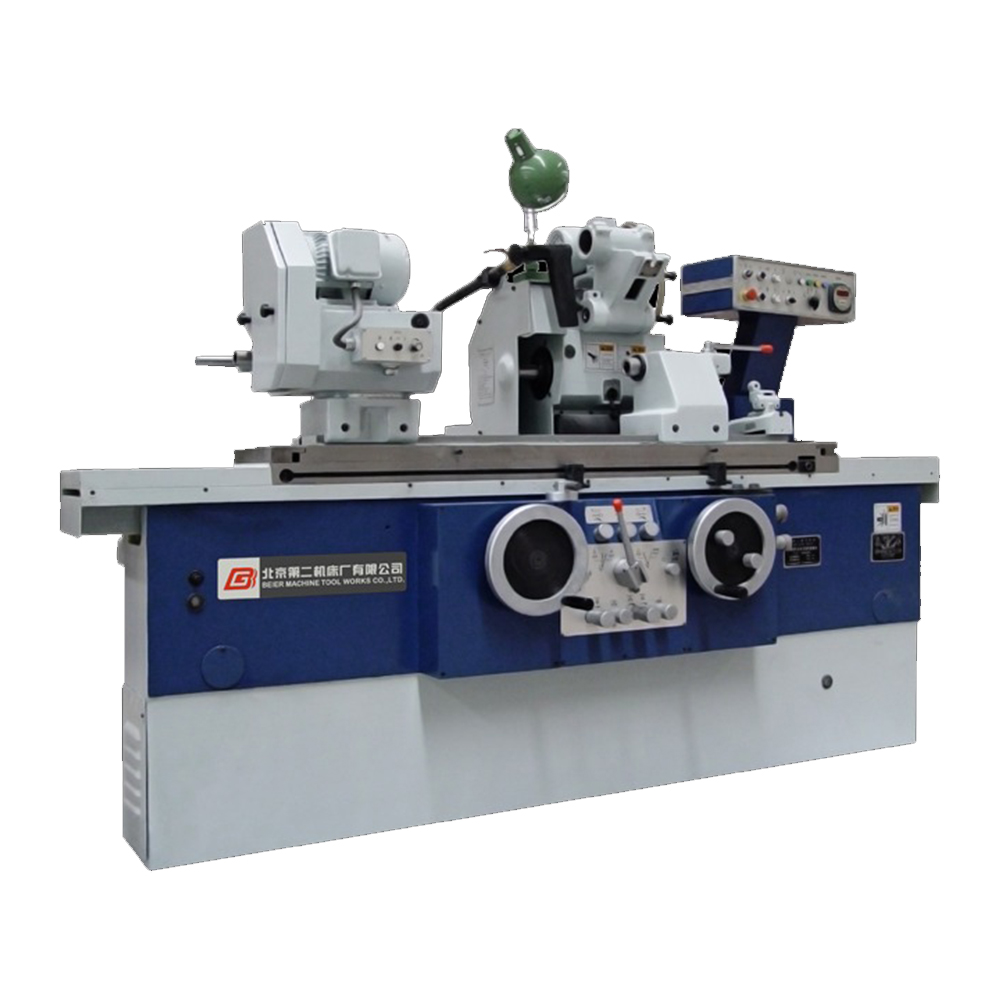

Products Pictures
