| Specification | unit | MG1320E | MG1332E | MG1420E | MG1432E | |||||||||
| MGB1320E | MGB1332E | MGB1420E | MGB1432E | |||||||||||
| ×500 | ×750 | ×1000 | ×500 | ×750 | ×1000 | ×500 | ×750 | ×1000 | ×500 | ×750 | ×1000 | |||
| Center height | mm | 125 | 180 | 125 | 180 | |||||||||
| Distance between centers | mm | 520 | 765 | 1050 | 520 | 765 | 1050 | 520 | 765 | 1050 | 520 | 765 | 1050 | |
| Max. workpiece turning diameter | mm | 240 | 350 | 240 | 350 | |||||||||
| Maximum grinding length | mm | 500 | 750 | 1000 | 500 | 750 | 1000 | 500 | 750 | 1000 | 500 | 750 | 1000 | |
| External grinding range | mm | Φ5～Φ200 | Φ5～Φ320 | Φ5～Φ200 | Φ5～Φ320 | |||||||||
| Internal grinding range | mm | - | - | Φ13～Φ80 | Φ16～Φ125 | |||||||||
| Maximum depth of internal grinding (45mm or more) | mm | - | - | 125 | 160 | |||||||||
| Maximum workpiece weight between centers | kg | 50 | ||||||||||||
| Emery wheel | Dimensions (O.D. x W.D. x I.D.) | mm | 400×(32～50)×203 | |||||||||||
| Maximum line speed | m/sec | 35 | ||||||||||||
| Worktable swivel angle | Clockwise | 3° | 3° | 3° | 3° | |||||||||
| Counterclockwise | 9° | 8° | 7° | 9° | 8° | 7° | 9° | 8° | 7° | 9° | 8° | 7° | ||
| Spindle taper hole Morse taper number | Headstock | Morse4#(Optional Morse 3# ) | ||||||||||||
| Tailstock | ||||||||||||||
| Total power of machine motor | Kw | 7 | 7 | 7.5 | 7.5 | |||||||||
| Net weight of machine | kg | 2500 | 3000 | 3500 | 2500 | 3000 | 3500 | 2500 | 3000 | 3500 | 2500 | 3000 | 3500 | |
| Gross weight of machine | kg | 3100 | 3600 | 4100 | 3100 | 3600 | 4100 | 3100 | 3600 | 4100 | 3100 | 3600 | 4100 | |
| Dimensions of the outer box of the machine | length | mm | 2800 | 2900 | 3800 | 2800 | 2900 | 3800 | 2800 | 2900 | 3800 | 2800 | 2900 | 3800 |
| width | mm | 2200 | ||||||||||||
| height | mm | 2200 | ||||||||||||
Products Features
1:Hydraulic Drive System: The machine uses a screw pump hydraulic drive system, ensuring smooth operation with low noise, making it ideal for continuous, long-term use.
2:High-Precision Spindle System: The grinding wheel head adopts a sleeve-type hydrostatic spindle system with high rotational accuracy and rigidity, ensuring precise grinding operations.
3:Advanced Guideway Design: The feed guideways use plastic-coated rails, enhancing the smoothness and vibration resistance during slow-speed operations, ensuring stability and machining accuracy.
4:Automated Control: The MGB model is equipped with a programmable logic controller (PLC) to control various grinding functions and operation sequences, allowing for semi-automatic machining and improved production efficiency.
5:Efficient Measurement System: The machine can be equipped with a distance control or automatic measuring device to achieve semi-automatic plunge or longitudinal grinding, ensuring reliable and precise processing cycles.
Applications

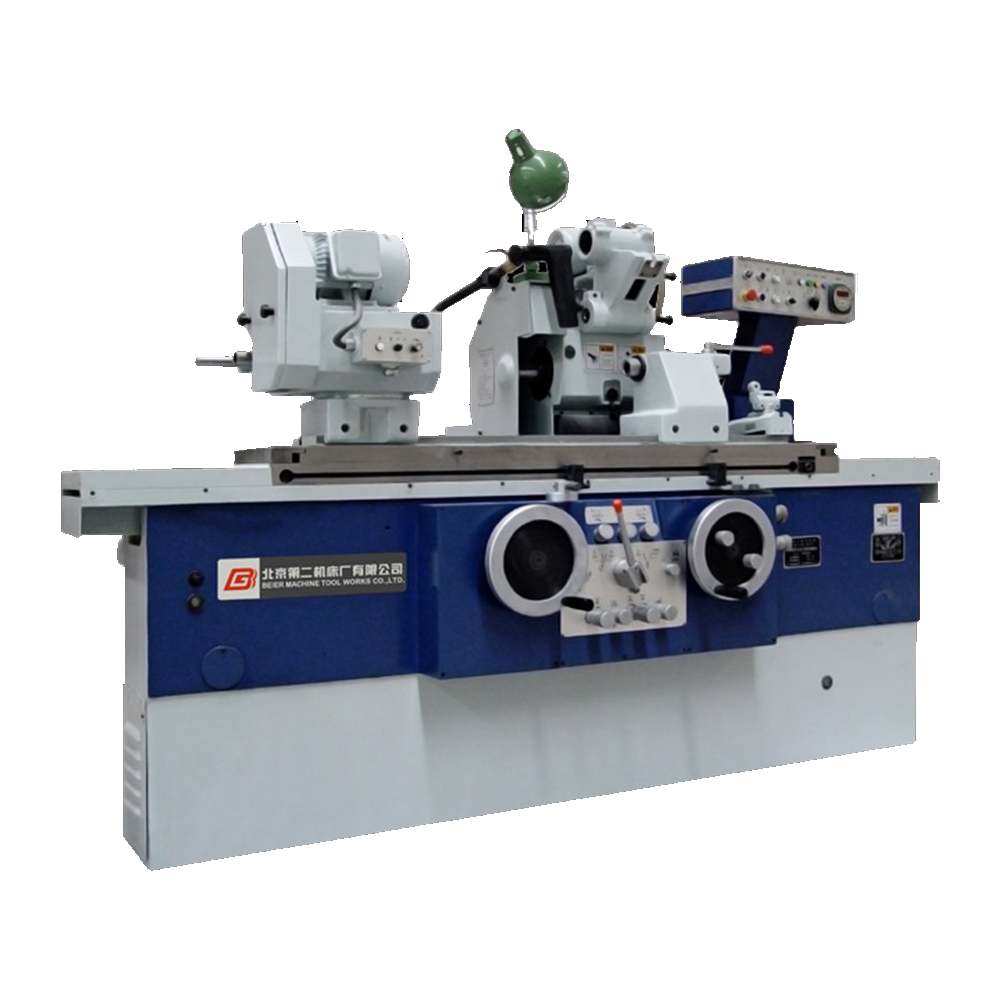

The MGB1320E High-Precision Cylindrical Grinding Machine is widely used in industries requiring high-precision parts manufacturing, such as aerospace, military equipment, precision instruments, and high-end mechanical processing. It is particularly suitable for medium and small batch production, delivering high-precision external cylindrical grinding tasks efficiently and reliably.
