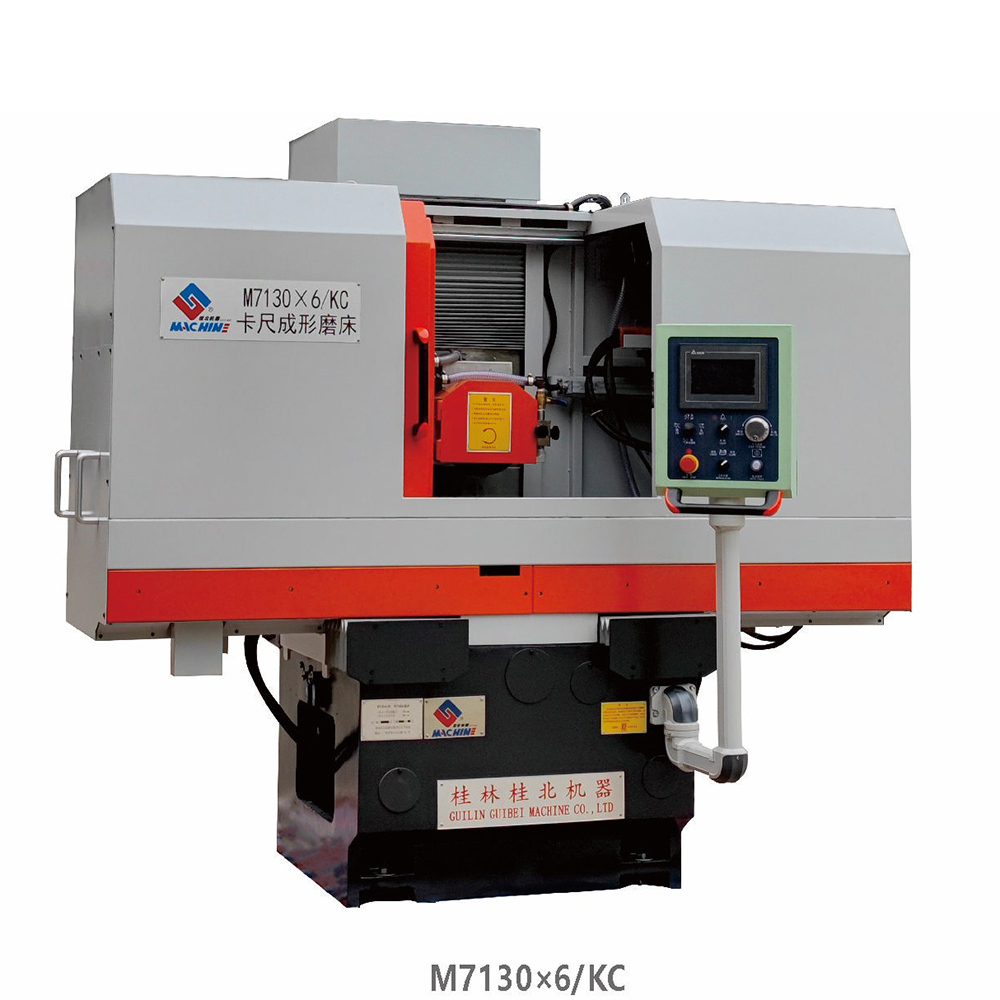

M7130×6KC PLC Caliper Forming Grinding Machine

Good consistency in dimensional accuracy and high grinding efficiency, suitable for batch shaping and grinding of the outer measuring surface of Vernier calipers, the circular arc of the inner card and the fixed tool surface of the outer card of the ruler frame.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Specifications

Main Specifications		Unit	M7130x6/KC MK7130×6/KC
Size oftable working surface(W×L)		mm	300×600
Max.size of workpiece to be ground (W×L×H)		mm	300×600×400
Longitudinal movement stroke of workpiece		mm	100~700
Distance spindle centre to table		mm	175～575
Table longitudinal movingspeed (Stepless)		m/min	3~25
Max.Allowable weight of workpiece		kg	280
Motor power		KW	5.5
Wheel size (0.D×W×1.D)		mm	φ250×40×φ75
Wheel speed		r/min	1460
Vertical movement distance		mm	400
Vertical rapid liftingspeed		mm/min	300
Min.vertical feed		mn	0.005
Lateral movement distance		mm	310
Lateral feed Continuous Intermittent		m/min mm	0.1~2 1~15
Electrical equipmenttotal capacity		kVA	14
Overall dimensions(L×W×H)		mm	2700×2100×2450
Working Accuracy	Workpiece thickness	mm	0.005/300
	Surface roughness	um	≤Ra0.63
N.W		kg	3100
