Product Specifications
| Main Specifications | Unit | GM-MMC2212 GM-MIMK2212 | GM-MMC2512 GM-MMK2512 | GM-MMC3012 GM-MIMK3012 |
| Size of tableworking surface(L×W) | mm | 2200×1200 | 2500×1200 | 3000×1200 |
| Max.size of workpieceto be ground (L×W×H) | mm | 2200×1200×630 | 2500×1200×630 | 3000x1200×630 |
| Longitudinal stroke of table | mm | 2300 | 2600 | 3100 |
| Distance between gantry columns | mm | 1560 | ||
| Longitudinalmovement speed(Hydraulic stepless) | m/min | 5~25 | ||
| Max.tableload capacity(Including electromagnetic chuck) | kg | 4300 | 4900 | 5800 |
| Motor power of ginding head | KW | 15 | ||
| Wheel size (0.D×W×1.D) | mm | φ500×75×φ203 | ||
| Vertical movement distance | mm | 680 | ||
| Rapid feed speed | mm/min | 400 | ||
| Min.vertical feed | mm | 0.005 | ||
| Horizontal movement distance | mm | 1300 | ||
| Working surface to base level parallelism | mm | 0.006/1000 | ||
| Surface roughness | um | Ra0.16 | ||
| Electricalequipment total capacity | kVA | 39 | 44 | |
| Overall dimensions (L×W×H) | mm | 7500×3500×4000 | 9000×3500×4000 | 9000×3500×4000 |
| N.W | Kg | 20000 | 25000 | 26000 |
Products Features
2: The bed is a double-V structure, and the crossbeam adopts the hard rail process with steel inlay guide, which makes it work with high precision, rigidity and durability.
3: Adopting dynamic and static pressure spindle, with good grinding surface quality.
4: The guide rail is automatically and centrally lubricated to effectively prevent strain due to oil loss.
5: Equipped with grinding wheel automatic dresser, easy to operate and greatly improved efficiency.
6: With oil-cooled hydraulic station, effectively prevent the machine from micro-heat deformation due to high oil temperature.
7: Adopting closed cooling water circulation tank structure, which makes the production site clean.

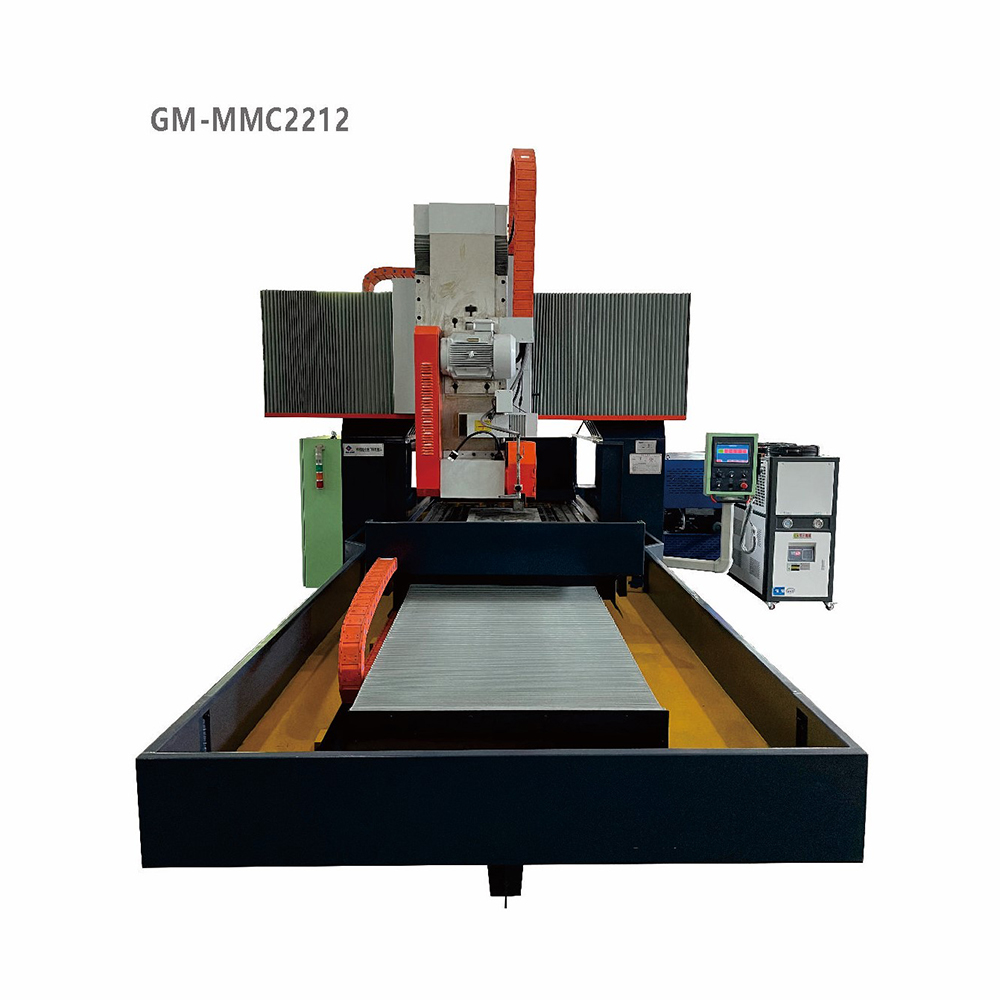

Products Pictures
