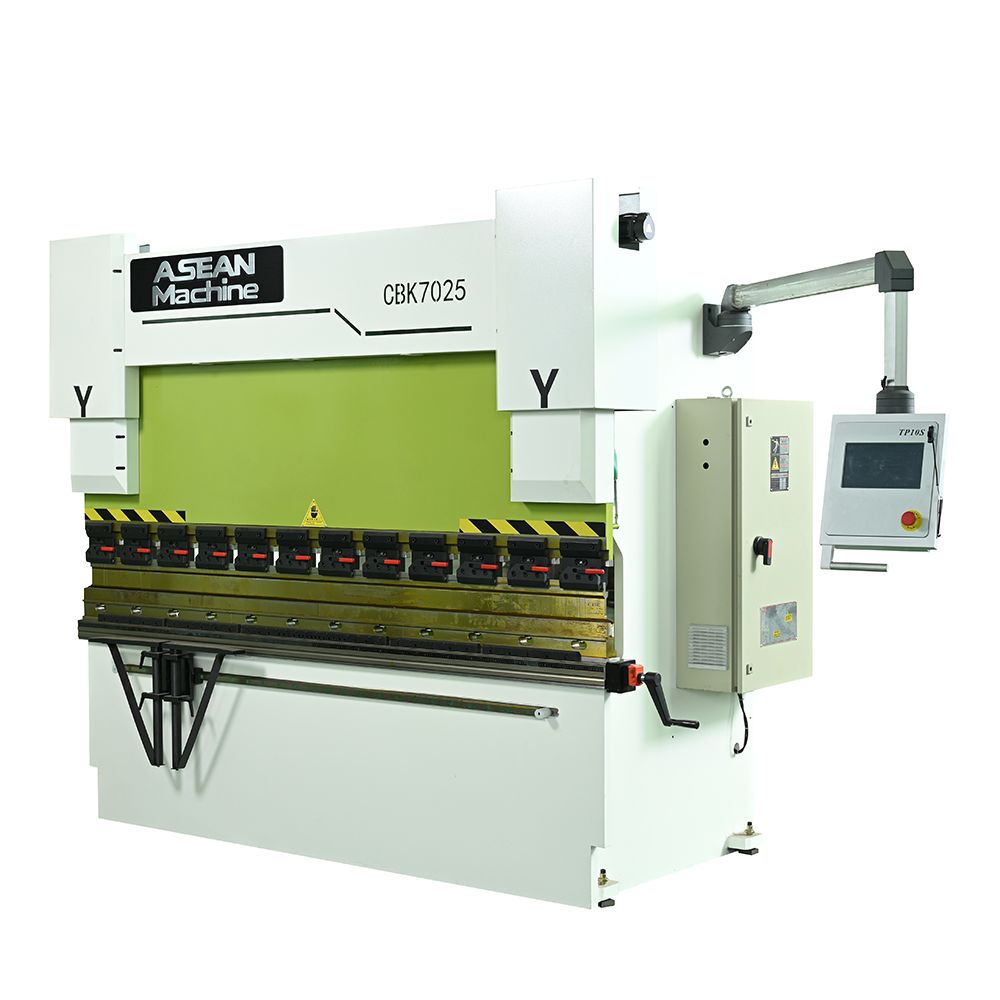

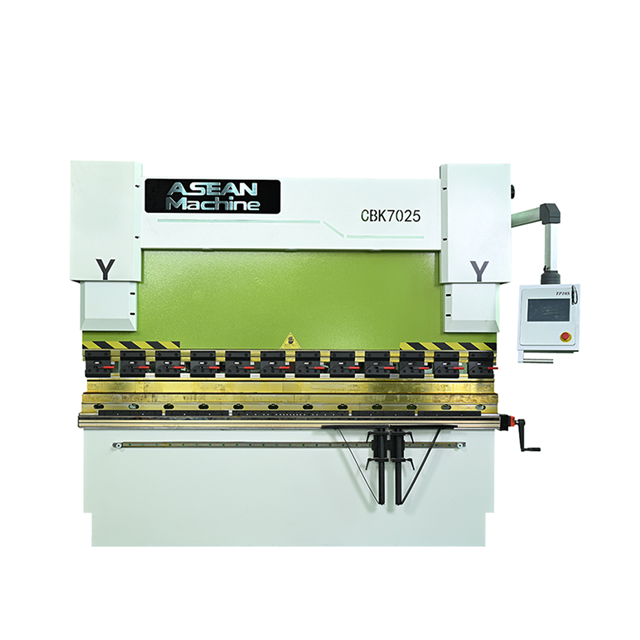

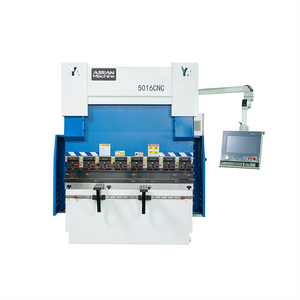

Hydraulic Plate CNC Press Brake Machine

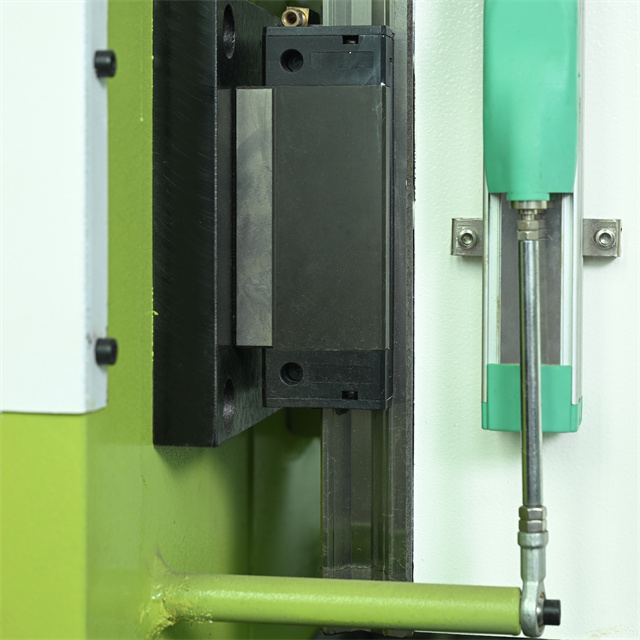

All steel welded structure is adopted to eliminate stress by vibration, and the whole machine is ground boring and milling Gear rack synchronization, stable and reliable. The rear retaining adopts ball screw and linear guide rail, which has high speed and effectively improves the machining accuracy and speed.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Specifications

Nominal Force(KN)	Worktable Length (mm)	Poles Distance (mm)	Throat Depth (mm)	Slider Travel (mm)	Max Open (mm)	Power (kw)	Dimension LxWxH(mm)
300	1600	1250	200	80	285	3	1600×1000×1600
400	2200	1850	230	100	320	5.5	2200×1200×1910
400	2500	2150	230	100	320	5.5	2500×1200×1910
500	2500	2150	230	100	20	5.5	2500×1200×2000
630	2500	2150	250	100	320	5.5	2500×1300×2210
630	3200	2600	250	100	320	5.5	3200×1300×2210
800	2500	1900	300	100	320	7.5	2500×1400×2300
800	3200	2600	320	100	350	7.5	3200×1500×2300
800	4000	3200	320	100	50	7.5	4000×1500×2400
1000	2500	2000	320	120	20	7.5	2500×1600×2400
1000	3200	2600	320	120	70	7.5	3200×1600×2600
1000	4000	3200	320	120	370	7.5	4000×1600×2700
1250	3200	2500	320	120	370	7.5	3200×1600×2600
1250	4000	3000	320	120	370	7.5	4000×1600×2700
1600	3200	2500	320	200	460	11	3200×1700×2700
1600	4000	3200	320	200	460	11	4000×1700×2800
1600	5000	4000	320			11	5000×1900×3100
1600	6000	4940	320	200		11	6000×1900×3200
2000	3200	2500	320	200		11	3200×1950×2800
2000	4000	3000	320	200	460	11	4000×1950×2800
2000	5000	4000	320	200	460	11	5000×1950×3000
2000	6000	5000	320	200		11	5000×1950×3300
2500	3200	2500	400	250	59	18.5	3200×2000×3200
2500	4000	3000	400	250	590	18.5	4000×2000×3400
2500	5000	4000		250	590	18.5	5000×2000×3400
2500	6000	5000	400	250	590	18.5	6000×2000×3400
3000	3200	2530	400	250	590	22	3200×2000×3450
3000	4000	3000	400	250	590	22	4000×2000×3450
3000	5000	4000	400	250	590	22	5000×2000×3450
3000	6000	5000	400	250	590		6000×2000×3450
4000	4000	3000	400	250	590	30	4000×2180×3400
4000	5000	4000	400	250	590	30	5000×2180×3500
4000	6000	5000	400	250	590	30	6000×2180×3800
5000	5000	4000	400	250	590	45	5050×3500×3700
5000	6000	5000	400	320	590	45	5050×3500×3700
6000	4000	3000	400	320	590	55	4050×4500×3700
6000	6000	5000	400	320	590	55	6050×4500×3700
8000	6000	5000	400	320	590	55	6300×4500×6000

Core Configuration

Seryo Motor/C-type Throat Deformation Compensation Device/Mold Quick Clamp/Schneider Electric Components/Back Gauge Finger/Brand Hydraulic Valve Group/Siemens Motor & Sunny Oil Pump/Gear Rack Synchronous Structure/lmported brand ball screw and linear guide

Optional Configuration

Manual Mechanical Compensation/Electric Mechanical Compensation/Light Curtain Protection

/Punch & Die

Machine Features

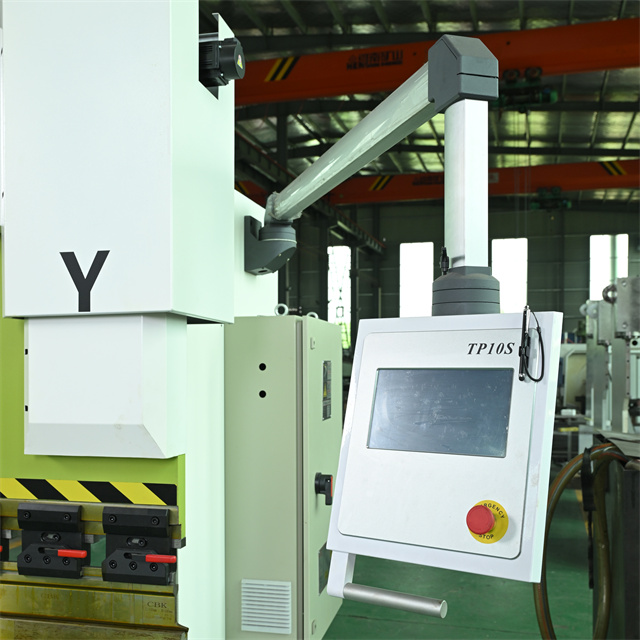

1: CNC System: New function combination and perfect programming can improve the efficiency of batch multi-step bending.

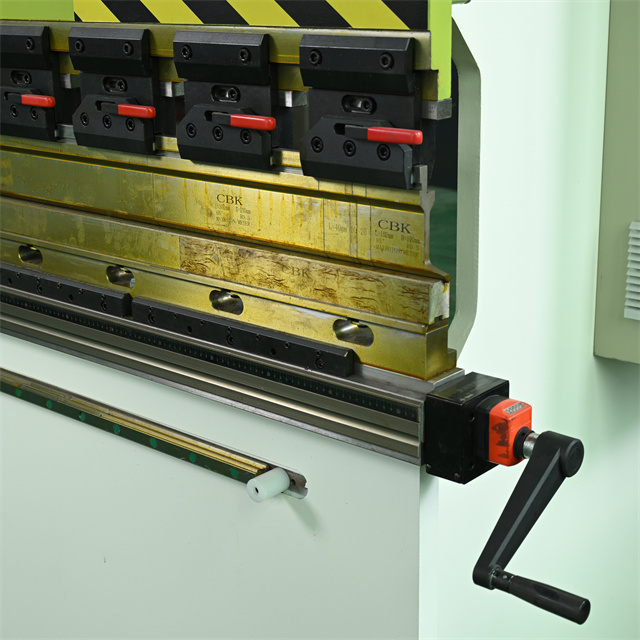

2: Fast Clamp: The standard equipped fast clamp will help you replace the top punch in very short time. convenient and time-saving.

3: Moveable Front Support System: Moving along the linear guide rail, you can stop at any position to assist your bending work.
