| Quantity: | |
|---|---|
| Laser type | fiber-optic laser |
| Laser working medium | YVO4 |
| Laser wavelength | 1170 nm |
| X-axis travel | 4000mm |
| Y-axis travel | 1500mm |
| Z-axis travel | 120mm |
| Effective cutting range | 4000×1500mm |
| Workbench axial positioning accuracy | ≤±0.03㎜/m |
| Workbench repeat positioning accuracy | ≤±0.03㎜/m |
| Maximum positioning speed | 120m/min |
| Workbench maximum load | ≥1000kg |
| Number of phases | 3 |
| Power supply rated voltage | 380V3 |
| Frequency | 50Hz |
| Total power supply protection level | IP54 |
| Machine weight (KG) | 4000KG |
| Maximum cutting thickness | Carbon steel 12mm |
| Stainless steel 6mm | |
| Aluminum alloy 3mm | |
| Brass 3mm |
Products Features
1: Brand laser cutting head is adopted, and the output quality of optical fiber is stable,
the pull-out lens device is easy to replace and instal.
2: Adopt Taiwan HlWlN brand guide rail and gear rack, high-precision transmission;
precision grade DlN5 and GB4.
3: Aviation aluminum casting beam, multiple slider transmission,fast speed, high positioning accuracy
4: Choose high-quality brand electrical appliances such as Schneider,which has a longer service life.
Installation and use environment description
1. Fiber laser environment requirements: temperature between 15-35℃, relative humidity below 85%.
2. On-site power distribution cabinet: 380V, 50Hz, three-phase four-wire, with short-circuit protection, etc.
3. The equipment should be installed with dedicated grounding, and its grounding resistance should not exceed 4Ω.
4. Provide necessary lifting equipment and personnel.
5. Provide materials required for on-site equipment commissioning, such as steel plates.
6. Provide temporary access permits for commissioning personnel.
7. Auxiliary conditions required for normal operation of laser cutting equipment:
(1) Cutting auxiliary gas (N2, O2);
(2) Water-free and oil-free compressed air supply system.
8. Equipment space and foundation requirements: The foundation is concrete with a minimum thickness of 300 mm; there is no seismic source or shock-absorbing groove around the foundation.

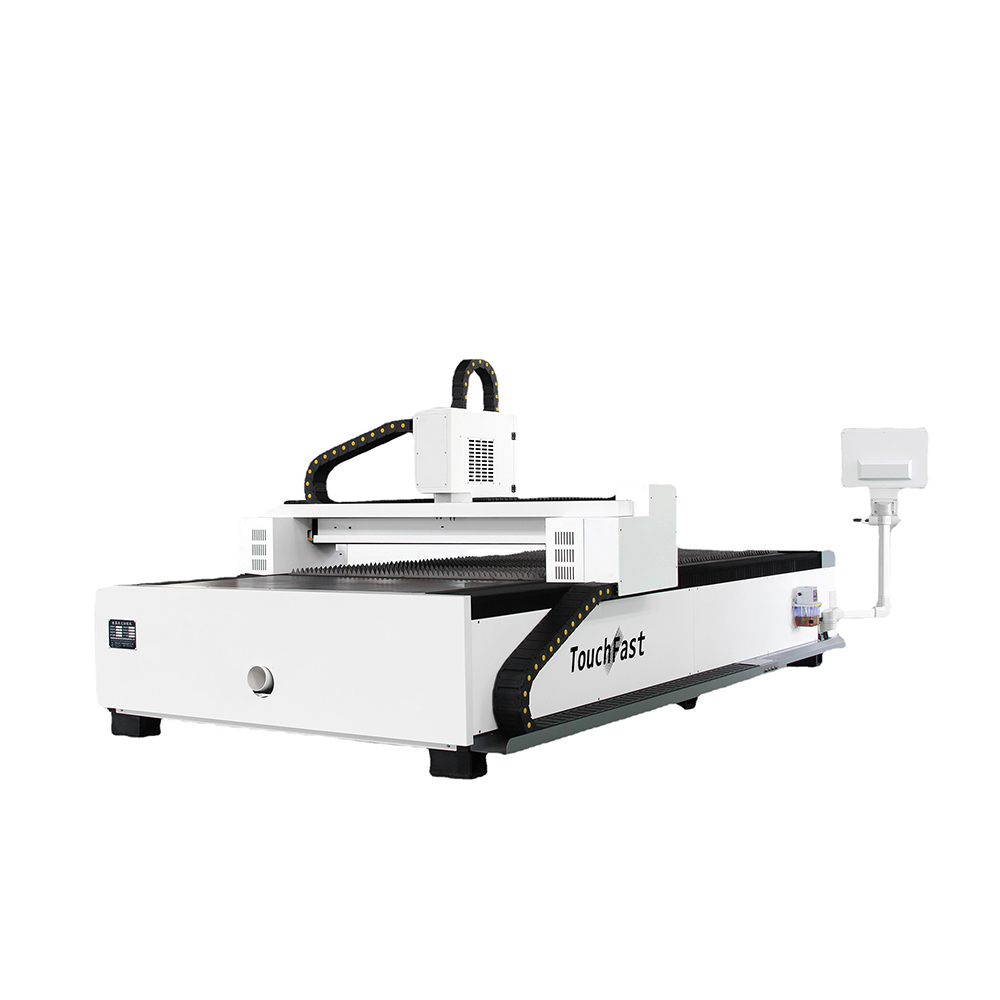

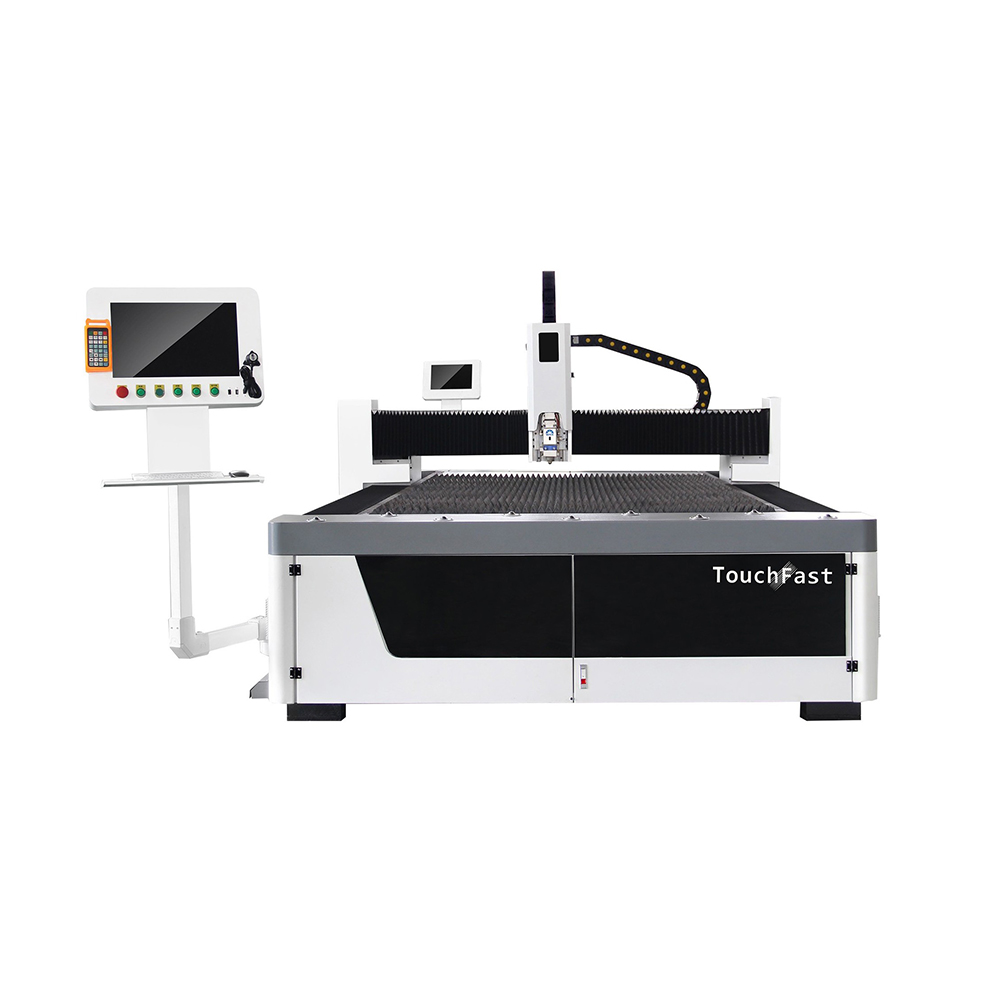

Products Pictures
