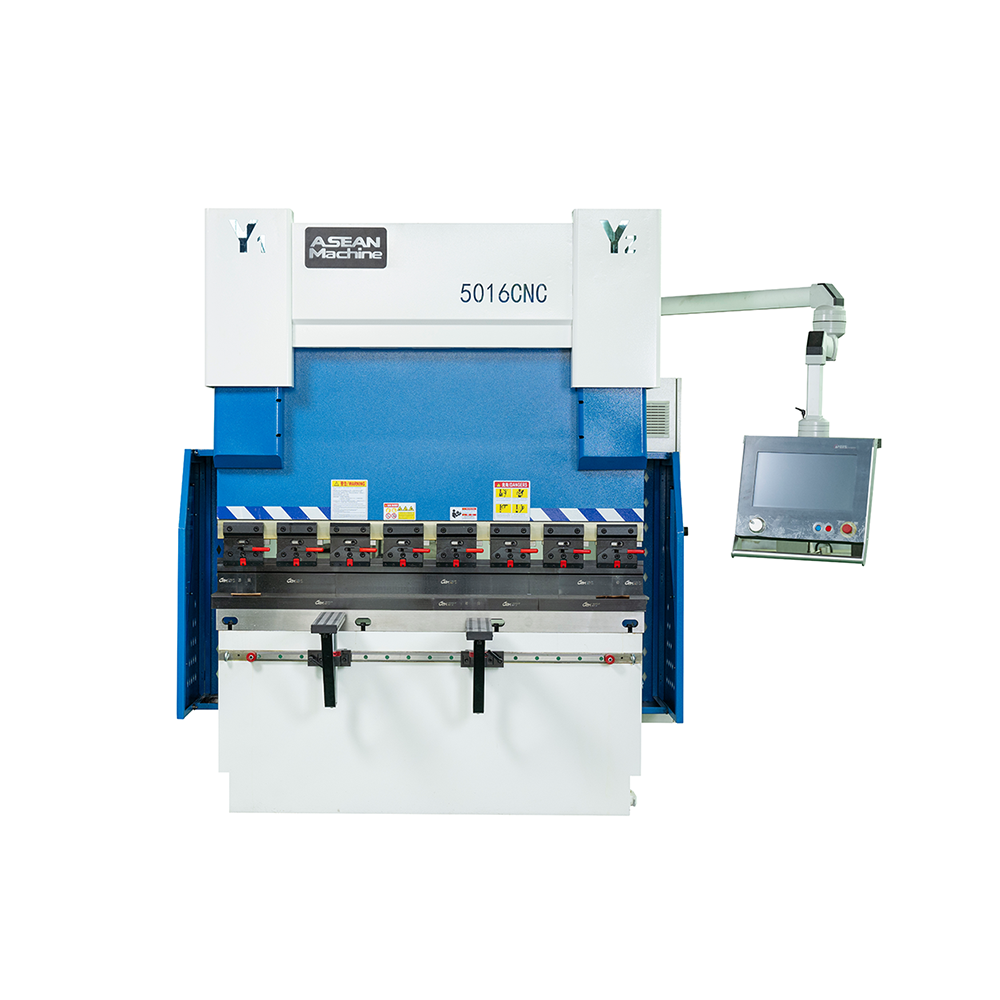

Electric Hydraulic Servo CNC Press Brake Machine

Imported configuration, stable and reliable.
High strength frame with thick plate and sufficient material.
High precision rear retaining system
Standard 4 + 1 axis NC (Y1, Y2, x R + W)Automatic Hydraulic crowning system.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Specification

Die Setting Heigh(mm)	Main Power(kw)	Oil Volume(L)	Speeds(mm/s)			Dimensions(mm)			Weight(KG)
Die Setting Heigh(mm)	Main Power(kw)	Oil Volume(L)	Approaching Speeds	Working Speeds	Returning Speeds	Length	Width	Height	Weight(KG)
540	5.5	160	230	0-15	140	2200	1450	2155	3700
570	7.5	225	230	0-15	140	3220	1780	2650	5800
570	7.5	225	220	0-15	140	3240	1780	2680	7800
570	7.5	350	220	0-15	140	4030	1780	2680	8000
570	7.5	350	220	0-15	140	4830	1780	2780	10000
570	11	350	200	0-15	140	4030	1790	2750	8800
570	11	430	200	0-15	140	4830	1790	2850	9800
570	11	550	180	0-15	90	5830	1790	3100	15200
570	11	550	180	0-15	90	6830	1790	3200	17700
570	11	225	200	0-15	140	3350	1800	2730	8700
570	11	350	200	0-15	140	4050	1800	2730	9800
570	11	430	200	0-15	140	4700	1800	2830	12100
570		550	160	0-15	90	5700	1800	3080	17000
570	11	550	160	0-15	90	6700	1800	3180	20000
570	15	350	160	0-13	140	1020	1850	2850	11500
570	15	430	160	0-13	140	4820	1850	3100	13800
570	15	550	130	0-13	90	5820	1850	3250	18200
570	15	550	130	0-13	90	6820	1850	3350	21000
570	18.5	350	130	0-13	110	4050	1860	3000	14000
570	18.5	430	130	0-13	110	4850	1860	3100	16000
570	18.5	550	120	0-13	80	5850	1860	3250	21200
570	18.5	550	120	0-13	80	6850	1860	3350	24600
600	22	460	100	0-13	90	4600	2260	3400	17700
600	22	460	100	0-13	90	5400	2260	3500	20300
600	22	550	90	0-13	90	6430	2260	3680	26100
600	22	550	90	0-13	90	7430	2260	3850	30400

Core Configuration

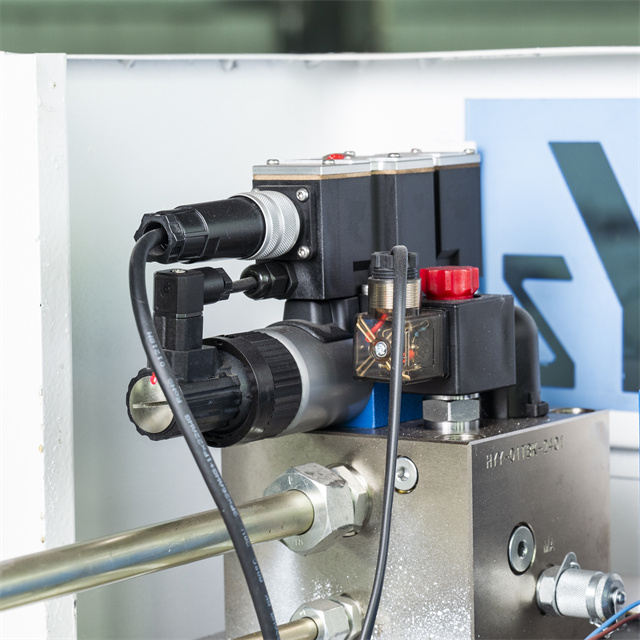

Quality brand oil cylinder/C-type Throat Deformation Compensation Device/Mold Quick Clamp/Schneider Electric Components/Back Gauge Finger/Brand Hydraulic Valve Group/Siemens Motor & Sunny Oil Pump/Higher Quality Press Brake Tooling/Stable and Reliable Back gauge

Optional Configuration

Main Servo(Energy saving)/Laser Safety Protection/Movable Finger/Optical Safety Guards

Products Features

1: CBK ET15 CNC System: Efficient and accurate bending instructions support multiple bending settings, multiple languages, and better user experience.

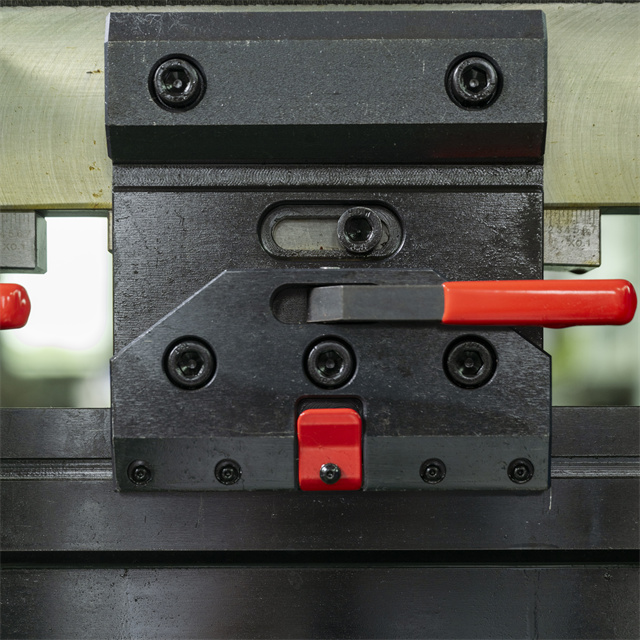

2: Fast Clamp: The standard equipped fast clamp will help you replace the top punch in very short time. convenient and time-saving.

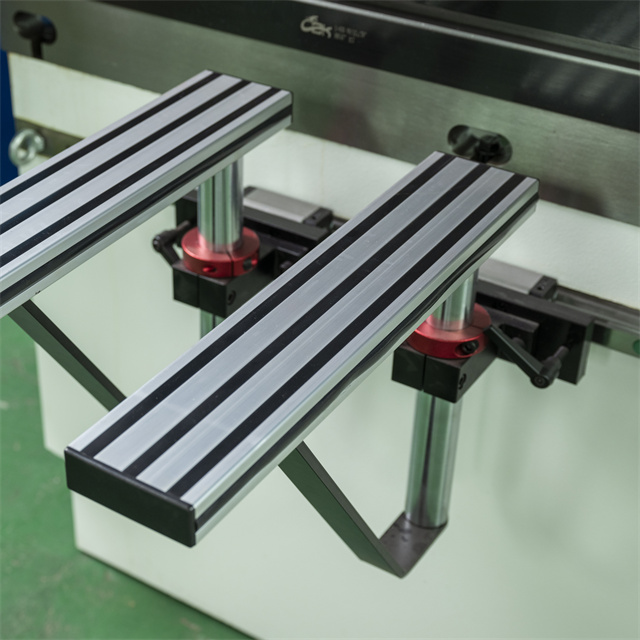

3: Moveable Front Support System: Moving along the linear guide rail, you can stop at any position to assist your bending work.

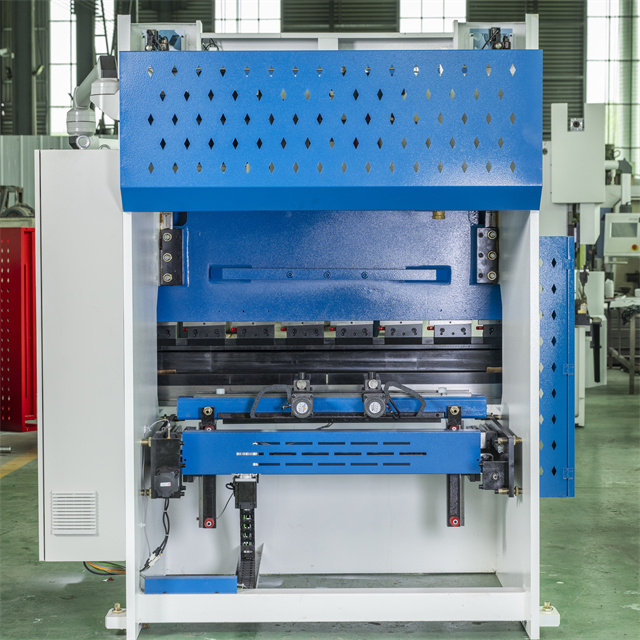

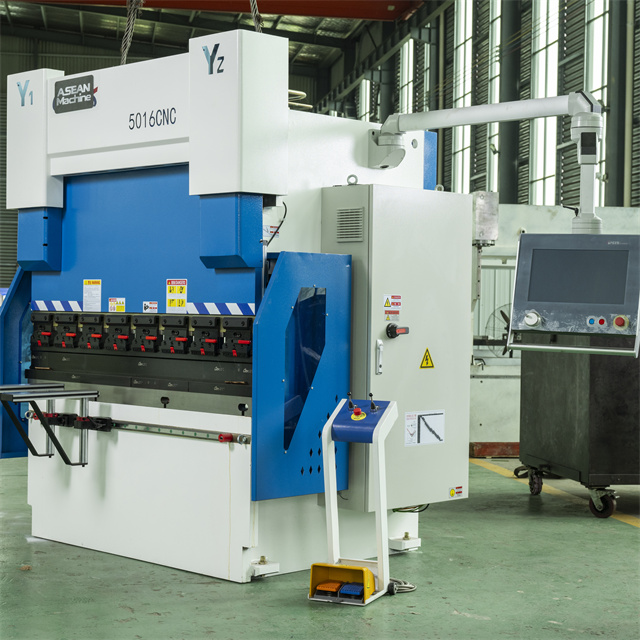

Products Pictures
