Product Specifications
| Main Specifications | Unit | XTK2010A | XTK2010/10G | XTK3010 | XTK3010/15G |
| Size of table working surface (W×L) | mm | 1000×2000 | 1000×3000 | ||
| Max.size of workpiece to be ground (L×H) | mm | 2000×800 | 2000×1000 | 3000×1000 | 3000×1500 |
| Column longitudinal trave | mm | 2100 | 3100 | ||
| Vertical travel of spindle housing | mm | 8000 | 1000 | 1000 | 1500 |
| Transverse travel of spindle housing | mm | 300 | |||
| Max.diameter of drilling hole | mm | φ60 | |||
| Spindle taper hole | / | BT50 | |||
| Step of the spindle speed | / | 66,90,122,182,240,330,442,660 | |||
| Feed speed Longitudinal(Axis-X) Vertical(Axis-Y) Transverse(AxisZ) | mm/min stepless | 20～3000 20～2500 20~1250 | |||
| Main motor power | KW | 11 | |||
| Squareness of workpiece to table surface | mm | 0.03/100 | |||
| Diameter dimension tolerance among boring holes | mm | 0.035/300 | |||
| Overall dimensions (L×W×H) | mm | 5800×2580×2750 | 5900×2300×3000 | 6800×2300×3000 | 6800×2300×3020 |
| N.W | Kg | 12000 | 12500 | 13450 | 14000 |
Machine Features
1: Longitudinal movement of column and floor fixed structure layout of table, with strong workpiece carrying capacity and small floor space. The longitudinal, vertical and lateral movements are driven by AC servo motors with precision ball screw sub-drives, resulting in high positioning accuracy. The sliding guideway is adopted in each direction of movement and the soft tape of Teflon guideway is pasted, with good rigidity and low friction coefficient.
2: The spindle adopts imported high-precision spindle bearings, with high precision and easy loading and unloading of knives.
3: Automatic lubrication system, lubrication of each moving part is realized by the automatic lubrication pump with programmable controller.
4: The machine runs smoothly, reliable performance, high efficiency and easy to operate.

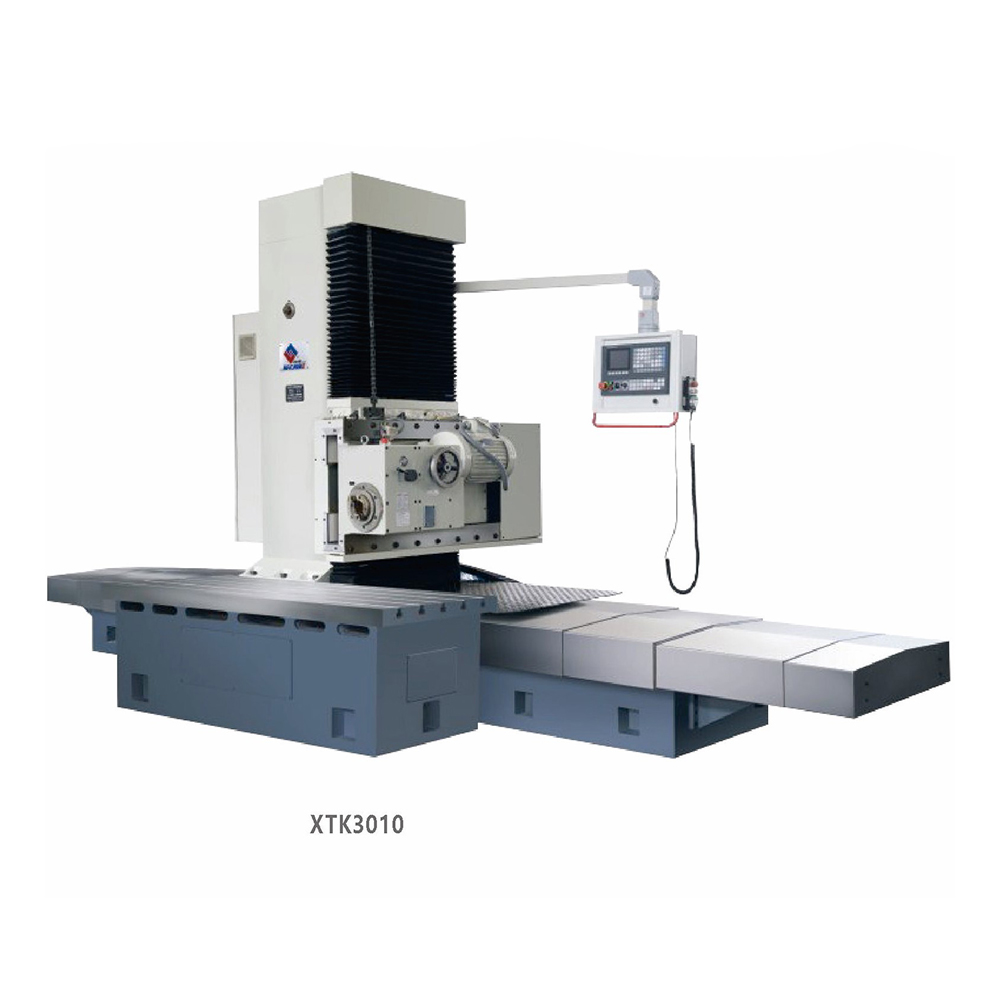

Products Pictures
